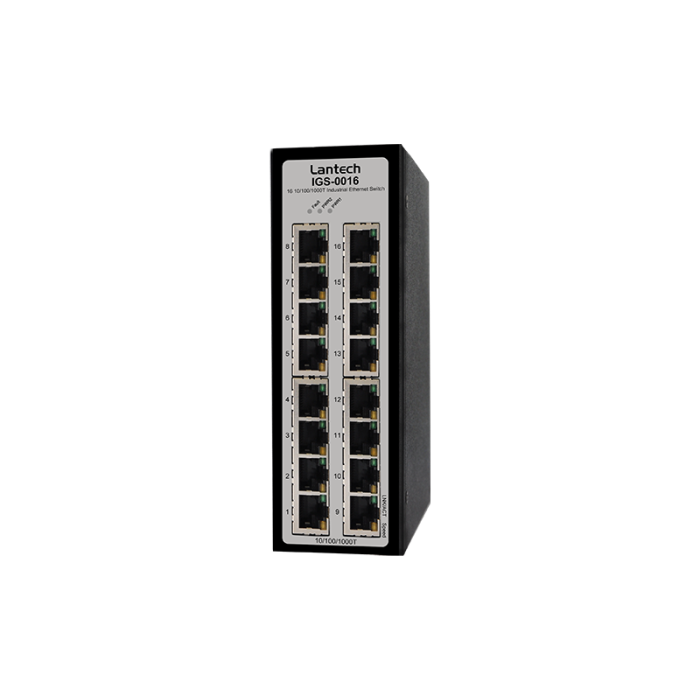

IGS-0016 Industrial Unmanaged Ethernet Switch
16 10/100/1000T Industrial Unmanaged Ethernet Switch; Dual 9V~36V input
Key Features:
- ISO7637-2 compliance
- E-marking certificate for vehicle application (-24V model)
- Galvanic isolation protection for dual input.
- Relay alarm output for power fail and alarm
- IP30 metal housing with DIN rail and Wall-mount** design
- Provides EFT and ESD protection
Description
The Lantech IGS-0016 is a high performance 16 10/100/1000TX industrial Ethernet switch. It provides ±2000V EFT and ±6000V ESD protection, which can reduce unstable situation caused by power line and Ethernet. It has high reliability and robustness coping with extensive EMI/RFI phenomenon, environmental vibration and shocks usually found in Automation, transportation, Wireless backhaul, Semi-conductor factory and assembly lines. The IGS-0016-24V accepts power input 9~36VDC and is compliant with ISO 7637-2 which protects switch from being damaged by high voltage that could be found at vehicle cranky start. Additionally, the E-marking certificate for the -24V model makes it the most suitable switch for bus, carriage, other vehicles application as well as for industrial areas and can be used in extreme environments with an operating temperature range of -40°C to 75°C.
Other Notable Features
- Dual 9V~36VDC input compliant with ISO 7637-2
- Galvanic isolation to shield from transients
- Relay alarm output for power fail and alarm
- Back-plane (Switching Fabric): 32Gbps
- IP30 metal housing with DIN rail and Wall-mount** design
Download
More Information
| Brand | Lantech | ||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specifications |
Hardware Specifications
|
Ordering Information
ORDERING INFORMATION
|
P/N |
Model name |
Description |
|---|---|---|
8351-122 |
IGS-0016-24V | 16 10/100/1000T Industrial Ethernet Switch, dual 9V~36VDC input; compliant with ISO7637-2; -20°C to 60°C |
| 8351-123 |
IGS-0016-24V-E | 16 10/100/1000T Industrial Ethernet Switch, dual 9V~36VDC input; compliant with ISO7637-2; -40°C to 75°C |
OPTIONAL ACCESSORIES - DIN Rail Power
|
Model name |
Description |
|---|---|
| MDR-40 Series | 40W Single Output Industrial Din Rail Power; 85-264VAC / 120-370VDC Input Range; Cooling by free air convection; RoHS2 ; Operating Temp. -20°C~70°C (ambient, derating each output at 4% per degree from 60°C ~ 70°C) |
| MDR-20 Series | 20W Single Output Industrial Din Rail Power; 85-264VAC / 120-370VDC Input Range; Cooling by free air convection; RoHS2 ; Operating Temp. -20°C~70°C (ambient, derating each output at 2.5% per degree from 50°C ~ 70°C) |
