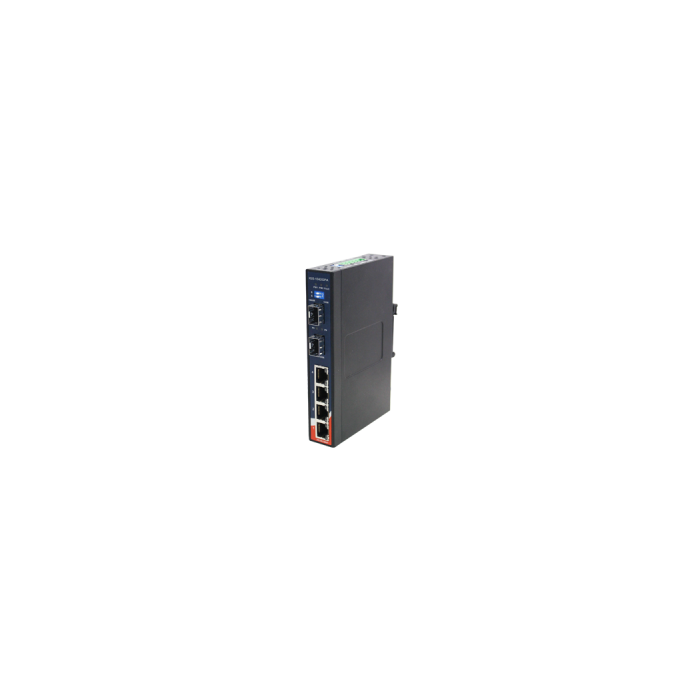

IGS-1042GPA

10/100/1000Base-T(X) Ports in RJ45 Auto MDI/MDIX

100/1000Base-X SFP port

IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX
IEEE 802.3ab for 1000Base-T
IEEE 802.3z for 1000Base-X
IEEE 802.3x for Flow control

Power indicator

Green : Power LED x 2

Amber : Indicates PWR1 or PWR2 failure occurred

10/100/1000Base-T(X) RJ45 port indicator

Green for port Link/Act
Amber for 100Mbps indicator

100/1000Base-X SFP port indicator (P5 ~ P6)

Green for port Link/Act.

DIP-Switch 1/2

DIP-Switch 1 (ON) and DIP-Switch 2 (ON) : SFP speed setting to 100Mbps
DIP-Switch 1 (OFF) and DIP-Switch 2 (OFF) : SFP speed setting to 1000Mbps

DIP-Switch 1

Power-1 failed warning : (ON) enable, (OFF) disable

DIP-Switch 2

Power-2 failed warning : (ON) enable, (OFF) disable

Relay output to carry capacity of 1A at 24VDC

Dual DC inputs. 12~48VDC on 6-pin terminal block.

6.4 Watts

Overload current protection

Reverse polarity protection

Present

26.1 (W) x 94.9 (D) x 144.3(H) mm (1.03 x 3.74 x 5.68 inches)

410 g

-40 to 85°C (-40 to 185°F)

-40 to 70°C (-40 to 158°F)

5% to 95% Non-condensing

FCC Part 15, CISPR (EN55022) class A

IEC61000-4-2 (ESD), IEC61000-4-3 (RS), IEC61000-4-4 (EFT), IEC61000-4-5 (Surge), IEC61000-4-6 (CS), IEC61000-4-8, IEC61000-4-11

IEC60068-2-27

IEC60068-2-32

IEC60068-2-6

EN60950-1
