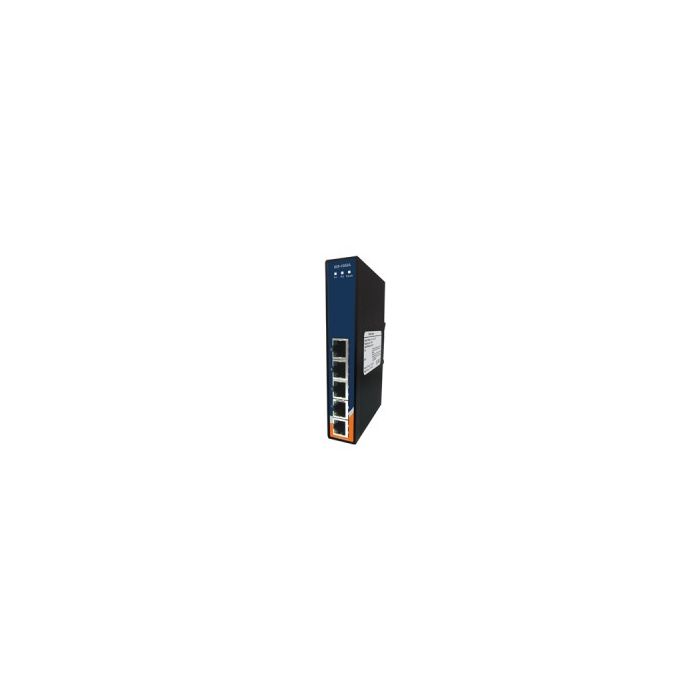

IGS-1050A - 5 x GbE Unmanaged Switch

In stock
SKU:
IGS-1050A
Brand: ORing

Industrial Slim Type 5-Port Unmanaged Gigabit Ethernet Switch


Enquire Now
Enquire about this product:

• Each unit supports 5 x 10/100/1000Base-T(X) ports or 4 x 10/100/1000Base-T(X) and 1 x 1000Base-X SFP ports
• Support Jumbo Frame up to 9K Bytes
• Hardware DIP switch to enable/disable warning function
• Rigid IP-30 slim type housing design
• DIN-Rail and wall mounting enabled
• Relay output to carry capacity of 1A at 24 VDC


This product is listed in Industrial Automation, Mining, Transport, ORing, Ethernet Switches
Physical Ports
10/100/1000Base-T(X) Ports in RJ45 Auto MDI/MDIX 5
Technology
Ethernet Standards IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX
IEEE 802.3z for 1000Base-X
IEEE 802.3ab for 1000Base-T
IEEE 802.3x for Flow control
MAC Table 1024 MAC addresses
Processing Store-and-Forward
Jumbo Frame 9K
LED Indicators
Power Indicator Green : Power LED x 2
Fault Indicator Amber : Indicates PWR1 or PWR2 failure occurred
10/100/1000Base-T(X) RJ45 Port Indicator Green for port Link / Act
Amber for 100Mbps indicator
Fault Contact
Relay Relay output to carry capacity of 1A at 24VDC
Power
Redundant Input Power Dual DC inputs. 12~48 VDC on 6-pin terminal block
Power Consumption (Typ.) 5.5 Watts
Overload Current Protection Present
Reverse Polarity Protection Present
Physical Characteristics
Enclosure IP-30
Dimensions (W x D x H) 26.1(W) x 94.9(D) x 144.3(H) mm ( 1.03x3.74x5.68 inch.)
Weight (g) 420g
Environmental
Storage Temperature -40 to 85°C (-40 to 185°F)
Operating Temperature -40 to 70°C (-40 to 158°F)
Operating Humidity 5% to 95% Non-condensing
Regulatory Approvals
EMI FCC Part 15, CISPR (EN55022) class A
EMS IEC61000-4-2 (ESD), IEC61000-4-3 (RS), IEC61000-4-4 (EFT), IEC61000-4-5 (Surge), IEC61000-4-6 (CS), IEC61000-4-8, IEC61000-4-11
Shock IEC60068-2-27
Free Fall IEC60068-2-32
Vibration IEC60068-2-6
Safety EN60950-1
Warranty 5 years
