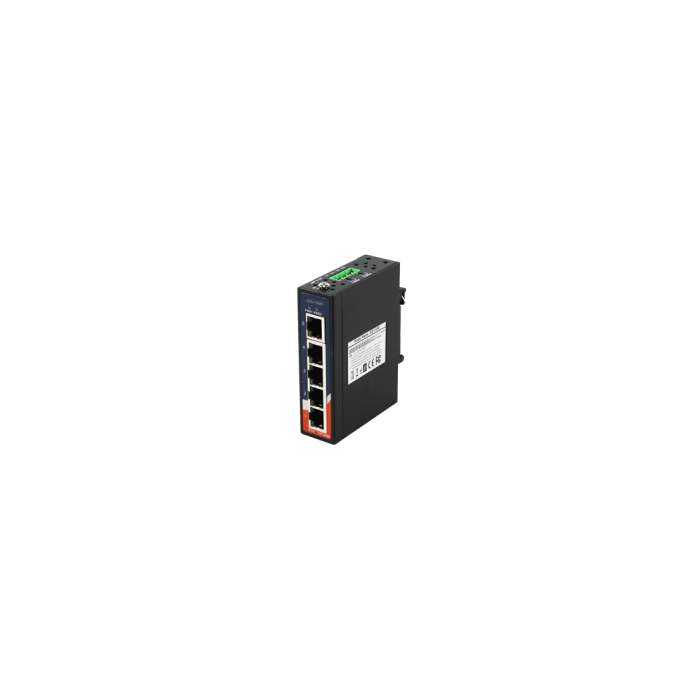

IGS-150B 5-port unmanaged Gigabit Ethernet switch
IGS-150B 5-port unmanaged Gigabit Ethernet switch
Industrial 5-port mini type unmanaged Gigabit Ethernet switch with 5x10/100/1000Base-T(X)
More Information
|
Specifications |
| Physical Ports |
|
| 10/100/1000Base-T(X) Ports in RJ45 Auto MDI/MDIX |
5 |
| Technology |
|
| Ethernet Standards |
IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX
IEEE 802.3ab for 1000Base-T
IEEE 802.3x for Flow control |
| MAC Table |
4K |
| Packet buffer |
128K bytes |
| Processing |
Store-and-Forward |
| Jumbo Frame |
9720 bytes |
| Switch Properties |
Switching latency: 7 us
Switching bandwidth: 10Gbps
Throughput (packet per second) : 7.24Mpps@64Bytes packet |
| LED Indicators |
|
| Power Indicator |
Green : Power LED x 2 |
| 10/100/1000Base-T(X) RJ45 Port Indicator |
Up Green LED for Link/Act indicator
Lower LED for speed indicator: Green for 1Gbps, Amber for 100Mbps, Off-light for 10Mbps
|
| Power |
|
| Redundant Input Power |
Dual 12~48VDC on 4-pin terminal block. |
| Power Consumption (Typ.) |
<4.4Watts, 0.29-0.09A |
| Overload Current Protection |
Present |
| Reverse Polarity Protection |
Present |
| Physical Characteristics |
|
| Enclosure |
IP-30 |
| Dimensions (W x D x H) |
26.1 (W) x 70 (D) x 95(H) mm (1.03 x 2.76 x 3.74 inch) |
| Weight (g) |
222 g |
| Hardware Version |
1.0 |
| Environmental |
|
| Storage Temperature |
-40 to 85°C (-40 to 185°F) |
| Operating Temperature |
-40 to 75°C (-40 to 167°F) |
| Operating Humidity |
5% to 95% Non-condensing |
| Regulatory Approvals |
|
| EMC |
CE EMC (EN 55024, EN 55032), FCC Part 15 B |
| EMI |
EN 55032, CISPR32, EN 61000-3-2, EN 61000-3-3, FCC Part 15 B class A |
| EMS |
EN 55024 (IEC/EN 61000-4-2 (ESD: Contact 4KV, Air 8KV), IEC/EN 61000-4-3 (RS: 3V),IEC/EN 61000-4-4 (EFT Power 0.5KV, Signal 0.5KV), IEC/EN 61000-4-5 (Surge: Power 0.5KV, Signal 1KV), IEC/EN 61000-4-6 (CS: 3V), IEC/EN 61000-4-8(PFMF), IEC/EN 61000-4-11 (DIP)) |
| Shock |
IEC60068-2-27 |
| Free Fall |
IEC60068-2-31 |
| Vibration |
IEC60068-2-6 |
| Safety |
EN60950-1 (LVD), UL61010-1, UL61010-2-201 |
| MTBF |
2,556,319hrs |
| Warranty |
5 years |
|
