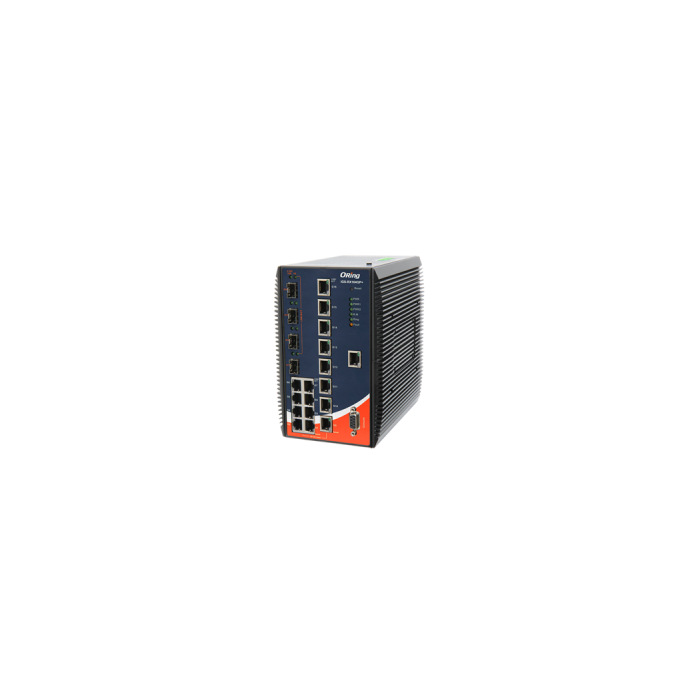

IGS-RX164GP+ - 20 port managed switch

In stock
SKU:
IGS-RX164GP+
Brand: ORing

Industrial advanced Layer 3 20-port managed Gigabit Ethernet switch


Enquire Now
Enquire about this product:
  • Support routing protocols – Static routing, RIP v1/v2, OSPF, PIM-SM, PIM-DM, VRRP
  • Support TSN freature - IEEE 802.1AS for timing & Synchronization, Qav, Qat
  • Support O-Ring(recovery time < 30ms) andMSTP(RSTP/STP compatible) for Ethernet Redundancy
  • O-Chain allow multiple redundant network rings
  • Provided HTTPS/SSH protocol to enhance network security
  • Support SNTP client
  • Support application-based QoS management
  • Support DOS/DDOS auto prevention
  • IGMP v2/v3 (IGMP snooping support) for filtering multicast traffic
  • Support SNMP v1/v2c/v3 & RMON & 802.1Q VLAN Network Management
  • Support ACL and 802.1x User Authentication for security
  • Support 10K Bytes Jumbo Frame
  • Multiple notification for warning of unexpected event
  • Web-based ,Telnet, Console (CLI), and Windows utility (Open-Vision) configuration
  • Rigid IP-30 housing design
  • DIN-Rail and wall mounting enabled

This product is listed in Industrial Automation, Mining, Transport, ORing, Ethernet Switches
Physical Ports

10/100/1000Base-T(X) Ports in RJ45 Auto MDI/MDIX

16

1G/2.5G/10GBase-X with SFP+ port

4
Technology
Ethernet Standards

IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX and 100Base-FX
IEEE 802.3ab for 1000Base-T
IEEE 802.3z for 1000Base-X
IEEE 802.3ae for 10Gigabit Ethernet
IEEE 802.3x for Flow control
IEEE 802.3ad for LACP (Link Aggregation Control Protocol)
IEEE 802.1p for COS (Class of Service)
IEEE 802.1Q for VLAN Tagging
IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol)
IEEE 802.1s for MSTP (Multiple Spanning Tree Protocol)
IEEE 802.1x for Authentication
IEEE 802.1AB for LLDP (Link Layer Discovery Protocol)

MAC Table 16k
Priority Queues 8
Packet Buffer 2MB
Flash Memory 512Mbits
DRAM Size 8Gbits
Jumbo frame Up to 10K Bytes
Processing Store-and-Forward
Switch Properties Switching latency: 7 us
Switching bandwidth: 112Gbps
Max. Number of Available VLANs: 4095
VLAN ID Range : VID 1 to 4094
IGMP multicast groups: 128 for each VLAN
Port rate limiting: User Define
Security Features

Enable/disable ports, MAC based port security
Port based network access control (802.1x)
MAC-based authentication(802.1x)
VLAN (802.1Q ) to segregate and secure network traffic
Radius centralized password management
SNMPv3 encrypted authentication and access security
Web and CLI authentication and authorization
IP source guard
Https / SSH enhance network security



Software Features

Routing protocols – static routing, RIP v1/v2, OSPF, PIM-SM, PIM-DM, VRRP
TSN protocols – 802.1AS, Qav, Qat
STP/RSTP/MSTP (IEEE 802.1D/w/s)
Redundant Ring (O-Ring) with recovery time less than 30ms
TOS/Diffserv supported
Quality of Service (802.1p) for real-time traffic
VLAN (802.1Q) with VLAN tagging
IGMP Snooping
Application-based QoS management
DOS/DDOS auto prevention
Port configuration, status, statistics, monitoring, security
Port mirroring
DHCP Server/Client/Relay
SNTP Client

Network Redundancy

O-Ring
O-Chain
MSTP/RSTP/STP

RS-232 Serial Console Port

RS-232 in RJ45 connector with console cable. 115200bps, 8, N, 1

LED Indicators

Power Indicator (PWR)

Green : Power LED x 3

Ring Master Indicator (R.M.) Green : Indicates that the system is operating in O-Ring Master mode
O-Ring Indicator (Ring)

Green : Indicates that the system operating in O-Ring mode
Green Blinking : Indicates that the Ring is broken

Fault Indicator (Fault)

Amber : Indicate unexpected event occurred

10/100/1000Base-T(X) RJ45 Port
Indicator

Green for Link/Act indicator
Dual color LED for speed indicator : Green for 1000Mbps, Amber for 100Mbps, Off-light for 10Mbps

1G/10GBase-X SFP+ Port Indicator

Green for port Link/Act.

Fault contact
Relay

Relay output to carry capacity of 1A at 24VDC

Power
Redundant Input Power

Dual DC inputs, 12~48VDC on 6-pin terminal block

Power consumption (Typ.)

23 Watts

Overload current protection

Present

Reverse polarity protection

Present

Physical Characteristics


Enclosure IP-30
Dimensions (W x D x H)

96.4 x 170 x 180 mm

Weight (g)

1530 g

Environmental
Storage Temperature

-40 to 85°C (-40 to 185°F)

Operating Temperature

-40 to 60oC (-40 to140oF)

Operating Humidity

5% to 95% Non-condensing

Regulatory Approvals
EMC

CE EMC (EN 55024, EN 55032), FCC Part 15 B

EMI

EN 55032, CISPR32, EN 61000-3-2, EN 61000-3-3, FCC Part 15 B class A

EMS

EN 55024 (IEC/EN 61000-4-2 (ESD: Contact 8KV, Air 10KV), IEC/EN 61000-4-3 (RS),IEC/EN 61000-4-4 (EFT Power 2KV, Single 2KV), IEC/EN 61000-4-5 (Surge: Power 4KV, RJ45 4KV), IEC/EN 61000-4-6 (CS), IEC/EN 61000-4-8(PFMF), IEC/EN 61000-4-11 (DIP))

Shock

IEC60068-2-27

Free Fall

IEC60068-2-31

Vibration

IEC60068-2-6

Safety

EN60950-1

Warranty 5 years
MTBF TBD
