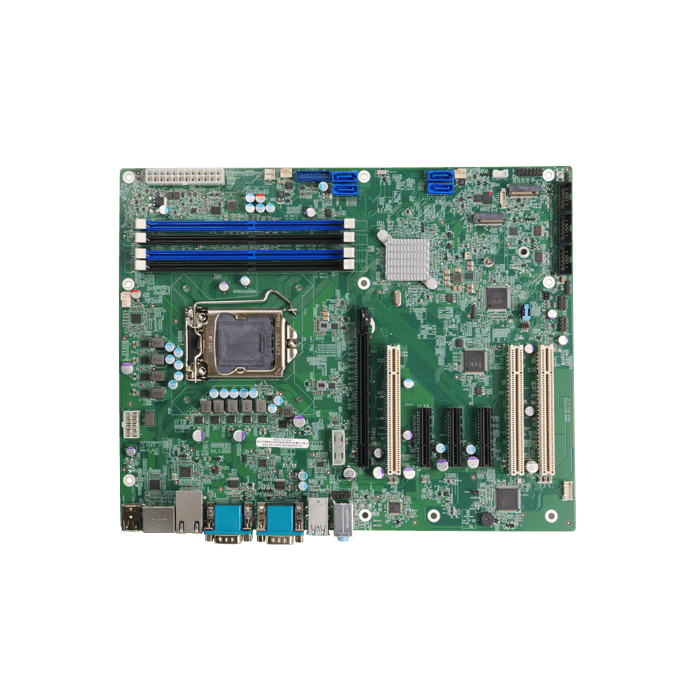

IMBA-Q470 ATX Motherboard LGA1200 10th Gen Core/Cele/Pent

SKU: IMBA-Q470

ATX motherboard LGA1200 Intel 10th Generation Core i9/i7/i5/i3, Celeron and Pentium processor, DDR4, triple independent displays, dual 2.5GbE LAN, M.2, USB 3.2, SATA 6Gb/s, HD Audio and RoHS

Datasheet

Description

The IEI IMBA-Q470 motherboard supports both 10th and 11th Generation Intel Core processors, and performance on the i5 processor is up to 80% better than previous generations.   These processors deliver the performance needed to consolidate industrial multiple workloads, thanks to increased I/O capacity and support for the latest DDR4-2933 memory.

Edge computing, industrial automation, medical equipment, machine vision, automated test equipment, and other applications benefit from the IMBA-Q470's features.

Key Features

  • LGA1200 Intel® 10/11th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor
  • Dual-channel DDR4 2933MHz
  • Support HDMI, DP, VGA
  • Support M.2 A key for WLAN expansion, M key for PCIe NVMe storage

Download

Datasheet

More Information

Brand IEI Integration Corp.
Specifications
Form Factor ATX Motherboard
System
CPU LGA1200 Intel® 10/11th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor
Chipset Intel® Q470
Memory Four 288-pin 2933 MHz Dual-Channel DDR4 SDRAM Unbuffered DIMMs supported up to 128GB
Memory Max. up to 128GB
Cooling method / System Fan 1 x CPU fan connector (1x4 pin)
2 x System fan connector (1x3 pin)
Physical Characteristics
Dimensions (LxWxH) (mm) 244mm x 305mm
Net Weight GW:1200g / NW:700g
Storage
Storage  4 x SATA
1 x M.2(NGFF) : 1 x M.2 M Key (2240/2280) with PCIe x4
I/O Interface
Display Output 1 x VGA Up to 1920 x 1080 @60Hz
1 x HDMI
1 x Display Port
Ethernet 2 x LAN :
LAN1: Intel® I225V 2.5GbE controller
LAN2: Intel® I225V 2.5GbE controller
Audio 1 x Line in
1 x Line out
1 x Mic
1 x Front Audio : 2x5 pin
I/O Interface 2 x External RS-232
1 x External RS-232/422/485 : RS-485 support AFC
2 x Internal RS-232 : 2x5 pin, P=2.54
1 x Internal RS-232/422/485 : 2x5 pin, P=2.54 ,RS-485 support AFC
2 x External USB 2.0 : Type-A
2 x External USB 3.2 Gen1x1 : 5Gb/s(Type-A)
5 x Internal USB 2.0 : 2x4 pin, P=2.54
2 x Internal USB 3.2 Gen1x1 : 2x10 pin, p=2.0
1 x DIO : 8-bit digital I/O (2x5 pin
2 x External USB 3.2 Gen2x1 : 10Gb/s（Type-A）
Expansion 1 x PCIe x16
3 x PCIe x4
3 x PCI Slot
2 x M.2(NGFF) :
1 x M.2 M-key 2242/2280 (PCIe x4)
1 x M.2 A-key 2230 (PCIe x1 / USB 2.0)
Power
Power Consumption [email protected], [email protected], [email protected]
(Intel® Core™ i9-10900E CPU with four 32 GB 3200 MHz DDR4 memory)
Power Supply ATX/AT power supply
Support AT/ATX mode
ErP/EuP Compliant
Environment
Operating Temperature -20°C – 60°C
Storage Temperature -30°C – 70°C
Humidity 5% ~ 95%, non-condensing
Certifications
Safety & EMC CE/FCC compliant
