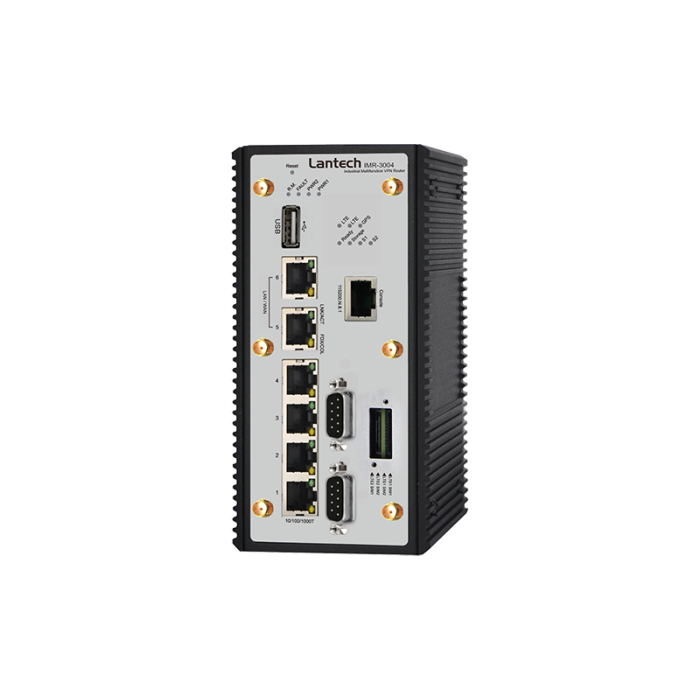

IMR-3004

_{Band Options}

_{APAC & Australia (APAC model)
LTE:
2100/1800/850/2600/900/850/850/1500/700/2600/1900/2300/2500 MHz
(B1/B3/B5/B7/B8/B18/B19/B21/B28/B38/B39/B40/B41)}

_{EU & USA model
LTE:
2100/1800/2600/900/800 MHz
(B1/B2/B3/B4/B5/B7/B12/B13/B20/B25/B26/B29/B30/B41)}

_{WorldWide (WW model)
LTE:
2100/1900/1800/1700/850/2600/900/1800/700/
700/8/50/850/800/850/700/2300/1500/2500/3500/3700/5200/3600/1700
(B1/B2/B3/B4/B5/B7/B8/B9/B12/B13/B18/
B19/B20/B26/B28/B29/B30/B32/B41/B42/B43/B46/B48/B66)}

_{Data Rates – LTE}

_{APAC & Australia (APAC model)
Downlink (Cat 6):
FDD: 300 Mbps
TDD: 222 Mbps
Uplink (Cat 6):
FDD: 50 Mbps
TDD: 26 Mbps}

_{Americas (US model) / EMEA (EU model)
Downlink (Category 3):
100 Mbps (20 MHz bandwidth)
50 Mbps (10 MHz bandwidth)
Uplink (Category 3):
50 Mbps (20 MHz bandwidth)
25 Mbps (10 MHz bandwidth)}

_Connectors

_{10/100/1000T: 6x ports RJ 45(4 Giga + 2WAN/2 LAN ports)
USB x 1
RS-232 connector: 1 x RJ 45
Serial connector : 2 DB9
SIM card slots : 4(2L) or 2(1L)
SMA connector : 6
Power & P-Fail connector: 1 x 6-pole terminal block
DIDO : 1 x 5-pole terminal block}

_{Serial Baud Rate}

_{1000Kbps high data rate,250kbps normal for RS232 ; 20Mbps high data rate,250kbps normal for RS422/485}

_{Serial Data Bits}

_{5, 6, 7, 8}

_{Serial Parity}

_{odd, even, none, mark, space}

_{Serial Stop Bits}

_{1, 1.5, 2}

_RS-232

_{TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND}

_RS-422

_{Tx+,Tx-, Rx+, Rx-,GND}

_{RS-485 (2-wire)}

_{Data+, Data-,GND}

_{Isolation protection}

_{RS422/485 2.5KV isolation; 8KV contact & 15KV air
RS232 8KV contact and 15KV air ESD
DIDO 3KV isolation
Input power 1.5KVA isolation}

_{Micro SD}

_{128G or 256G(MSD model)}

_DI/DO

_{2 Digital Input (DI) :
Level 0: -30~2V / Level 1: 10~30V
Max. input current:8mA
2 Digital Output(DO): Open collector to 40 VDC, 200mA}

_{Power & System indicator}

_{Per unit: Power 1 (Green), Power 2 (Green), P-Fail (Red) , Ring Master(Green), Storage(Green), Serial1/Serial2(Green)}

_{10/100/1000Base-T(X) port indicator}

_{Link/Activity (Green), Speed (Yellow)}

_SIM

_{Green for Link/Act}

_GPS

_{Green for Link/Act}

_Fault

_{Red: Ethernet link down or power down}

_Relay

_{Relay output to carry capacity of 1A at 24VDC}

_{Input power}

_{Dual DC isolated inputs, 9~60VDC}

_{Power consumption (Typ.)}

_{30.5 Watts}

_Enclosure

_{IP 30 aluminum case}

_Dimension

_{74 (W) x 142 (D) x 152 (H) mm}

_Weight

_1000g

_{Storage Temperature}

_{-40oC ~ 85oC (-40oF ~ 185oF)}

_{Operating Temperature}

_{-20oC ~ 75oC (-4oF ~ 167oF)
-40oC ~ 75oC (-40oF ~ 167oF) for E model}

_{Operating Humidity}

_{5% to 95% Non-condensing}

_EMC

_{FCC* Part 15 Class A, EN55032*}

_EMS

_{EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11}

_E-marking**

_E13**

_MTBF

_NA

_Warranty

_{5 years}
