Shop Industrial Temp micro DHC10I Card

SKU: Industrial Temp microSDHC10I Card

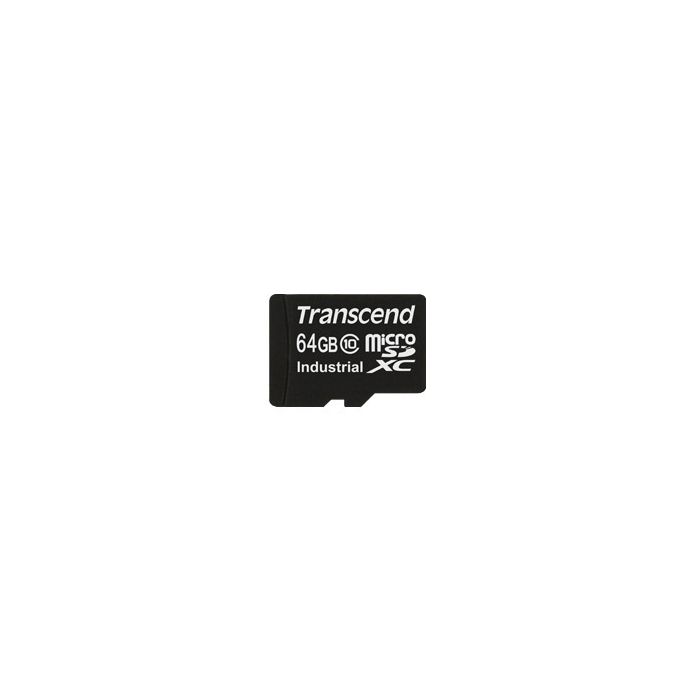

Industrial Temp microSDHC10I card

- Durability: 10,000 insertion/removal cycles
- Compatible with SD Specification Ver. 3.0

Datasheet

Description

Industrial microSD Card

· Suitable for wide-temperature application

· SuperMLC technology allows MLC NAND to act as SLC NAND

· Built-in ECC and Wear-leveling algorithm ensure reliable data transfer

· Mechanical write-protect switch

· Voltage detect function protects saved data

Product Data Sheet

Specifications

^{Dimensions (Max.)}	^{11 mm x 15 mm x 1 mm (0.43" x 0.59" x 0.04")}
^{Form Factor}	^{microSD flash card}

^{Flash Type}	^{MLC NAND flash}
^Capacity	^{8 GB/} ^{16 GB/} ^{32 GB/} ^{64 GB}

^{Operating Voltage}	^{2.7V ~ 3.6V}
^{Drop Test}	^{1.5m free fall}
^{Operating Temperature}	^{-40°C (-40°F) ~ 85°C (185°F)}
^{Storage Temperature}	^{-40°C (-40°F) ~ 85°C (185°F)}
^Humidity	^{0% ~ 95%}
^Shock	^{Acceleration: 490 m/s² (standard holding time: 11 ms, semi-sine wave, velocity change: 3.44 m/s)}
^{Vibration (Operating)}	^{20 G (peak-to-peak), 20 Hz ~ 2,000 Hz (frequency)}

^{Power Consumption (Max.)}	^{0.72 watt(s)}

^{Read Speed (Max.)}	^{21 MB/s}
^{Write Speed (Max.)}	^{17 MB/s}
^{Terabytes Written (Max.)}	^{120 TB}
^Note	^{Speed may vary due to host hardware, software, usage, and storage capacity.}
