Nexcom VTC 7252-7C4IP – 5G Ready In-Vehicle Computer Surveillance

Nexcom VTC 7252-7C4IP – 5G Ready In-Vehicle Computer Surveillance

Today in-vehicle surveillance is becoming an increasingly demanded requirement in a range of mobility applications across public services, such as bus, tram and police vehicles.

Tekdis UK is pleased to announce NEXCOM's next generation IP surveillance in-vehicle computer, the VTC 7252-7C4IP

The unit is 5G-enabled to support live streaming video, making real time video communications from multiple camera feeds with command and control a reality for the first time.

Like all Nexcom Vehicle computers the unit is designed specifically for the harsh automotive environments passing MIL-STD-810G guarantees of shock and vibration. An all-aluminium extruded chassis combined with the use of innovation heat pipe technology ensures fanless operation across a wide temperature range

IP65 Fanless 4-CH PoE IP65 Vehicle Computer Intel Core 9th CPU



The latest CPU technology

Powered by the Intel Core™ i7-9700TE, the VTC 7252-7C4IP can support simultaneous real-time monitoring on multiple IP cameras powered from 4 x PoE 802.3af/at ports. The cockpit monitoring, working along with the vehicle safety system or as a standalone function, helps detect and alert the driver when status of drowsiness or distraction is detected.

5G-ready smart patrol

The rollout of the 5G network also opens up new applications in mobile surveillance. For example, early adopters of such technology in law enforcement authorities have experience positive results. Built-in GPS provides accurate AVL data in real time, this can be upgraded to dead reckoning GPS should the environment contain challenging urban canyons such as tall buildings or road tunnels.

Edge Computing Options

The VTC 7252-7C4IP is also fully compatible with a number of accelerator cards, such as Google Coral or Intel® Movidius™ Myriad™ X, allowing image analysis at the edge without having to rely on cloud processing.

Global Certifications

The unit also carries a comprehensive list of major certifications, including CE, FCC, E-mark (E13)

Main Features

  • Intel® Core™ 9th Gen, i7-9700TE, up to 3.8GHz, 8 Core
  • Full IP65 protection
  • 4 x Independent 10/100/1000 Mbps PoE 802.3af/at, total 60W
  • 2 x Internal 2.5” SSD and 2 x mSATA for RAID 0, 1, 5, 10
  • 2 x Isolated CAN Bus 2.0B
  • 1 x External CFast and 2 x SIM socket with door
  • Support 5G NR, Wi-Fi 6, V2X and AI accelerator cards
  • CE/FCC/E-mark (E13) /MIL-STD-810G

Ordering Information

VTC 7252-7C4IP

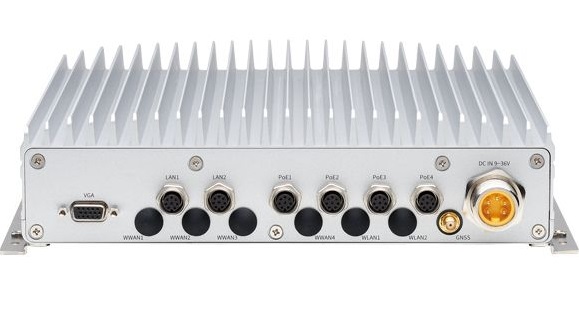

VTC7252-7C4IP - IP65 Fanless 4-CH PoE IP65 Vehicle Computer Intel Core 9th CPU


Intel® Core™ 9th Gen i7-9700TE, 2 x 4GB industrial-grade memory, VGA output, 2 x internal 2.5” tray, 1 x CFast, 2 x LAN, 4 x PoE 802.3af/at (total 60W), 2 x mini-PCIe slot, 2 x M.2 slot, 2 x SIM socket

Have any questions or need more information about Nexcom Mobile Computing? Without any hesitation, please  contact Tekdis UK.
