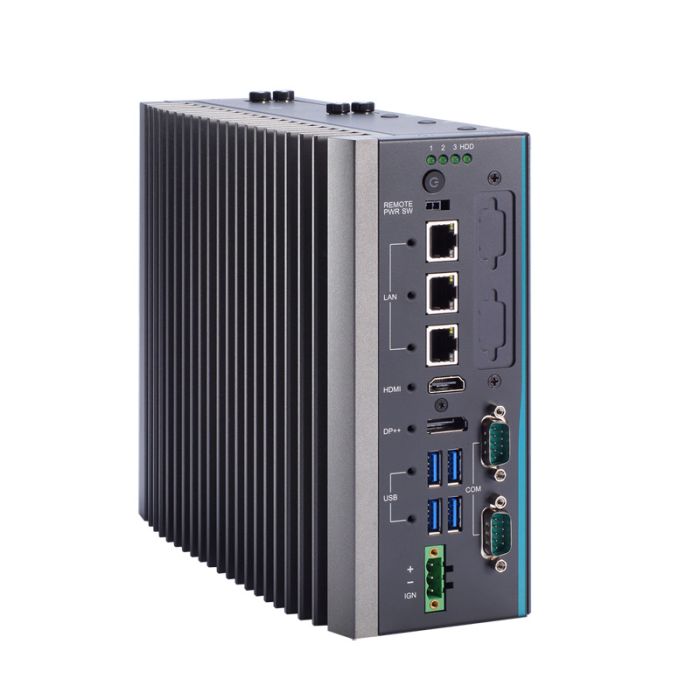

Shop IPC920 Fanless Industrial Computer

Recommended

SKU: IPC920-x-F1x

Fanless Industrial System with LGA1700 Socket 14th/13th/12th Gen Intel Core i9/i7/i5/i3 or Celeron Processor, Intel H610E/R680E, and Front-access I/O

Key Features:

Intelligent power management:
- Ignition
- USB power on/off control
Supports Intel® RAID (R680E)
Easy expansion via flexible I/O window
Supports connectors with pull-resistance design
Optional DIN-rail, bookshelf, and wall mount kit
EN 61000-6-2 certified

Datasheet

Description

Introducing the IPC920, Axiomtek's state-of-the-art fanless industrial system designed to meet the rigorous demands of modern industrial applications. Powered by the latest 14th, 13th and 12th generation Intel® Core™ i9/i7/i5/i3 or Celeron® processors, this robust system features the Intel® H610E/R680E chipset and offers front-access I/O for enhanced accessibility and convenience.

Elevate your industrial computing capabilities with the IPC920, engineered for exceptional performance, reliability, and versatility to tackle the most demanding applications.

Ordering Information/Order Codes

IPC920-H-F1 (P/N-E26G920100)
Industrial fanless system with Intel® H610E
IPC920-H-F1E (P/N-E26G920102)
Industrial fanless system with Intel® H610E and 1 PCIe x16 slot
IPC920-R-F1 (P/N-E26G920101)
Industrial fanless system with Intel® R680E
IPC920-R-F1E (P/N-E26G920103)
Industrial fanless system with Intel® R680E, and 1 PCIe x16 slot

Download

Datasheet

User Manual

* You have to Login or Register to download this file

More Information

Brand

Axiomtek

Specifications

CPU	14th/13th/12th gen Intel® Core™ processor, up to 65W
Chipset	Intel® H610E/R680E
System Memory	2 x 262-pin DDR5 4800/4000 ECC/non-ECC SO-DIMM, up to 64GB
BIOS	AMI
COM	2 x RS-232 (4-wire)/422/485 (default RS-232), DB9 (by BIOS selection)
USB	Intel® H610E: 2 x USB 3.2 Gen2x1 (10G) Type-A 2 x USB 3.2 Gen1x1 (5G) Type-A 1 x USB 2.0 180D Type-A (internal, up to 30mm) Intel® R680E: 4 x USB 3.2 Gen2x1 (10G) Type-A 1 x USB 2.0 180D Type-A (internal, up to 30mm)
Ethernet	2 x RJ-45 2.5GbE LAN (Intel® I226-V) 1 x RJ-45 GbE LAN (Intel® I219-LM); with Intel® AMT (R680E)
Display	1 x DisplayPort++ 1.2 with 4096 x 2160 resolution supported 1 x HDMI 1.4b with 4096 x 2160 resolution supported
Digital I/O	N/A
Audio	N/A
Storage	2 x 2.5" HDD/SSD bay (7/9.5 mm height) supporting RAID 0,1 (R680E) 1 x M.2 Key M 2280 socket (PCIe x4)
Expansion	1 x Full-size PCI Express Mini Card socket (USB & PCIe interface) with SIM slot 1 x M.2 Key E 2230 socket 1 x PCIe x16 Gen3 slot (up to 150W power for add-in card)
Others	TPM 2.0 1 x HDD/SSD access LED 3 x User's LED
Power	Input: 18VDC-36VDC 1 x 3-pin terminal block for DC input, ignition control, and AT/ATX mode by BIOS setting 1 x Power on/off button with LED (default ATX) 1 x Remote power switch
Construction	Aluminum extrusion heavy-duty cold-rolled steel
Operating Temperature	-20°C to +60°C with 13th/12th gen Intel® Core™ processor and industrial wide temperature SSD, 0.7m/s air flow
Relative Humidity	10% to 90%, non-condensing
Dimensions (W x H x D)	IPC920-H-F1, IPC920-R-F1: 83.5 x 192 x 230 mm (3.29" x 7.56" x 9.06") IPC920-H-F1E, IPC920-R-F1E:: 118.5 x 192 x 230 mm (4.67" x 7.56" x 9.06")
Weight (net/gross)	IPC920-H-F1, IPC920-R-F1: 3.2 kg/4.9 kg IPC920-H-F1E, IPC920-R-F1E: 3.7 kg/5.4 kg
Software Support	N/A
EOS Support	Windows 10, Windows 11, Windows 10 IoT, Windows 11 IoT, Linux OS
Certifications	CE (EN 61000-6-4/EN 61000-6-2), FCC
