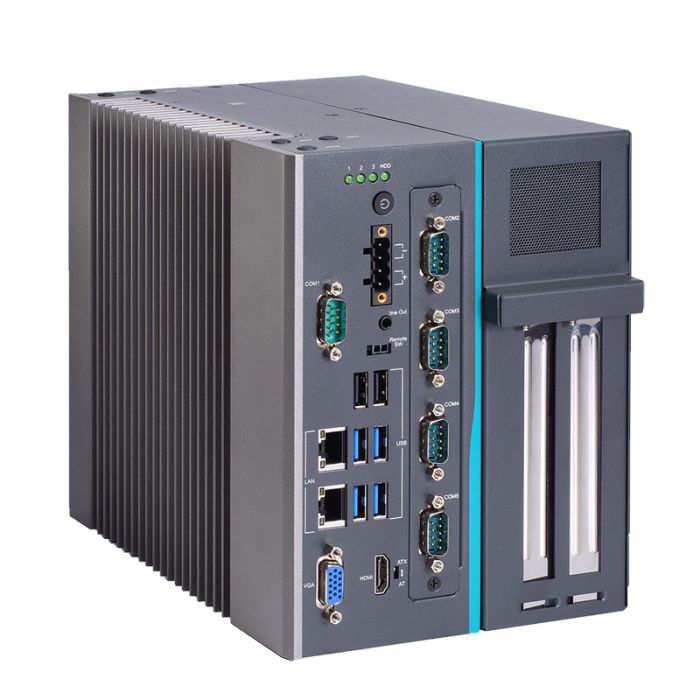

IPC962-525 2-slot Fanless 8th/9th Gen -10°C to +60°C
IPC962-525 2-slot Fanless 8th/9th Gen -10°C to +60°C
2-slot Industrial System with LGA1151 Socket 8th/9th Gen Intel® Core™ i7/i5/i3 Processor, Intel® H310/Intel® Q370, Front-access I/O, PCIe and PCI Slots
Description
- NVIDIA® GPU card, up to 125W
- NVIDIA® Tesla T4 GPU Card
- M.2 Key B slot for 5G wireless connection (optional)
- Supports RAID 0,1 (Intel® Q370)
- Supports Power-on delay function
- Supports TPM 2.0
- Supports AMT 12 (Intel® Q370)
More Information
|
Brand |
Axiomtek |
|
Specifications |
| CPU |
- 9th/8th gen Intel® Core™ processor, up to 65W
|
| Chipset |
|
| System Memory |
- 2 x DDR4-2666/2400 MT/s un-buffered SO-DIMM, up to 64GB
|
| BIOS |
|
| COM |
- Available from extension I/O modules
|
| USB |
- Intel®H310:
- 4 x USB 3.1 Gen1
- 2 x USB 2.0
- 1 x USB 2.0 (internal, 180D type A for license key, up to 30mm)
- Intel®Q370:
- 4 x USB 3.1 Gen2
- 2 x USB 2.0
- 1 x USB 2.0 (internal, 180D type A for license key, up to 30mm)
- More USB ports available from extension I/O modules
|
| Ethernet |
- 2 x 10/100/1000 Mbps (Intel® i211-AT & i219-LM)
- More LAN ports available from extension I/O modules
|
| Display |
|
| Digital I/O |
- Available from extension I/O modules
|
| Audio |
|
| Storage |
- Intel® H310: 2 x 2.5" swappable HDD/SSD (7/9.5 mm height)
- Intel® Q370: 2 x 2.5" swappable HDD/SSD (7/9.5 mm height), supports RAID 0,1
- 1 x M.2 Key M 2280 socket (PCIe Gen3 x4) for NVMe SSD
|
| Expansion |
- Intel® H310: 1 x Full-size PCI Express Mini Card slot (USB interface)
- Intel® Q370: 1 x Full-size PCI Express Mini Card slot (USB & PCIe interface) or 1 x M.2 Key B slot (3050)
- 2 x PCIe/PCI slots
- 1 x SIM slot
- 1 x I/O module slot
|
| Others |
- 1 x Switch for power on/off w/LED (ATX)
- 1 x Remote switch
- 1 x 4-pin terminal block
- 1 x AT/ATX selectable switch
- TPM 2.0
|
| Power Supply |
- Type: ATX/AT
- Input: 24 VDC (uMin=19V/uMax=30V)
|
| Construction |
- Aluminum extrusion heavy-duty cold-rolled steel
|
| Operating Temperature |
- -10°C to +60°C (+14°F to +140°F) with Intel® 9th/8th gen Intel® Core™ and W.T. HDD/SSD
|
| Relative Humidity |
- 10% to 90%, non-condensing
|
Dimensions
(W x D x H) |
- 147.5 x 192 x 230 mm (5.80" x 7.54" x 9.04")
|
| Weight (net/gross) |
- 4.382 kg (9.66 lb)/5.346 kg (11.80 lb)
|
|
