IPC972 Industrial System Xeon/10th Gen i7/i5/i3 , Intel W480E, Front-access I/O, and PCIe Slots

In stock
Brand: Axiomtek

Edge Computer with Dual GPU Expansion for AI Accelerated Processing

Enquire Now
Enquire about this product:

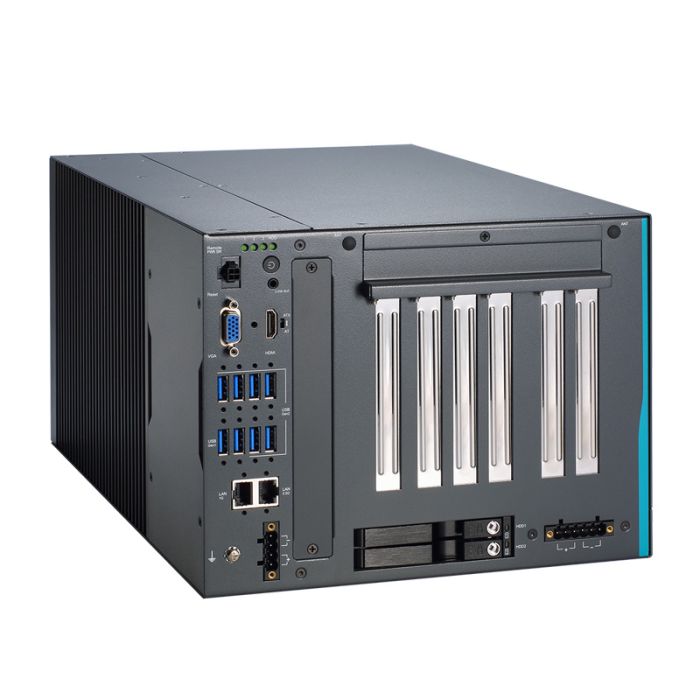

The IPC972 is an industrial edge AI system with dual GPU support. The highly expandable edge computer supports the Intel Xeon or 10th gen Intel Core i7/i5/i3 processor with the Intel W480E chipset. With the ability to support two NVIDIA GeForce RTX 3090 GPU cards, the IPC972 enables to facilitate image processing, real-time control, data analysis, deep learning, AOI, data acquisition, and more automation tasks.

Key Features:

  • LGA1200 Intel Xeon or 10th gen Core i7/i5/i3 processor, up to 80W
  • Intel W480E chipset
  • Supports dual NVIDIA GeForce RTX 3090 GPU cards
  • M.2 Key B slot for 5G wireless connection
  • M.2 Key E slot for Wi-Fi connection
  • Supports RAID 0, 1, 5
  • Supports power-on delay function
  • Supports TPM 2.0

This product is listed in Industrial Automation, Gaming, Axiomtek, Embedded Computers
  • Intel Xeon or 10th Gen Core i7/i5/i3 processor (Cometlake-S), up to 80W
  • Intel W480E
System Memory
  • 4 x DDR4-2933 MT/s ECC or non-ECC U-DIMM socket, up to 128GB
  • AMI
  • Available from extension I/O modules
  • 6 x USB 3.2 Gen 2 (10G)
  • 2 x USB 3.2 Gen 1
  • 1 x USB 2.0 (internal, 180D type A for license key)
  • More USB ports available from extension I/O modules
  • 1 x 2.5 Gigabit LAN (Intel® I225-LM)
  • 1 x Gigabit LAN (Intel® I219-LM)
  • More LAN ports available from extension I/O modules
  • 1 x VGA 1920 x 1200 resolution
  • 1 x HDMI 4096 x 2304 @30Hz
Digital I/O
  • Available from extension I/O modules
  • 1 x Line-out
  • 2 x SSD/HDD drive bay (7/9.5mm height, external)
  • 1 x SSD/HDD drive bay (optional, 7/9.5/15mm height, internal) (supporting RAID 0,1)
  • 1 x M.2 Key M 2280 socket (PCIe Gen3 x4) for NVMe SSD
  • 1 x PCIe x4 slot
  • 1 x PCIe x8 slot (x4 signal)
  • 2 x PCIe x16 slot
  • 2 x Blank slot opening (space for GPU card)
  • 1 x Full-size PCI Express Mini Card slot with SIM slot (USB & PCIe interface)
  • 1 x M.2 Key E 2234 socket
  • 1 x M.2 Key B 3042/3050 socket with SIM slot
  • TPM 2.0
  • Type: ATX/AT
  • Input: 24 VDC (uMin=19V/uMax=30V)
  • Aluminium extrusion heavy-duty cold-rolled steel
Operating Temperature
  • -10°C to +60°C (+14°F up to +140°F) with W.T. HDD/SSD
Relative Humidity
  • 10% to 90%, non-condensing
(W x H x D)
  • 255 x 192 x 360 mm (10" x 7.55" x 14.17")
Weight (net/gross)
  • 8kg/11.2kg
Software Support
  • AXView
EOS Support
  • Windows® 10, Linux
  • CE
