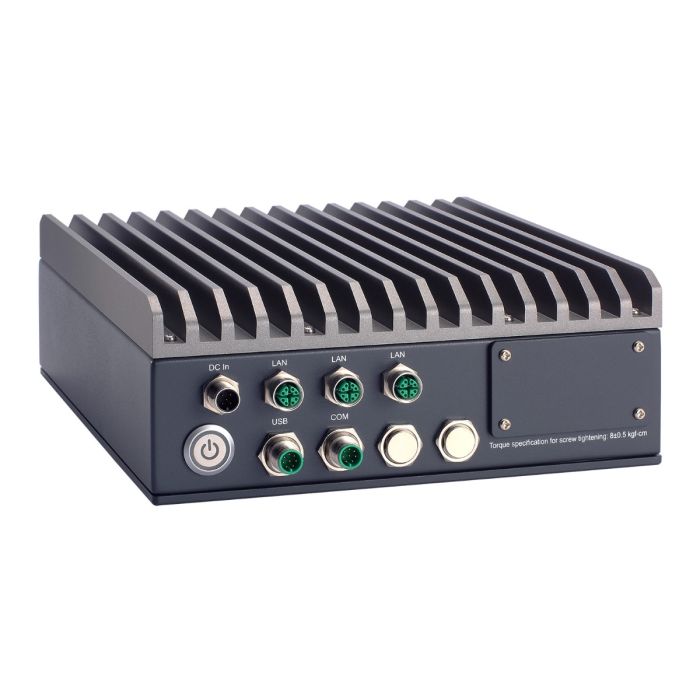

IPC980 Fanless IP67-rated Industrial System 14/13th Gen CPU

SKU: IPC980-H-F1


IP67-rated Industrial System with LGA1700 Socket 14th/13th/12th Gen Intel Core i9/i7/i5/i3 or Celeron Processor, Intel H610E, and Front-access I/O

Key Features:

  • M12 connectors and IP67 housing
  • Optional I/O for expansion
  • Intelligent power management: Ignition, and USB power on/off control
  • EN 61000-6-2 certified
Datasheet

Description

The Axiomtek IPC980 is a rugged, IP67-rated industrial system engineered for demanding environments. It supports 14th, 13th, and 12th Gen Intel® Core™ i9/i7/i5/i3 or Celeron® processors via the LGA1700 socket and utilizes the Intel® H610E chipset. Designed with front-access I/O and M12 connectors, it ensures secure and reliable connections. The system features intelligent power management capabilities, including ignition control and USB power on/off functions. Certified with EN 61000-6-2, the IPC980 is well-suited for industrial automation, transportation, and other mission-critical applications.



Download

Datasheet
User Manual

More Information

Brand Axiomtek
Specifications

CPU

  • 14th/13th/12th gen Intel® Core™ processor, up to 65W

Chipset

  • Intel® H610E

System Memory

  • 2 x 262-pin DDR5 4800/4000 non-ECC SO-DIMM, up to 96GB

BIOS

  • AMI

COM

  • 1 x RS-232 (4-wire)/RS-422/485 (default: RS-232, M12 A-coded)

USB

  • 4 x USB 3.2 Gen1 (5G) Type-A

  • 2 x USB 2.0 (M12 A-coded)

  • 1 x USB 2.0 (internal, up to 30 mm) 180D Type-A

Ethernet

  • 2 x 2.5GbE LAN (Intel® I226-V, M12 X-coded)

  • 1 x GbE LAN (Intel® 1219-LM, M12 X-coded)

Display

  • 1 x HDMI 1.4b with 4096 x 2160 resolution supported

Digital I/O

  • N/A

Audio

  • N/A

Storage

  • 1 x SSD/HDD drive bay (7/9.5/15 mm height)

  • 1 x SSD/HDD drive bay (optional, 7/9.5/15 mm height)

  • 1 x M.2 Key M 2280 socket (PCIe x4)

Expansion

  • 1 x SSD/HDD drive bay (7/9.5/15 mm height)

  • 1 x SSD/HDD drive bay (optional, 7/9.5/15 mm height)

  • 1 x M.2 Key M 2280 socket (PCIe x4)

Others

  • TPM 2.0

Power

  • Input: 18 to 36 VDC

  • ACC ignition

  • 1 x DC power connector (M12, A-coded)

  • 1 x power on/off button with LED (default ATX)

  • AT/ATX mode through BIOS setting

Shock

  • IEC 60068-2-27 2008 (with SSD: 50G, half-sine, 11 ms duration)

  • MIL-STD-810H, Method 516.8, and Procedure I

Construction

  • Aluminum extrusion heavy-duty cold-rolled steel

Vibration

  • IEC 60068-2-64 2019 (with SSD: 3Grms, random, 5 to 500 Hz)

  • MIL-STD-810H, Method 514.8, Category 20

IP Rating

  • IP67

Operating Temperature

  • -40°C to +60°C with 14th/13th/12th gen Intel® Core™ processor and industrial wide temperature SSD, 0.7 m/s air flow

Relative Humidity

  • 10% to 90% relative humidity, non-condensing

Dimensions
(W x H x D)

  • 255 x 230 x 86.5 mm (10.04" x 9.06" x 3.41")

Weight (net/gross)

  • 4.8 kg (10.58 lb)/6.8 kg (14.99 lb)

Software Support

  • N/A

EOS Support

  • Windows® 10, Windows® 11, Windows® 10 IoT, Windows® 11 IoT, and Linux OS

Certifications

  • CE (EN 61000-6-4/EN 61000-6-2), FCC

Ordering Information

IPC980-H-F1
IP67-rated industrial system with Intel® 14th/13th/12th Gen Core™ processor and Intel® H610E

50966224010E
Adapter 24V 90W, M12 A code 5P FSP090AAAN3
