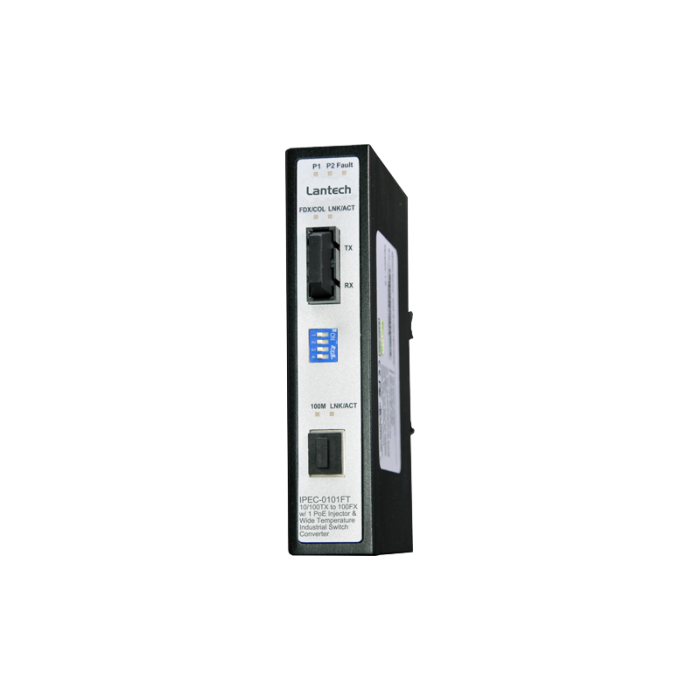

IPEC-0101FT - 1 port media converter with PoE injector

In stock

- Built-in LFP & LLF technology
- Wide operating temperature range from -40°C to 75°C (-E model)
- Redundant power supply

Enquire Now
Enquire about this product:

IEEE Standards

IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX and 100Base-FX Fast Ethernet
IEEE802.3x Flow Control and Back Pressure
IEEE 802.3af Power over Ethernet

Link Lose Forward

TX to Fiber: If TX port link down, the media converter will force Fiber port to link down
Fiber to TX: If Fiber port link down, the media converter will force TX port to link down

PoE pin assignment

RJ-45 port support IEEE 802.3af End-point, Alternative A mode.
Positive (VCC+): RJ-45 pin 1, 2.
Negative (VCC-): RJ-45 pin 3, 6. Data (1,2,3,6 )

Switch Architecture

Store-and –Forward
Packet throughput ability (Full-Duplex): 1.488Mpps @64bytes

Transfer Rate

14,880pps for Ethernet port
148,800pps for Fast Ethernet port

MAC Address

2K Mac address table


SC (Multi-mode): 50/125um~62.5/125um
SC (Single-mode): 9/125um
Available distance: 2km (Multi-mode)/30km (Single-mode)
Wavelength: 1310nm (Multi-mode/Single-mode)
10/100TX: 1 x RJ-45 with auto MDI/MDI-X function
[Multi-Mode] power budget : Min: 9dB , MAX: 19dB.
[Single-Mode] power budget : Min: 19dB , MAX: 26dB.

Network Cable

10Base-T: 2-pair UTP/STP Cat. 3, 4, 5, 6 cable
EIA/TIA-568 100-ohm (100m)
100Base-TX: 2-pair UTP/STP Cat. 5, 6 cable
EIA/TIA-568 100-ohm (100m)




Per unit: Power 1 (Green), Power 2 (Green), Fault(Red)

TX: Link/Active (Green), 100M(Yellow), Feeding Power (Green)

Fiber: Link/Active (Green), Full duplex/Collision (Yellow)

DIP Switch

DIP Switch 1: OFF: Disables Port /Power Alarm ON: Enables Port /Power Alarm
DIP Switch 2: OFF: Disables LLF (Link Loss Forwarding) & LFP (Link Fault Pass- Through) ON: Enables LLF (Link Lose Forwarding ) & LFP (Link Fault Pass-Through)
DIP Switch 3: OFF: 100Base-FX Full-mode ON: 100Base-FX Half-mode
DIP Switch 4: OFF: Switching mode ON: Media mode (100TX to 100FX)

Power Supply

48VDC (45~56VDC), Redundant power with removable terminal block

Power Consumption

2.6 Watts (Unload)
3.3 Watts (Full load: Only Ethernet)
15.7 Watts (Full load: Only PD load)
16.4 Watts (Full load)

Overload current protection


Operating Humidity

5% ~ 95% (Non-condensing)

Operating Temperature

-20°C~60°C / -4°F~140°F (Standard model)
-40°C~75°C / -40°F~167°F (-E model)

Storage Temperature

-40°C~85°C / -40°F~185°F

Case Dimension

Metal case,IP-30; 30mm(W)x95mm(D)x140mm(H)


600 g


FCC Class A, CE EN61000-4-2 (ESD), CE EN61000-4-3(RS), CE EN-61000-4-4 (EFT),
CE EN61000-4-5 (Surge), CE EN61000-4-6 (CS), CE EN61000-4-8, CE EN61000-4-11,
CE EN61000-6-2, CE EN61000-6-4



Stability Testing

IEC60068-2-32(Free fall),


391515 hrs


5 years
