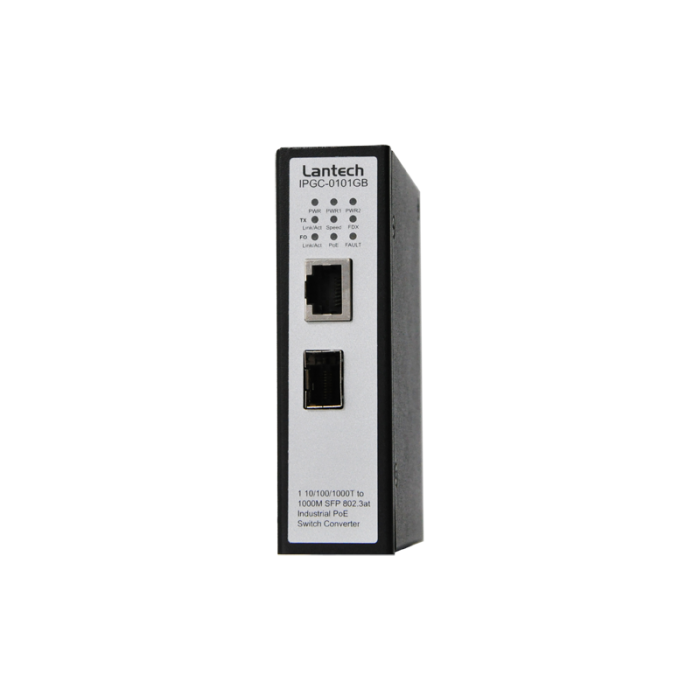

IPGC-0101GB - industrial PoE switch converter

In stock
SKU:
IPGC-0101GB

- IEEE802.3at PoE/PSE Feature
- Support Link Alarm / 9K Bytes Jumbo Frames
- Redundant Power Input with Terminal Block X2 & Additional DC Power Jack


Enquire Now
Enquire about this product:

IEEE Standards

IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX
IEEE802.3ab 1000Base-T
IEEE802.3x Flow Control and Back Pressure
IEEE802.3af Power over Ethernet
IEEE802.3at Power over Ethernet

Switch Architecture

Back-plane (Switching Fabric): 1.6Gbps
Packet throughput ability(Full-Duplex): 8.3Mpps @64bytes

Transfer Rate

14,880pps for Ethernet port
148,800pps for Fast Ethernet port

Packet Buffer

1Mbits

MAC Address

8K MAC address table

Connectors

10/100TX: 8 x RJ-45

Network Cable

10Base-T: UTP/STP Cat. 3, 4, 5/ 5E/ 6 cable
EIA/TIA-568 100-ohm (100m)
100Base-TX: UTP/STP Cat. 5/ 5E/ 6 cable
EIA/TIA-568 100-ohm (100m)

Protocol

CSMA/CD

PoE pin assignment

RJ-45 port # 1~#8 support IEEE 802.3af/at End-point, Alternative A mode. Per port provides 15.4W/30W ability.
Positive (VCC+): RJ-45 pin 1,2.
Negative (VCC-): RJ-45 pin 3,6.
Mode B model:
Positive (VCC+): RJ-45 pin 4,5.
Negative (VCC-): RJ-45 pin 7,8.

LED

Per unit: Power (Green), Power 1 (Green), Power 2 (Green), Fault (Red),
8 port 10/100: Link/Activity (Green), Full duplex/Collision (Yellow), Power Feeding (Green)

Relay Output

Provides one relay output for port breakdown, power fail and alarm.
Alarm Relay current carry ability: 1A @ DC24V

Power Supply

External Power Supply: DC 48V, Redundant power DC 48V and connective removable terminal block.

Power Consumption

10 Watts (Max.); POE Power Budget:240 Watts

Operating Humidity

5% ~ 95% (Non-condensing)

Operating Temperature

Standard: -20°C~60°C /-4°F~140°F
Wide Operating Temperature for E models:
-40°C~75°C / -40°F~167°F

Storage Temperature

-40°C~85°C / -40°F~185°F

Case Dimension

IP-30, 74mm (W) x 115mm (D) x 152mm (H)

Installation

Provide DIN rail kit for DIN-type cabinet install
Optional wall mount kit

EMI & EMS

FCC Class A, CE EN61000-4-2 (ESD), CE EN61000-4-3 (RS), CE EN-61000-4-4 (EFT),
CE EN61000-4-5 (Surge), CE EN61000-4-6 (CS), CE EN61000-4-8, CE EN61000-4-11,
CE EN61000-4-12, CE EN61000-6-2, CE EN61000-6-4

Stability Testing

IEC60068-2-32 (Free fall), IEC60068-2-27 (Shock), IEC60068-2-6 (Vibration)

Warranty

5 years
