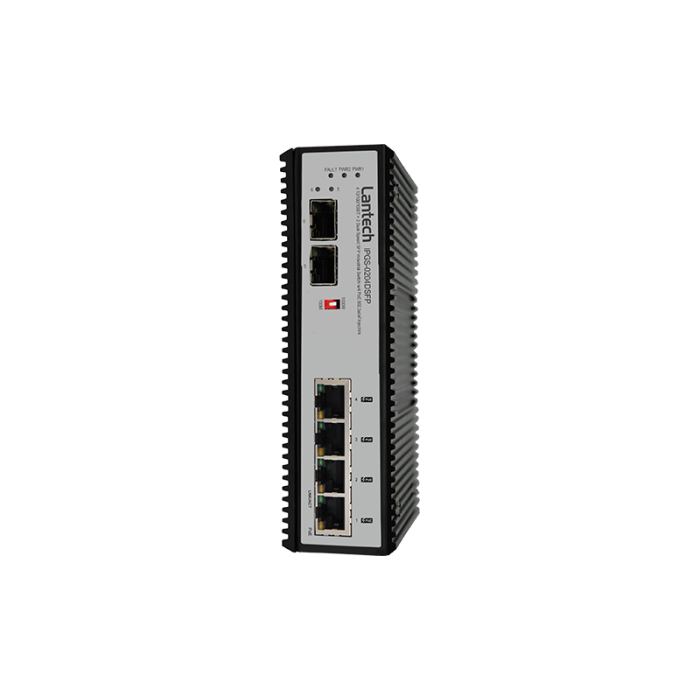

Shop IPGS-0204DSFP - 6 port SFP switch

Description

_{Switch Architecture}	_{Back-plane (Switching Fabric): 12Gbps} _{Packet throughput ability (Full-Duplex): 17.85 Mpps @64bytes}
_{Transfer Rate}	_{14,880pps for Ethernet port} _{148,800pps for Fast Ethernet port} _{1,488,000pps for Gigabit Ethernet port}
_{Packet Buffer}	_1Mbits
_{Mac Address}	_{8K MAC address table}
_Connector	_{10/100/1000T: 4 x RJ-45} _{Mini-GBIC: 2 x 100/1000 Dual Speed SFP Sockets}
_{DIP Switch}	_{SFP Speed 1000M or 100M}
_{Optical Cable}	_{Depends on Transceiver}
_Protocol	_CSMA/CD
_{PoE pin assignment}	_{RJ-45 port # 1~# 4 support IEEE 802.3at End-point, Alternative A mode. Per port provides 30W at 55V ability.} _{Positive (VCC+): RJ-45 pin 1,2.} _{Negative (VCC-): RJ-45 pin 3,6.}
_LED	_{Per unit: Power 1 (Green), Power 2 (Green), P-Fail (Amber)} _{TX/RJ-45 port: LNK Green, SPD 10/100 OFF, 1000 Green} _{SFP port : LNK Green, Active flashLink/Activity (Green), PoE (Green)}
_{Power Supply}	_{Dual DC 12V~56V (12V model)} _{Dual DC 48V (48V model)}
_{Power Consumption}	_Switch:6W _{120W@48/24VDC} _80W@12VDC
_{Operating Humidity}	_{5% to 95% (Non-condensing)}
_{Operating Temperature}	_{-40°C ~ 75°C}
_{Storage Temperature}	_{-40°C ~ 85°C}
_{Case Dimension}	_{IP30, 43mm (W) x 142mm (H) x 105mm (D)}
_Installation	_{DIN rail or optional Wall mounting design}
_EMI	_{FCC Class A, CE EN61000-4-2 (ESD), CE EN61000-4-3 (RS), CE EN-61000-4-4 (EFT),} _{CE EN61000-4-5 (Surge), CE EN61000-4-6 (CS), CE EN61000-4-8, CE EN61000-6-2,} _{CE EN61000-6-4}
_{Stability Testing}	_{IEC60068-2-32 (Free fall), IEC60068-2-27 (Shock), IEC60068-2-6 (Vibration)}
_MTBF	_{12V model: 1,291,990 hrs} _{48V model: 1,414,427 hrs}
_Warranty	_{5 years}

Download

IPGS-0204DSFP - 6 port SFP switch

Description

Switch Architecture

Back-plane (Switching Fabric): 12Gbps Packet throughput ability (Full-Duplex): 17.85 Mpps @64bytes

Transfer Rate

14,880pps for Ethernet port 148,800pps for Fast Ethernet port 1,488,000pps for Gigabit Ethernet port

Packet Buffer

1Mbits

Mac Address

8K MAC address table

Connector

10/100/1000T: 4 x RJ-45 Mini-GBIC: 2 x 100/1000 Dual Speed SFP Sockets

DIP Switch

SFP Speed 1000M or 100M

Optical Cable

Depends on Transceiver

Protocol

CSMA/CD

PoE pin assignment

RJ-45 port # 1~# 4 support IEEE 802.3at End-point, Alternative A mode. Per port provides 30W at 55V ability. Positive (VCC+): RJ-45 pin 1,2. Negative (VCC-): RJ-45 pin 3,6.

LED

Per unit: Power 1 (Green), Power 2 (Green), P-Fail (Amber) TX/RJ-45 port: LNK Green, SPD 10/100 OFF, 1000 Green SFP port : LNK Green, Active flashLink/Activity (Green), PoE (Green)

Power Supply

Dual DC 12V~56V (12V model) Dual DC 48V (48V model)

Power Consumption

Switch:6W 120W@48/24VDC 80W@12VDC

Operating Humidity

5% to 95% (Non-condensing)

Operating Temperature

-40°C ~ 75°C

Storage Temperature

-40°C ~ 85°C

Case Dimension

IP30, 43mm (W) x 142mm (H) x 105mm (D)

Installation

DIN rail or optional Wall mounting design

EMI

FCC Class A, CE EN61000-4-2 (ESD), CE EN61000-4-3 (RS), CE EN-61000-4-4 (EFT), CE EN61000-4-5 (Surge), CE EN61000-4-6 (CS), CE EN61000-4-8, CE EN61000-6-2, CE EN61000-6-4

Stability Testing

IEC60068-2-32 (Free fall), IEC60068-2-27 (Shock), IEC60068-2-6 (Vibration)

MTBF

12V model: 1,291,990 hrs 48V model: 1,414,427 hrs

Warranty

5 years

Download
