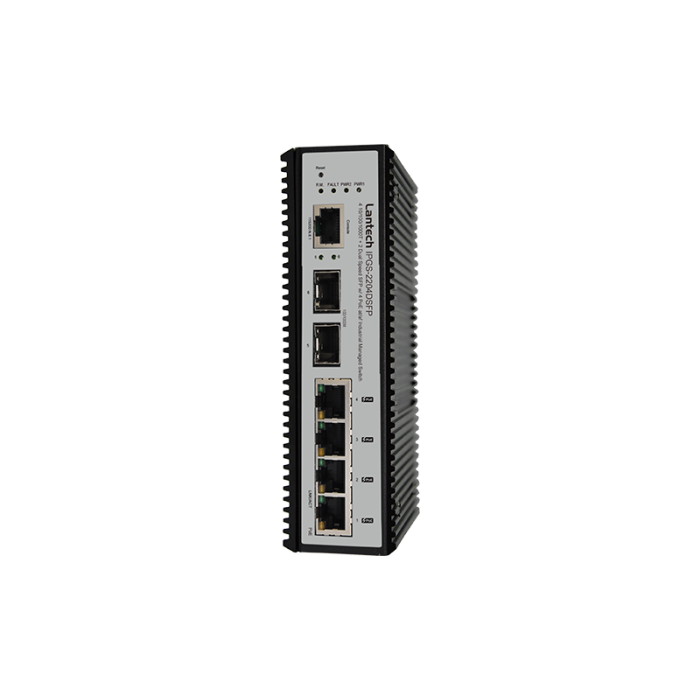

Shop IPGS-2204DSFP - 6 port managed switch

Description

_{IEEE Standards}

_{IEEE802.3 10Base-T Ethernet}
_{IEEE802.3u 100Base-TX}
_{IEEE802.3ab 1000Base-T}
_{IEEE802.3z Gigabit fiber}
_{IEEE802.3x Flow Control and Back Pressure}
_{IEEE802.3ad Port trunk with LACP}
_{IEEE802.3af /at Power over Ethernet}
_{IEEE802.1d Spanning Tree}
_{IEEE802.1w Rapid Spanning Tree}
_{IEEE802.1s Multiple Spanning Tree}
_{IEEE802.1p Class of Service}
_{IEEE802.1Q VLAN Tag}
_{IEEE802.1x User Authentication (Radius)}
_{IEEE802.1ab LLDP}

_{Switch Architecture}

_{Back-plane (Switching Fabric): 12Gbps}

_{Transfer Rate}

_{14,880pps for Ethernet port}
_{148,800pps for Fast Ethernet port}
_{1,488,000pps for Gigabit Fiber Ethernet port}

_{MAC Address}

_{8K MAC address table}

_Connectors

_{10/100/1000T: 4 x ports RJ-45 with Auto MDI/MDI-X function}
_{100/1000 SFP port: 2 100/1000 SFP socket with DDM***}
_{RS-232 connector: RJ-45 type}

_{Network Cable}

_{10Base-T: 2-pair UTP/STP Cat. 3, 4, 5/ 5E/ 6 cable}
_{EIA/TIA-568 100-ohm (100m)}
_{100Base-TX: 2-pair UTP/STP Cat. 5/ 5E/ 6 cable}
_{EIA/TIA-568 100-ohm (100m)}
_{1000Base-T: 2-pair UTP/STP Cat. 5/ 5E/ 6 cable}
_{EIA/TIA-568 100-ohm (100m)}

_{Optical Fiber}

_1.25Gbps:
_{Multi mode: 0 to 550 m, 850 nm (50/125 μm); 0 to 2 km, 1310 nm (50/125 μm)}
_{Single mode: 0 to 10 km/ 30 km/ 40 km, 1310 nm (9/125 μm); 0 to 50 km/ 60 km/ 80km/ 120 km, 1550 nm (9/125 μm)}
_125Mbps:
_{Multi mode: 0 to 2 km/ 5 km, 1310 nm (62.5/125 μm)}
_{Single mode: 0 to 30 km, 1310 nm (62.5/125 μm)}
_{WDM 1.25Gbps:}
_{Single mode: 0 to 10 km/ 20 km/ 40 km/ 60 km, 1310 nm (9/125 μm); 0 to 80 km, 1490 nm (9/125 μm); 0 to 10 km/ 20 km/ 40 km/ 60 km/ 80 km, 1550 nm (9/125 μm)}
_{WDM 125Mbps:}
_{Single mode: 0 to 20 km/ 40 km/ 60 km/ 80 km, 1310 nm (9/125 μm); 0 to 20 km/ 40 km/ 60 km/ 80 km, 1550 nm (9/125 μm)}

_Protocol

_CSMA/CD

_{PoE pin assignment}

_{RJ-45 port # 1~#4 support 802.3at/af End-point,}
_{Alternative A mode. Per port provides up to 30W@54V capability.}
_{Positive (VCC+): RJ-45 pin 1,2.}
_{Negative (VCC-): RJ-45 pin 3,6.}

_{PoE input voltage & Power feed voltage}

_{Input V}	_{Active Mode A /Output V}
_9.5V~56V	_{48V/54V@15W/30W(IPGS-2204DSFP-12V)}
_45~56V(af)	_48V@15W
_53~56V(at)	_54V@30W

_LED

_{Per unit: Power (Green), Power 1 (Green), Power 2 (Green), Fault (Yellow), Master (Green)}
_{4 port 10/100/1000T: Link/Activity (Green), Full duplex/Collision (Yellow)}
_{SFP port: LNK/ACT(Green)}

_{Power Supply}

_{PoE input 48V/54VDC; 9.5V~56V(IPGS-2204DSFP-12V); Dual power connective removable terminal block}

_{PoE Budget}

_{80W for 12V input, 120W for 24V and 48V/54V input}

_{Overload current protection}

_Present

_{Operating Humidity}

_{5% ~ 95% (Non-condensing)}

_{Operating Temperature}

_{Standard: -20°C~60°C / -4°F~140°F}
_{Wide Operating Temperature for E models:}
_{-40°C~75°C / -40°F~167°F}

_{Storage Temperature}

_{-40°C~85°C / -40°F~185°F}

_{Case Dimension}

_IP-30,
_{12V model: 43(W) x 105(D) x 152(H) mm}
_{48V model: 35(W) x 105(D) x 152(H) mm}

_Weight

_{660 g}

_{Fan Number}

₀

_Installation

_{Wall mount or DIN-type cabinet install}

_{EMI & EMS}

_{FCC Class A, CE EN61000-4-2,}
_{CE EN61000-4-3, CE EN61000-4-4,}
_{CE EN61000-4-5, CE EN61000-4-6,}
_{CE EN61000-4-8, CE EN61000-4-11,}
_{CE EN61000-4-12, CE EN61000-6-2,}
_{CE EN61000-6-4}

_{Stability Testing}

_{IEC60068-2-32 (Free fall), IEC60068-2-27 (Shock), IEC60068-2-6 (Vibration)}

_{Power Consumption}

_{9.86 W (no PoE load) for Ethernet data at full load}

_Warranty

_{5 years}

Download

IPGS-2204DSFP - 6 port managed switch

Description

IEEE Standards

Switch Architecture

Back-plane (Switching Fabric): 12Gbps

Transfer Rate

14,880pps for Ethernet port 148,800pps for Fast Ethernet port 1,488,000pps for Gigabit Fiber Ethernet port

MAC Address

8K MAC address table

Connectors

10/100/1000T: 4 x ports RJ-45 with Auto MDI/MDI-X function 100/1000 SFP port: 2 100/1000 SFP socket with DDM*** RS-232 connector: RJ-45 type

Network Cable

10Base-T: 2-pair UTP/STP Cat. 3, 4, 5/ 5E/ 6 cable EIA/TIA-568 100-ohm (100m) 100Base-TX: 2-pair UTP/STP Cat. 5/ 5E/ 6 cable EIA/TIA-568 100-ohm (100m) 1000Base-T: 2-pair UTP/STP Cat. 5/ 5E/ 6 cable EIA/TIA-568 100-ohm (100m)

Optical Fiber

Protocol

CSMA/CD

PoE pin assignment

RJ-45 port # 1~#4 support 802.3at/af End-point, Alternative A mode. Per port provides up to 30W@54V capability. Positive (VCC+): RJ-45 pin 1,2. Negative (VCC-): RJ-45 pin 3,6.

PoE input voltage & Power feed voltage

Input V

Active Mode A /Output V

9.5V~56V

48V/54V@15W/30W(IPGS-2204DSFP-12V)

45~56V(af)

48V@15W

53~56V(at)

54V@30W

LED

Per unit: Power (Green), Power 1 (Green), Power 2 (Green), Fault (Yellow), Master (Green) 4 port 10/100/1000T: Link/Activity (Green), Full duplex/Collision (Yellow) SFP port: LNK/ACT(Green)

Power Supply

PoE input 48V/54VDC; 9.5V~56V(IPGS-2204DSFP-12V); Dual power connective removable terminal block

PoE Budget

80W for 12V input, 120W for 24V and 48V/54V input

Overload current protection

Present

Operating Humidity

5% ~ 95% (Non-condensing)

Operating Temperature

Standard: -20°C~60°C / -4°F~140°F Wide Operating Temperature for E models:-40°C~75°C / -40°F~167°F

Storage Temperature

-40°C~85°C / -40°F~185°F

Case Dimension

IP-30, 12V model: 43(W) x 105(D) x 152(H) mm 48V model: 35(W) x 105(D) x 152(H) mm

Weight

660 g

Fan Number

0

Installation

Wall mount or DIN-type cabinet install

EMI & EMS

FCC Class A, CE EN61000-4-2, CE EN61000-4-3, CE EN61000-4-4, CE EN61000-4-5, CE EN61000-4-6, CE EN61000-4-8, CE EN61000-4-11, CE EN61000-4-12, CE EN61000-6-2, CE EN61000-6-4

Stability Testing

IEC60068-2-32 (Free fall), IEC60068-2-27 (Shock), IEC60068-2-6 (Vibration)

Power Consumption

9.86 W (no PoE load) for Ethernet data at full load

Warranty

5 years
