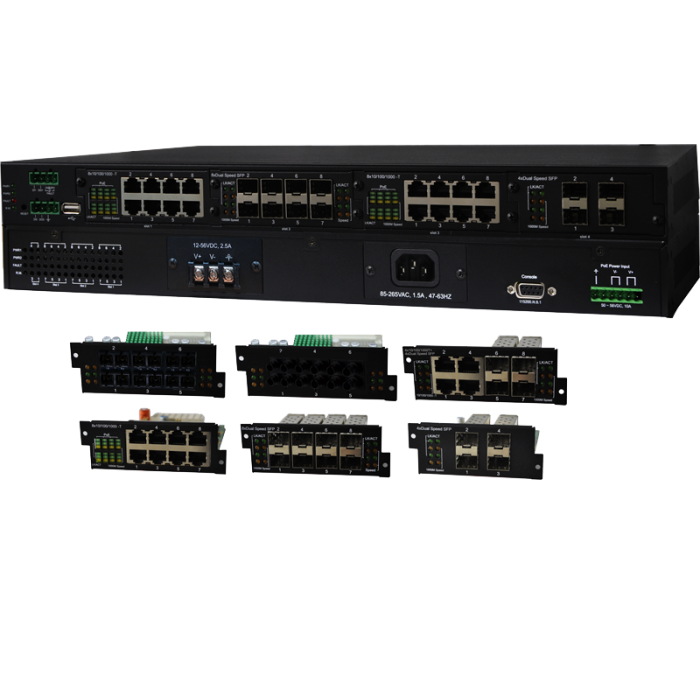

IPGS-5400-2P - 28 port managed switch

In stock
SKU:
IPGS-5400-2P

- High-density 28 x Gigabit Ethernet L2+ managed (PoE at/af) switch
- Enhanced G.8032 ring protection < 20ms with easy configuration; Dynamic coupling ring; Aggregation ring*
- Supports PTPv2 (under 1μs) IEEE 1588 and built-in RTC(Real Time Clock)


Enquire Now
Enquire about this product:

IEEE Standards

IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Ethernet
IEEE 802.3ab 1000Base-TX Ethernet
IEEE 802.3z 1000Base-X Ethernet
IEEE 802.3x Flow Control Capability
ANSI/IEEE 802.3 Auto-negotiation
IEEE 802.1Q VLAN
IEEE 802.1p Class of Service
IEEE 802.1X Access Control
IEEE 802.1D Spanning Tree
IEEE 802.1w Rapid Spanning Tree
IEEE 802.1s Multiple Spanning Tree
IEEE 802.3ad Link Aggregation Control Protocol (LACP)
IEEE 802.1AB Link Layer Discovery Protocol (LLDP)
IEEE 802.1x User Authentication (Radius)
IEEE 1588 Precision Time Protocol v2
IEEE 802.3at/af PoE

Switch Architecture

Back-plane (Switching Fabric): 56Gbps
Packet throughput ability (Full-Duplex): 71.43Mpps @64bytes

Transfer Rate

14,880pps for Ethernet port
148,800pps for Fast Ethernet port
1,488,000pps for Gigabit Ethernet port

CPU

Marvell 800Mhz

RAM

256M Byte

Flash

128M Byte

Mac Address

16K MAC address table

Jumbo frame*

9KB on all ports

Connectors

Max. 28 10/100/1000T RJ-45 with auto MDI/MDI-X function
Max 28 100M Mini-GBIC : SFP sockets
Max 28 1000M Mini-GBIC : SFP sockets
RS-232 console: Female DB-9
USB for automatic backup and edited restoration configuration

Protocol

CSMA/CD

LED

Per unit: Power 1 (Green), Power 2 (Green), Alarm (Red) ,R.M (Green)
Link/Activity (Green), Full duplex/collision(Yellow)), MINI GBIC (Link/Activity )(Green)

Power Supply

IGS-5400-2P: 1 built-in power + 1 optional power
IPGS-5400-2P: 1 built-in power + 1 optional power + 1 PoE power

  1. VAC/VDC isolated 4000V 85V~265VAC/100~370VDC

  2. VDC isolated 1600V 36~75VDC

  3. 12V~56VDC

  4. PoE power input 45~56VDC (55V input is recommended for 802.3at 30W applications)(IPGS-5400-2P)

Power Consumption

Full load: 30W/ Unload: 13W

PoE Budget

Max. 720W with dual 48VDC input

Relay Alarm

Provides one relay output for port breakdown, power fail and alarm.
Alarm Relay current carry ability: 1A @ DC24V

DI/DO

2 Digital Input (DI) :
Level 0: -30~2V / Level 1: 10~30V
Max. input current:8mA
2 Digital Output(DO): Open collector to 40 VDC, 200mA

Case Dimension

19” Metal case,IP-30; 440mm(W)x325mm(D)x44mm(H)

Operating Humidity

5%~95% (Non-condensing)

Operating Temperature

Standard: -20°C ~60°C
Extended temperature : -40°C ~75°C
PoE module : -20°C ~60°C

Storage Temperature

-40°C ~85°C

EMI

FCC Class A, CE EN61000-4-2 (ESD),
CE EN61000-4-3 (RS), CE EN-61000-4-4 (EFT),
CE EN61000-4-5 (Surge), CE EN61000-4-6 (CS),
CE EN61000-4-8, CE EN61000-4-11,
CE EN61000-4-12, CE EN61000-6-2,
CE EN61000-6-4

MTBF

245,432hrs

Stability Testing

IEC60068-2-32 (Free fall), IEC60068-2-27 (Shock), IEC60068-2-6 (Vibration), IEC60870-2-2, IEC60068-2-30

Warranty

5 years
