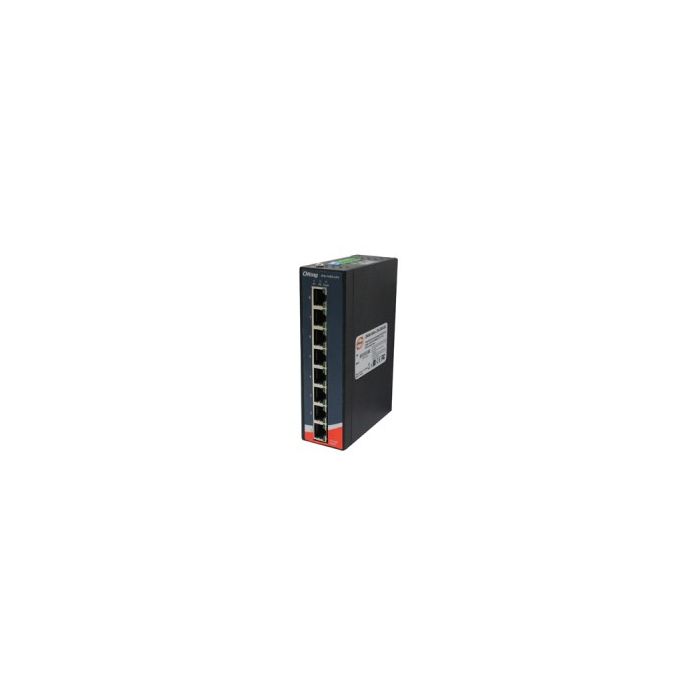

10/100Base-T(X) Ports in RJ45 Auto MDI/MDIX with P.S.E.
8
Technology
Ethernet Standards
IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX IEEE 802.3x for Flow control IEEE 802.3at PoE specification (total power budget is 120Watts with maximum 30Watts per port)
MAC Table
2048 MAC addresses
Processing
Store-and-Forward
LED Indicators
Power Indicator
Green : Power LED x 2
Fault Indicator
Amber : Indicate PWR1 or PWR2 failure
10/100Base-T(X) RJ45 Port Indicator and PoE indicator
Green for port Link/Act. Green for PoE power injected.
Fault Contact
Relay
Relay output to carry capacity of 1A at 24VDC
Power
Redundant Input Power
Dual DC inputs. 24~36VDC on 6-pin terminal block.
Power Consumption (Typ.)
4.32 Watts (PoE output not included)
Overload Current Protection
Present
Reverse Polarity Protection
NOT Present
Physical Characteristics
Enclosure
IP-30
Dimensions (W x D x H)
41 (W) x 94.9 (D) x 144.3(H) mm (1.61 x 3.74 x 5.68inch)
