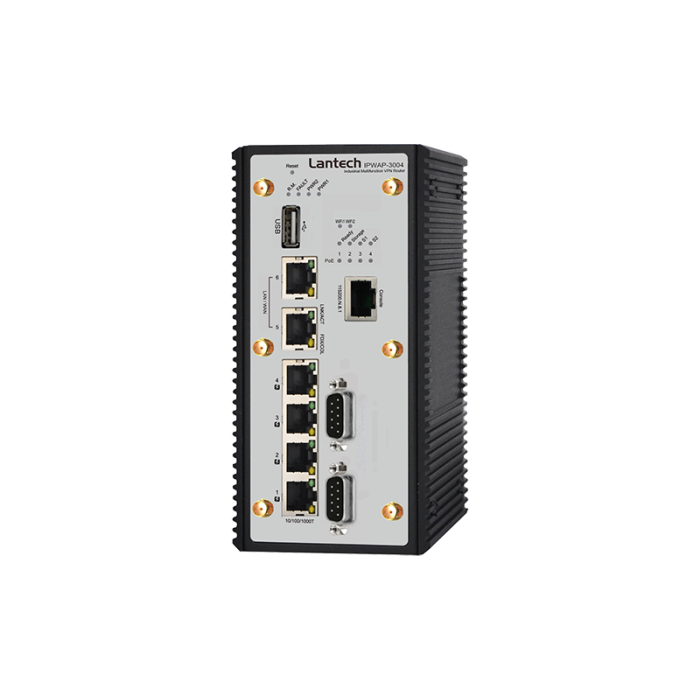

IPWAP-3004

In stock
SKU:
IPWAP-3004

Model Code: IPWAP-3004

- Up to 2 concurrent WIFI 11ac and redundancy(2AC model)
- Built-in 4 Gigabit PoE at/af Switch with budget 80W@12V/24V/48V
- Dual radio for 802.11ac/a/b/g/n with concurrent 5GHz & 5GHz bands up to 2.6Gbps Wi-Fi bandwidth(2AC model)


Enquire Now
Enquire about this product:

WLAN Interface

Operating Mode

AP/BRIDGE/Client modes

Radio Frequency Type

DSSS, OFDM

Wireless Standard

IEEE 802.11ac/n/a 5GHz
IEEE 802.11b/g/n 2.4GHz

Wireless bandwidth

5GHz: Up to 1300Mbps
2.4GHz: Up to 450Mbps

Modulation

802.11b: DSSS
802.11a/g:
OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
802.11n:
OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
802.11ac:
OFDM (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM)

Operating Frequency

IEEE 802.11 a/b/g/n ISM Band, 2.412GHz~2.472GHz, 5150MHz~5850MHz

Transmission Rate

IEEE802.11ac: up to 1300Mbps
IEEE802.11b: 1 / 2 / 5.5 / 11 Mbps
IEEE802.11a/g: 6 / 9 / 12 / 18 / 24 / 36 / 48 / 54 Mbps
IEEE802.11n: up to 450Mbps

IEEE 802.11b/g/n(2.4Gbps)

Output Power Tx +/- 2dB(per chain)
18dBm @ 1~11Mbps
18dBm @ 6~54Mbps
20/20dBm @ MCS0~MCS7 (HT20/40)
Receiver Sensitivity Rx +/- 2dB
≦-95dBm @ 1~11Mbps
≦-92dBm @ 6~18Mbps
≦-88dBm @ 24Mbps
≦-85dBm @ 36Mbps
≦-81dBm @ 48Mbps
≦-80dBm @ 54Mbps
≦-94dBm @ MCS0 (HT20/40)
≦-76dBm @ MCS7 (HT20/40)

IEEE 802.11a/n/ac(5Gbps)

Output Power Tx +/- 2dB(per chain)
20dBm @ 6~24Mbps
16dBm @ 36~54Mbps
19/18dBm @ MCS0 (HT20/40)
16/16dBm @ MCS7 (HT20/40)
19/18/18dBm @ MCS0 (VHT20/40/80)
13/13/13dBm @ MCS8 (VHT20/40/80)
13/13dBm @ MCS9 (VHT40/80)
Receiver Sensitivity Rx +/- 2dB
≦-92dBm @ 6~18Mbps
≦-86dBm @ 24Mbps
≦-84dBm @ 36Mbps
≦-81dBm @ 48Mbps
≦-80dBm @ 54Mbps
≦-93dBm @ MCS0 (HT20/40)
≦-71dBm/≦-80dBm @ MCS7 (HT20/40)
≦-90dBm @ MCS0 (VHT20/40/80)
≦-69dBm @ MCS8 (VHT20/40/80)
≦-66dBm @ MCS9 (VHT40/80)

Encryption Security

WEP : (64-bit ,128-bit key supported)
WPA /WPA2 : IEEE802.11i(WEP and AES encryption)
WPA-PSK (256-bit key pre-shared key supported)
OKC** and 802.11r**
EAP,MD5,EAP,TLS,EAP,TTLS,EAP
MsCHAPv3 and PEAP **

Wireless Security

SSID broadcast disable**

Physical Ports & System

Connectors

10/100/1000T: 6x ports RJ 45 (incl 4 PoE ports)
USB x 1
RS-232 connector: 1 x RJ 45
Serial connector : 2 DB9
SMA connector : 6
Power & P-Fail connector: 1 x 6-pole terminal block
DIDO : 1 x 5-pole terminal block

Serial Baud Rate

1000Kbps high data rate, 250kbps normal for RS232 ; 20Mbps high data rate, 250kbps normal for RS422/485

Serial Data Bits

5, 6, 7, 8

Serial Parity

odd, even, none, mark, space

Serial Stop Bits

1, 1.5, 2

RS-232

TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

RS-422

Tx+,Tx-, Rx+, Rx-,GND

RS-485 (2-wire)

Data+, Data-,GND

Isolation protection

RS422/485 2.5KV isolation; 8KV contact & 15KV air
RS232 8KV contact and 15KV air ESD
DIDO 3KV isolation
Input power 1.5KVA isolation

Micro SD

128G or 256G(MSD model)

DI/DO

2 Digital Input (DI) :
Level 0: -30~2V / Level 1: 10~30V
Max. input current:8mA
2 Digital Output(DO): Open collector to 40 VDC, 200mA

LED Indicators

System & Power

Per unit: Power 1 (Green), Power 2 (Green), P-Fail (Red) , Ring Master(Green), Storage(Green), Serial1/Serial2(Green)

10/100/1000Base-T(X) port indicator

Link/Activity (Green), Speed (Yellow), PoE (Green)

Fault

Red: Ethernet link down or power down

Fault Contact

Relay

Relay output to carry capacity of 1A at 24VDC

Power

Input power

Dual DC input, 9~56VDC (24V model)

PoE Budget

80W@12V/24V/48V

Power consumption (Typ.)

30.5 Watts

Physical Characteristic

Enclosure

IP 30 aluminum case

Dimension

74 (W) x 142 (D) x 152 (H) mm

Weight

1000g

Environmental

Storage Temperature

-40oC ~ 85oC (-40oF ~ 185oF)

Operating Temperature

-20oC ~ 70oC (-4oF ~ 158oF)
-40oC ~ 70oC (-40oF ~ 158oF) for E model

Operating Humidity

5% to 95% Non-condensing

Regulatory Approvals

EMC

FCC* Part 15 Class A, EN55032*

EMS

EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11

E-marking**

E13**

MTBF

NA

Warranty

5 years
