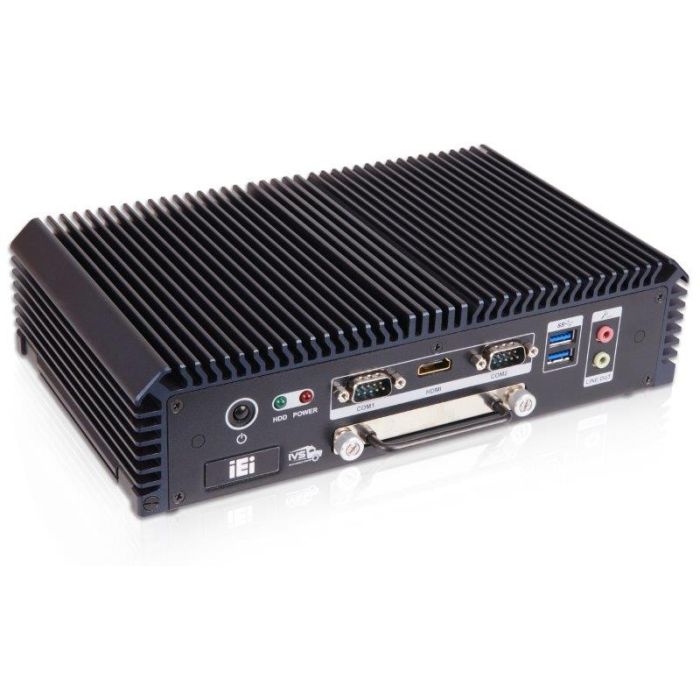

IVS-200-ULT2 Vehicle Surveillance System

End of Life
IEI Integration Corp.
SKU: IVS-200-ULT2

Fanless System with Intel® Celeron® 3765U 1.7GHz or Intel® Core™ i5-5350U up to 2.9GHz

Description

Fanless System with Intel® Celeron® 3765U 1.7GHz or Intel® Core™ i5-5350U up to 2.9GHz



● Intel® i5-5350U dual-core 1.8 GHz CPU or Intel® Celeron® 3755U dual-core 1.7 GHz CPU

● Four Intel® GbE LAN ports

● 9 V~36 V DC input

● Two RS-232/422/485

● E-Mark certification

Download

More Information

Brand IEI Integration Corp.
Specifications
Spec Item Description
Form factor
SBC Form Factor CPU: Intel® Core i5-5350U (dual-core, 1.8 GHz, 15W TDP) or
Intel® Celeron® 3765U (dual-core, 1.9 GHz, 15W TDP)
Chipset: SoC
System Memory:2 x 204-pin DDR3L SO-DIMM. 1 x 4GB pre-installed
I/O Interface
I/O Ports 2 x USB3.0
2 x USB2.0
4 x RJ-45 GbE Lan
2 x DB-9 RS-232/422/485
3 x DB-9 RS-232 (optional)
1 x VGA
1 x HDMI
8 bit digital I/O (4-bit input, 4-bit output) (optional)
1 x SIM slot
1 x Line out, 1 x Mic in
Expansion Slots
Expansion Slots 1 x Full size (co-lay mSATA)
1 x Half size
System
Cooling method / System Fan Fanless
Drive Bays 1 x 2.5"" SATA 3Gb/s HDD/SSD drive bay
Indicator&Buttons
Indicators HDD/Power
Color
Color Blue C
Dimensions
Dimensions 255 x 63 x 150
Weight
Weight 2.2 kg/3 kg
Environment
Operating Temperature -20°C ~ 60°C with air flow
Humidity 5% ~ 95%, non-condensing
