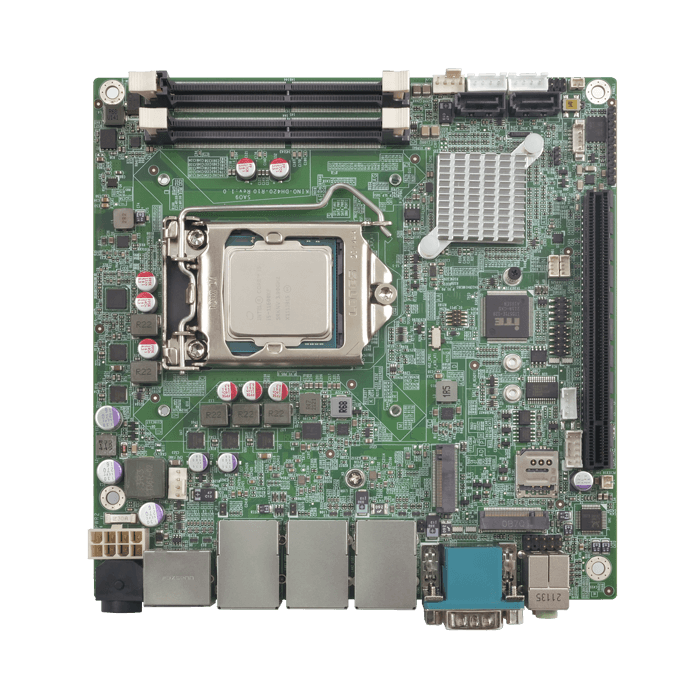

KINO-DH420 Mini-ITX SBC 10th Gen CPU
KINO-DH420 Mini-ITX SBC 10th Gen CPU
Mini-ITX SBC LGA1200 Intel 10th Generation Core i9/i7/i5/i3/Pentium/Celeron, DDR4, dual displays, 3x2.5 GbE LAN, M.2, SATA 6Gb/s, HD Audio and RoHS
Description
Mini-ITX SBC that supports LGA1200 Intel 10th Generation Core i9/i7/i5/i3/ Pentium/Celeron processor, DDR4, dual independent displays, triple 2.5 GbE LAN, M.2, SATA 6Gb/s, HD Audio and RoHS.
Key Features:
- LGA1200 Intel 10th Generation Core i9/i7/i5/i3, Celeron and Pentium processor
- Triple Intel 2.5Gb Ethernet controller
- HDMI, DP and display output
- Support 1 x PCIe Gen3 x16, 1 x M.2 A key, 1 x M.2 B key expansion
More Information
|
Brand |
IEI Integration Corp. |
|
Specifications |
| Form Factor |
| Form Factor |
Mini-ITX Motherboard |
| System |
| CPU |
LGA1200 Intel 10th Generation Core i9/i7/i5/i3, Celeron and Pentium processor |
| Chipset |
Intel H420E |
| Memory |
Two 260-pin 2933 MHz Dual-Channel DDR4 SO-DIMMs supported up to 64GB |
| Memory Max. |
up to 64GB |
| Cooling method / System Fan |
1 x CPU fan connector (1x4 pin)
2 x System fan connector (1x4 pin) |
| Physical Characteristics |
| Dimensions (LxWxH) (mm) |
170mm x 170mm |
| Net Weight |
400g |
| Storage |
| Storage |
2 x SATA : 6Gb/s (no RAID) |
| |
1 x M.2(NGFF) : B key (support NVME storage) |
| I/O Interface |
| Display Output |
1 x HDMI up to 4096 x 2160 @30Hz |
| |
1 x Display Port up to 4096 x 2304 @60Hz |
| Ethernet |
3 x LAN -
LAN1: Intel® i225LM GbE controller (colay i225v)
LAN2: Intel® i225v GbE controller (colay i225LM)
LAN3: Intel® i225v GbE controller (colay i225LM) |
| Audio |
1 x Line out |
| |
1 x Mic |
| |
1 x Front Audio : 2x5 pin |
| |
1 x HD Audio : Realtek ALC888S HD codec |
| I/O Interface |
2 x External RS-232 |
| |
1 x Internal RS-232 : 2x5 pin, P=2.00 |
| |
1 x Internal RS-422/485 : RS-485 support AFC |
| |
2 x External USB 2.0 : Type-A |
| |
4 x External USB 3.2 Gen1x1 : 5Gb/s(Type-A) |
| |
2 x Internal USB 2.0 : 2x4 pin, P=2.00 |
| |
1 x DIO : 8-bit digital I/O (2x5 pin) |
| Expansion |
1 x PCIe x16 |
| |
2 x M.2(NGFF) -
1 x M.2 A key (2230) (PCIe Gen 3 x1/USB 2.0)
1 x M.2 B key (3042/3052/2242/2280) w/ SIM holder (PCIe Gen 3 x2/USB 2.0) |
| Other Features |
| TPM |
Intel® PTT(TPM 2.0) |
| Power |
| Power Consumption |
[email protected] (Intel® Core™ i7-10900E CPU with two 32 GB 2933 MHz DDR4 memory, EuP/ErP mode disabled) |
| Power Supply |
DC 12V input
1 x ATX power connector (2x4 pin)
1 x DIN 4-pin DC Jack
Support AT/ATX mode
ErP/EuP Compliant |
| Environment |
| Operating Temperature |
0°C – 60°C |
| Storage Temperature |
-30°C – 70°C |
| Humidity |
5% ~ 95%, non-condensing |
| Certifications |
| Safety & EMC |
CE/FCC compliant |
| KINO-DH420-R10 |
Mini-ITX SBC supports LGA1200 Intel® 10th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor, DDR4, dual independent displays, triple 2.5GbE LAN, M.2, SATA 6Gb/s, HD Audio and RoHS |
|
