KINO-TGL-U Mini-ITX SBC Cele/i3/i5/i7 9 ~ 36V Triple Independent Displays
KINO-TGL-U Mini-ITX SBC Cele/i3/i5/i7 9 ~ 36V Triple Independent Displays

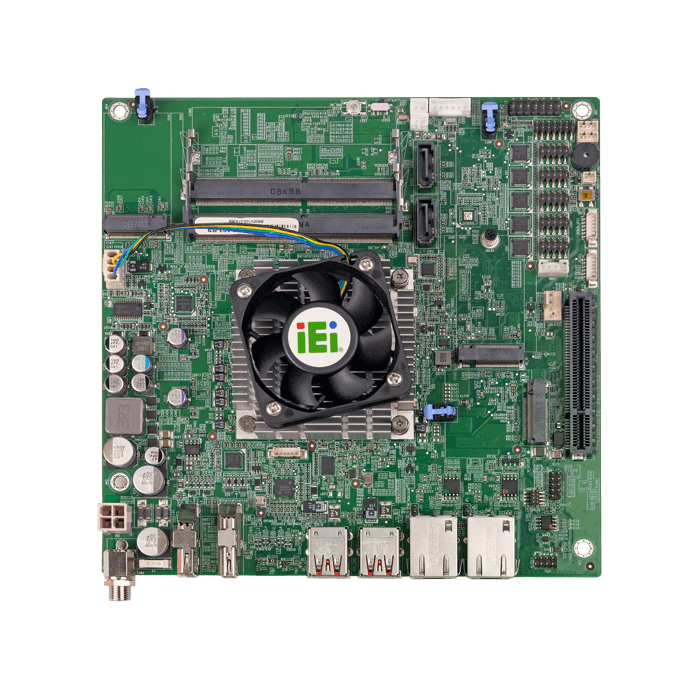

Thin Mini-ITX SBC supports Intel Tiger Lake-UP3 Processor, 9 ~ 36V DC input, triple independent displays, HDMI, DP, iDPM, SATA 6Gb/s, Dual Intel 2.5GbE, USB 3.2 Gen2, M.2 and RoHS
Description
This thin Mini-ITX SBC supports Intel Tiger Lake-UP3 Processor, 9 ~ 36V DC input, triple particularly independent displays, HDMI, DP, iDPM, SATA 6Gb/s, Dual Intel 2.5GbE, USB 3.2 Gen2, M.2 and RoHS.
Key Features:
-
Mini-ITX SBC supports Intel Tiger Lake-UP3, with Intel 11th Gen. Core i7-1185G7E, i5-1145G7E, i3-1115G4E, Celeron 6305 processor
-
Support Triple independent display via HDMI, DP, iDPM
-
Support Dual Intel® 2.5 GbE LAN
-
Support one PCIe Gen4 x 8 slot (x 4 signal), M.2 A key, M.2 M key expansions
More Information
|
Brand |
IEI Integration Corp. |
|
Specifications |
| System |
| CPU |
11th Gen. Intel® Tiger Lake-UP3 Processor
Intel® Core™ i7-1185G7E (up to 4.8GHz, quad-core, 12M Cache, TDP=28/15/12W)
Intel® Core™ i5-1145G7E (up to 4.4GHz, quad-core, 8M Cache, TDP=28/15/12W)
Intel® Core™ i3-1115G4E (up to 4.1GHz, quad-core, 6M Cache, TDP=28/15/12W)
Intel® Celeron® 6305 (up to 1.8GHz, dual-core, 4M Cache, TDP=15W) |
| Memory |
2 x 260-pin 3200 MHz DDR4 SO-DIMM supports up to 64 GB |
| Memory Max. |
up to 64GB |
| Cooling method / System Fan |
1 x CPU fan connector (1x4 pin)
1 x System fan connector (1x4 pin) |
| Storage |
| Storage |
2 x SATA: 6Gb/s with 5V SATA power connector |
| |
1 x M.2(NGFF) : M Key (2242/2280) with PCIe Gen3 x2, support NVME storage |
| I/O Interface |
| Display Output |
1 x HDMI: up to 4096 x 2160@30Hz |
| |
1 x Display Port : up to 4096 x 2160@60Hz |
| |
1 x iDPM: IEI iDPM 3040 slot (only for IEI eDP/LVDS/VGA module) |
| Ethernet |
2 x LAN -
LAN1: Intel® I225V 2.5GbE controller
LAN2: Intel I225V 2.5GbE controller |
| Audio |
1 x HD Audio : 1 x iAUDIO, supporit IEI AC-KIT-888S Audio Module (2 x 5 pin) |
| I/O Interface |
5 x Internal RS-232: 2x5 pin, P=2.0 |
| |
1 x Internal RS-422/485: 2x5 pin, P=2.00, RS-485 support AFC |
| |
2 x Internal USB 2.0 : 2x4 pin, P=2.00 |
| |
1 x DIO : 12-bit digital I/O (2x7 pin) |
| |
4 x External USB 3.2 Gen2x1 : 10Gb/s |
| Expansion |
1 x PCIe x8 : x 4 signal |
| |
2 x M.2(NGFF) -
1 x M.2 A key (2230) with PCIe Gen3 x1/USB 2.0
1 x M.2 M key (2280/2242) with PCIe Gen3 x2 |
| Other Features |
| TPM |
Intel PTT(TPM 2.0) |
| Power |
| Power Consumption |
[email protected], [email protected], [email protected], [email protected] (Intel Core i7-1185G7E CPU with one 8 GB 2933 MHz DDR4 SO-DIMM) |
| Power Supply |
9 ~ 36V DC input
1 x Internal power connector (2x2 pin)
1 x External DC power Jack (Ø5.5mm)
ERP/EuP Compliant |
| Environment |
| Operating Temperature |
0°C ~ 60°C |
| Storage Temperature |
-30°C ~ 70°C |
| Humidity |
5% ~ 95%, non-condensing |
| Certifications |
| Safety & EMC |
CE/FCC compliant |
|
