KIWI310 1.8" SBC Celeron N3350

In stock
SKU:
KIWI310
Brand: Axiomtek

1.8" SBC with Intel® Celeron® Processor N3350, Micro HDMI, 1 GbE LAN, 2 USB3.0 and 40-pin GPIO

Key Features:

  • Intel Celeron processor N3350
  • On-board LPDDR4 for up to 4GB of memory
  • 1 GbE LAN
  • On-board eMMC for up to 64GB
  • M.2 Key E
  • 40-pin GPIO
  • Supports operating systems: Linux, Android, Windows

Enquire Now
Enquire about this product:

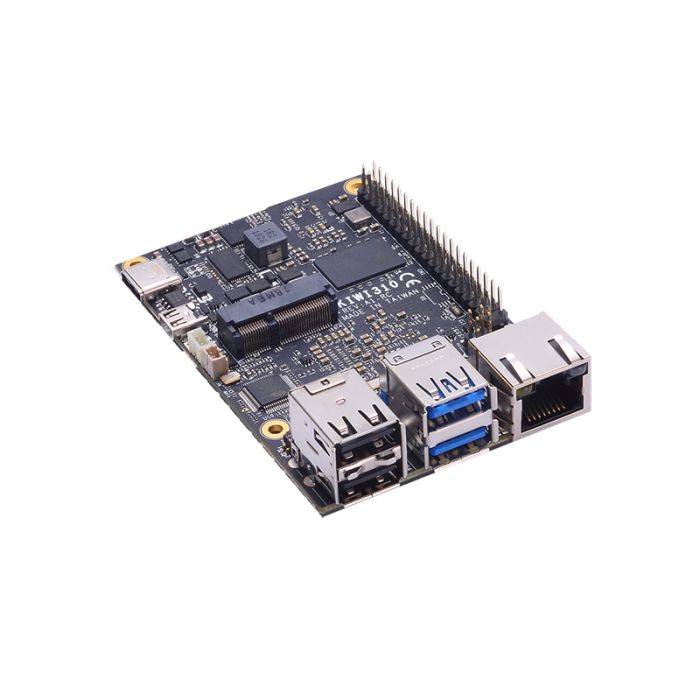

KIWI310 is an ultra-compact 1.8" SBC with Intel® Celeron® processor N3350 (1.1 - 2.4 GHz, 2MB cache, 6W), Micro HDMI, 1 GbE LAN, 2 USB 2.0, and 2 USB 3.0. Designed as a USB PD it allows easy integration into medical or other diagnostic equipment or DOOH applications.

Key Features:

  • Intel Celeron processor N3350
  • On-board LPDDR4 for up to 4GB of memory
  • 1 GbE LAN
  • On-board eMMC for up to 64GB
  • M.2 Key E
  • 40-pin GPIO
  • Supports operating systems: Linux, Android, Windows

This product is listed in Digital Signage, Industrial Automation, Gaming, Medical, Transport, Axiomtek, Embedded Boards
CPU
  • Intel® Celeron® processor N3350
Chipset
  • SoC integrated
System Memory
  • On-board LPDDR4, up to 8GB
BIOS
  • AMI
COM
  • N/A
USB
  • 2 x USB 2.0
  • 2 x USB 3.0
Ethernet
  • 1 x 10/100/1000 Mbps Ethernet (REALTEK RTL8111)
Display
  • 1 x Micro HDMI
Audio
  • N/A
Storage
  • eMMC, up to 64GB
Expansion
  • 1 x M.2 Key E (USB2.0, PCIe) in 2230
  • 40-pin GPIO includes UART, I2C, SPI, GPIO
Others
  • N/A
Battery
  • Lithium 3V/220 mAh
Power Input
  • USB PD (supports USB Type C PD 2.0, 9V/3A, 12V/3A, 15V/3A, 20V/3A)
Power Requirements
  • Intel® Celeron® N3350 @ 1.1 GHz 8GB LPDDR4
  • USB Type C PD 2.0, 9V/3A, 12V/3A, 15V/3A, 20V/3A
Watchdog Timer
  • 255 levels, 1 to 255 sec
Hardware Monitoring
  • Yes
Operating Temperature
  • 0°C to +60°C (+32° F to 140° F)
Relative Humidity
  • 10% to 95% relative humidity, non-condensing
Dimensions
  • 85mm × 56mm
Board Thickness
  • 1.6 mm
Certifications
  • CE
