LPBEM-6-60 - Magnetic Mount SiSo LTE 5G/4G/3G/2G

In stock
LPBEM-6-60-2SP (2m coax)
Brand: Panorama Antennas

Mag mount SiSo 617-960MHz and 1710-6000MHz

Enquire Now
Enquire about this product:

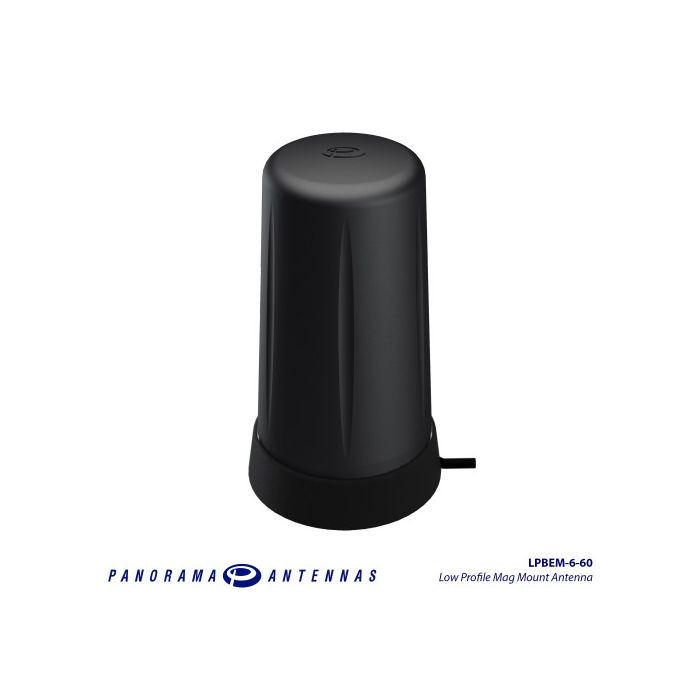

The Panorama LPBEM-6-60 is low cost high performance magnetic mount antennas. Only 95mm (3.7'') high and protected by a robust high impact radome the antenna is almost impervious to daily wear and tear.

The LPBEM offers excellent performance across a wide bandwidth. The LPBEM covers global cellular and LTE frequencies from 617-960MHz and 1710-6000MHz making it an extremely versatile product.

Supplied with a convenient length of flexible RG174 cable the LPBEM is easy to install and compatible with a large range of modems. Multiple units can be deployed suitably separated to implement a MiMo solution.

This product is listed in Digital Signage, Industrial Automation, Mining, Transport, Panorama Antennas
Electrical Data
LTE Frequencies 617-960/1710-6000MHz
Peak Gain (dBi) 8
Max Input Power (W) 25
Pattern Omni-directional
Mechanical Data
Available Colours Black
Height (mm) 96 (3.7”)
Diameter (mm) 48 (1.89”)
Operating Temperature -40 / +80°C
Mounting Data
Mounting Type Magnetic Mount
