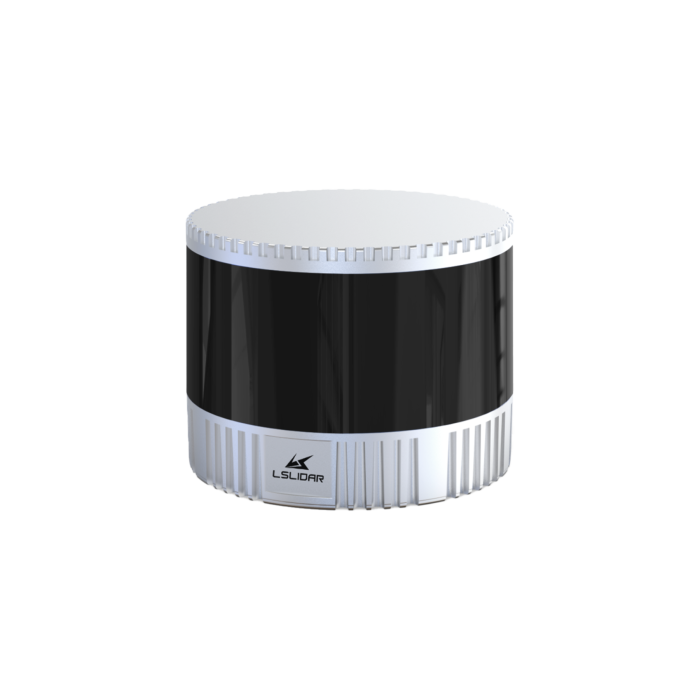

LSLiDAR C4/C8 4/8-Line Mechanical LiDAR

Product Overview

The LSLiDAR C4 and C8 are compact multi-line mechanical LiDAR sensors designed for reliable 3D perception, obstacle detection and mapping in industrial and autonomous environments. Using 4 or 8 laser channels, they deliver full 360-degree scanning with consistent accuracy and stable performance. Built on time of flight technology, these sensors provide a balance of range, resolution and cost effectiveness, making them suitable for applications such as robotics, intelligent transport, logistics and industrial automation.

Key Features

Multi-Line 3D Scanning

• Available in 4-channel and 8-channel configurations for different performance needs

• Full 360-degree horizontal field of view for complete environmental coverage

• Vertical field of view around ±12 degrees for reliable 3D perception

• Designed for efficient spatial awareness in compact deployments

High Speed Point Cloud Output

• Generates dense point cloud data for real-time detection and mapping

• Dual return capability improves detection in complex environments

• Adjustable scan frequency from 5 Hz to 20 Hz for real-time responsiveness

• Suitable for navigation, mapping and obstacle detection systems

Accurate and Stable Measurement

• Detection range up to approximately 120 metres, depending on reflectivity

• High precision with accuracy around ±1 cm to ±3 cm

• Time of flight measurement ensures consistent distance calculation

• Reliable performance across varying surfaces and lighting conditions

Compact and Rugged Design

• IP67-rated enclosure for protection against dust and water

• Designed to withstand vibration and shock in mobile and industrial use

• Operating temperature range from -20 °C to 60 °C

• Compact cylindrical housing for easy integration

Flexible Integration

• An Ethernet communication interface for data transmission

• Supports GPS timing and synchronisation for accurate data alignment

• Wide DC input range suitable for industrial systems

• Compatible with robotics, vehicle platforms and fixed installations

Applications and Use Cases

The C4 and C8 are suitable for:

• Robotics and automated guided vehicles

• Autonomous driving and ADAS development

• Intelligent transport and traffic monitoring

• Industrial automation and safety systems

• Mapping, surveying and environmental perception
