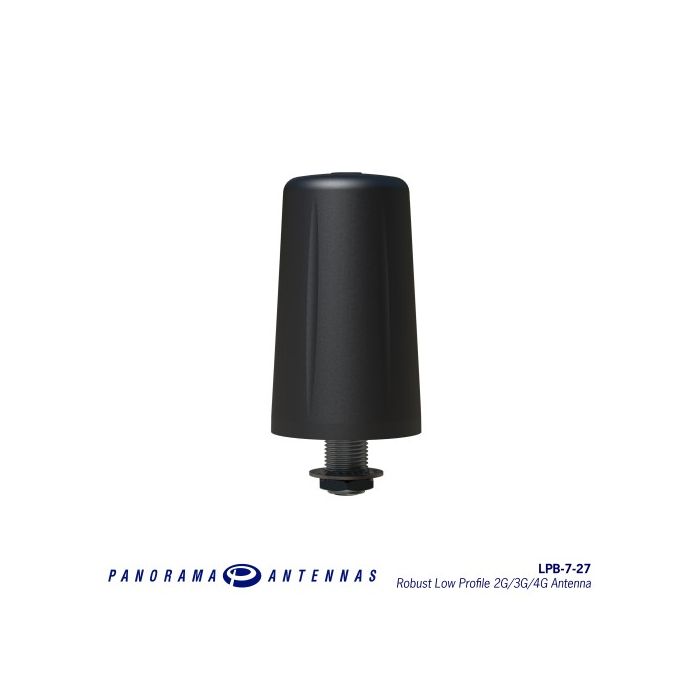

LTE Rugged bolt mount 2m coax
In stock
SKU:
LPB-7-27-2SP
Brand: Panorama Antennas
Low Profile Antenna 700-3800MHz, bolt mount and SMA connector
Downloads:
Enquire Now
Enquire about this product
Multiband Omni Directional Panel Mount Antenna
Height
82mm / 8cm
Diameter
48mm / 5cm
Gain
3dBi at 700MHz / 3dBi at 850MHz / 4dBi at 900MHz / 4dBi at 1800MHz / 5dBi at 2100MHz - 2700MHz
Cable
2m of 5mm Low Loss Coax with SMA Male Plug Fitted
| Electrical Data | |
| 2G/3G/4G Frequencies | 698-960/1710-3800MHz |
| Typical VSWR | <2:1 |
| Peak Gain (dBi) | 5 |
| Max Input Power (W) | 25 |
| Pattern | Omni-directional |
| Ground Plane Independent | Yes |
| Mechanical Data | |
| Available Colours | Black |
| Height (mm) | 95 |
| Diameter (mm) | 48 |
| Operating Temperature | -40 / + 80°C |
| Mounting Data | |
| Mounting Type | Bolt Mount |
