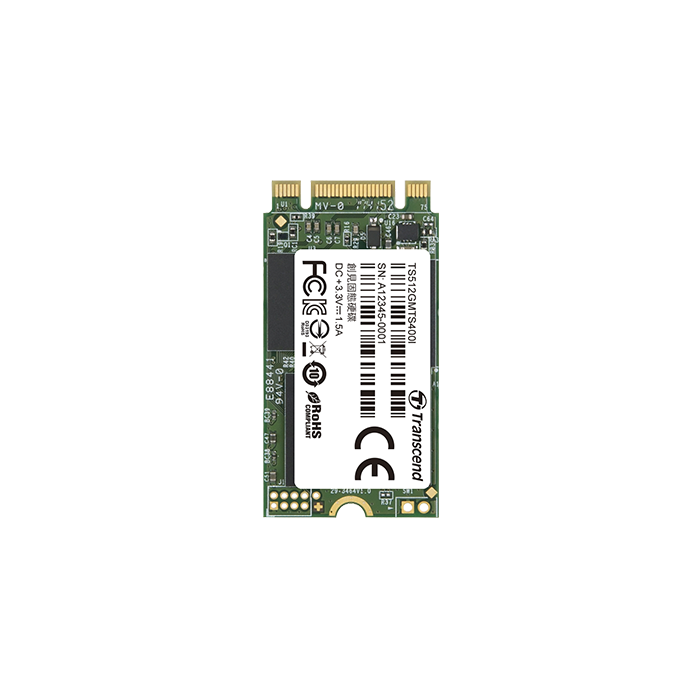

M.2 SSD 400I Series
Description
Industrial SATA III M.2 SSD
· Fully compatible with SATA III M.2 SSD standards
· Built-in ECC and Wear-leveling algorithm ensure reliable data transfer
· Supports partial, slumber, and DEVSLP mode
· SuperMLC technology allows MLC NAND to act as SLC NAND
· Optional support for write protect and hardware purge security functions
· DDR3 DRAM cache
Download
More Information
| Specifications |
Dimensions (Max.) 42.0 mm x 22.0 mm x 3.58 mm (1.65" x 0.87" x 0.14") Weight (Max.) 4 g (0.14 oz) Form Factor M.2 M.2 Type 2242-D2-B-M
Bus Interface SATA III 6Gb/s
Flash Type MLC NAND flash Capacity 32 GB/ 512 GB
Operating Voltage 3.3V±5% Operating Temperature -40°C (-40°F) ~ 85°C (185°F) Storage Temperature -40°C (-40°F) ~ 85°C (185°F) Humidity 0% ~ 95% Shock 1500 G, 0.5 ms, 3 axis Vibration (Operating) 3 G (peak-to-peak), 5 Hz ~ 800 Hz (frequency) Vibration (Non-operating) 5 G (peak-to-peak), 5 Hz ~ 800 Hz (frequency)
Power Consumption (Operation) 3.67 watt(s) Power Consumption (Sleep) 0.55 watt(s)
Read Speed (Max.) 560 MB/s Write Speed (Max.) 460 MB/s MTBF 1,500,000 hour(s) |
|---|
