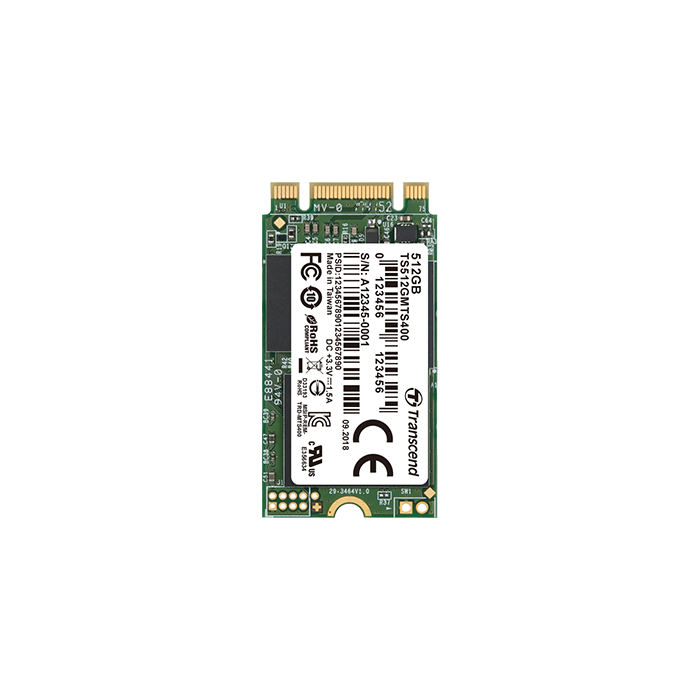

M.2 SSD MTS400

In stock
SKU:
MTS400 & MTS400-I
Brand: Transcend

Industrial SATA III M.2 SSD



M.2 2242 SATA

16~512GB MLC Flash

Std and Wide temp


Enquire Now
Enquire about this product:

M.2 SSD MTS400



·         Advanced global wear-Leveling and block management for reliability

·         Built-in ECC (Error Correction Code) functionality

·         Features a DDR3 DRAM cache

·         Supports DEVSLP mode

·         Supports Advanced Garbage Collection

·         Supports enhanced S.M.A.R.T. function

·         Real time full drive encryption with Advanced Encryption Standard (AES) (Optional)

·         Supports partial and slumber mode

·         Supports security command

·         Supports Transcend SSD scope pro (Optional)

·         RoHS compliant


This product is listed in Transcend
Dimensions 42.0 mm x 22.0 mm x 3.58 mm (1.65" x 0.87" x 0.14")
Weight 5 g (0.18 oz)
Form Factor
  • M.2
M.2 Type
  • 2242-D2-B-M

Interface

Bus Interface
  • SATA III 6Gb/s

Storage

Flash Type
  • MLC NAND flash
Capacity
  • 16 GB/
  • 32 GB/
  • 64 GB/
  • 128 GB/
  • 256 GB/
  • 512 GB

Operating Environment

Operating Voltage
  • 3.3V±5%
Operating Temperature
  • Standard
    0°C (32°F) ~ 70°C (158°F)
  •
  • Wide Temp.
    -40°C (-40°F) ~ 85°C (185°F)
Storage Temperature -40°C (-40°F) ~ 85°C (185°F)
Humidity 0% ~ 95%
Shock
  • 1500 G, 0.5 ms, 3 axis
Vibration (Operating) 3 G (peak-to-peak), 5 Hz ~ 800 Hz (frequency)
Vibration (Non-operating) 5 G (peak-to-peak), 5 Hz ~ 800 Hz (frequency)

Power

Power Consumption (Operation) 2.5 watt(s)
Power Consumption (Sleep) 0.5 watt(s)

Performance

Sequential Read/Write (CrystalDiskMark, max.) Read: 530 MB/s
Write: 470 MB/s
4K Random Read/Write (IOmeter, max.) Read: 70,000 IOPS
Write: 70,000 IOPS
Mean Time Between Failures (MTBF) 1,500,000 hour(s)
Terabytes Written (Max.) 1,100 TB
Drive Writes Per Day (DWPD) 2 (3 yrs)
Note
  • Speed may vary due to host hardware, software, usage, and storage capacity.

Warranty

Certificate
  • CE/
  • FCC/
  • BSMI
