Shop MANO500 Mini-ITX SBC 6th/7th Gen

SKU: MANO500 - 7th gen LGA1151 CPU

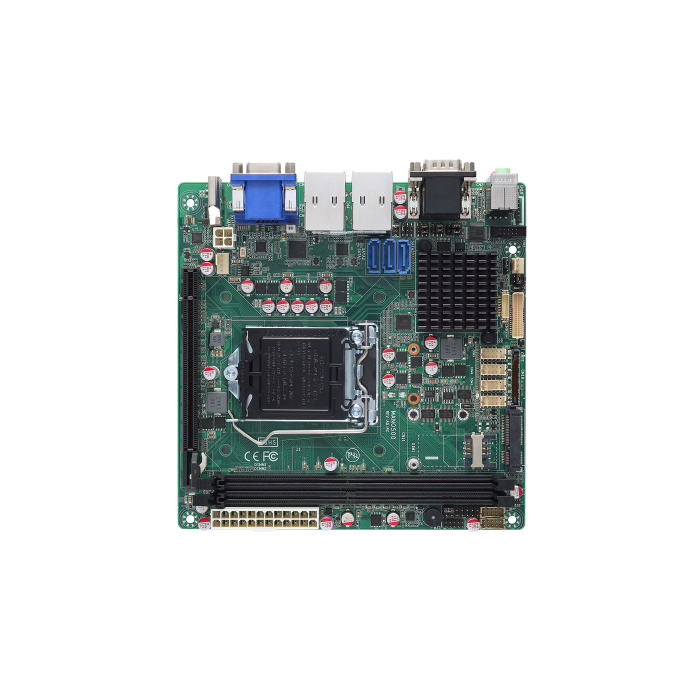

Mini-ITX SBC with LGA1151 Socket 6th/7th Gen Intel® Core™ Processor, Intel® H110/Q170, HDMI/DisplayPort/VGA/LVDS/eDP, Dual LANs and USB 3.0

Datasheet

Description

LGA1151 socket 6th/7th gen Intel® Core™ i7/i5/i3, Pentium® & Celeron® processor (Skylake/Kaby Lake)

Intel® H110/Q170 chipset

2 DDR4-2133 Long-DIMM, up to 32GB

1 PCIe x16 slot

1 PCI Express Mini Card slot and SIM card slot

3 SATA-600 and 1 mSATA

4 USB 3.0 and 4 USB 2.0

Data sheet

Brand

Axiomtek

Specifications

CPU	LGA1151 socket 7th/6th generation Intel® Core™ i7/i5/i3, Pentium® & Celeron® processors
Chipset	Intel® H110/Q170
System Memory	2 x 288-pin Long-DIMM dual channel DDR4-2133/2400, up to 32GB
BIOS	AMI
COM	1 x RS-232/422/485 with 5V/12V powered 5 x RS-232
USB	4 x USB 3.0 4 x USB 2.0
Ethernet	1 x 10/100/1000 Mbps (Intel® i219LM) 1 x 10/100/1000 Mbps(Intel® i211AT)
Display	1 x HDMI 1 x VGA 1 x DisplayPort 1 x LVDS 1 x eDP (co-lay with LVDS) (optional)
Digital I/O	8 channels programmable
Audio	Mic-in/Line-out
Storage	3 x SATA-600 1 x mSATA
Expansion	1 x PCIe x16 1 x PCI Express Mini Card 1 x SIM card slot
Others	1 x PS/2 keyboard & mouse
Battery	Lithium 3 V/220 mAH
Power Input	2 x 12 ATX connector ATX power AT Auto Power On function supported
Watchdog Timer	255 level, 1 to 255 sec.
Hardware Monitoring	Yes
Operating Temperature	0°C to +60°C (+32°F to +140°F)
Relative Humidity	10% - 95% relative humidity, non-condensing
Dimensions	170 x 170 mm
Board Thickness	1.6 mm
Certifications	CE
