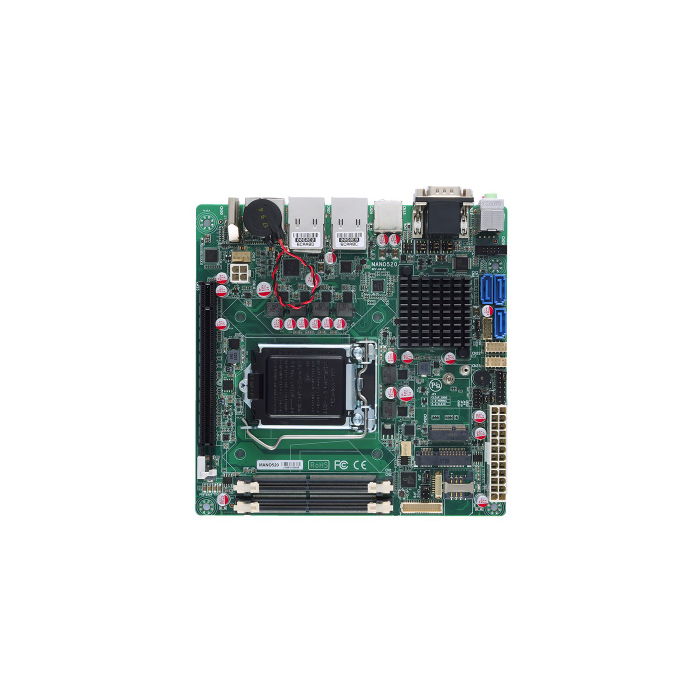

Shop MANO520 Mini-ITX SBC 9th Gen i7/i5/i3

SKU: MANO520PHGGA-H310

Mini-ITX SBC with LGA1151 9th/8th Gen Intel® Core™ i7/i5/i3 Processor, Dual DisplayPort++, HDMI, LVDS, USB 3.0, mSATA, M.2 and Dual GbE LAN

Datasheet

Description

LGA1151 9th/8th gen Intel® Core™ i7/i5/i3 processor

Intel® H310 chipset (Q370 optional)

2 DDR4 SO-DIMM for up to 32GB of memory

4 USB 3.0 and 4 USB 2.0

4 COM ports

3 SATA-600 and 1 mSATA

PCIe x16 and M.2 Key E

Data sheet

Brand

Axiomtek

Specifications

CPU	LGA1151 9th/8th gen Intel® Core™ i7/i5/i3, Intel® Pentium® processors Gold/Celeron® processors (up to 65W)
Chipset	Intel® H310 Intel® Q370 (optional)
System Memory	2 x 260-pin SO-DIMM DDR4-2666/2400, up to 32GB
BIOS	AMI
COM	1 x RS-232/422/485 (with +5V/+12V power) 3 x RS-232
USB	4 x USB 3.0 4 x USB 2.0
Ethernet	2 x 10/100/1000 Mbps (Intel® i211-AT; Intel® i219-LM)
Display	2 x DisplayPort++ 1 x HDMI 1.4b (3840 x 2160 @30Hz) 1 x LVDS
Digital I/O	8-channel in/out programmed
Audio	MIC-in/Line-in/Line-out
Storage	3 x SATA-600 1 x mSATA
Expansion	1 x PCIe x16 1 x M.2 Key E 22 x 30
Others	Onboard TPM 2.0 (optional)
Battery	Lithium 3V/220mAH
Power Input	Standard 12V ATX power 24+4 pin ATX connector AT Mode Auto Power Function supported
Watchdog Timer	255 levels, 1 to 255 sec.
Hardware Monitoring	Yes
Operating Temperature	0°C to +60°C (+32°F to +140°F)
Relative Humidity	10% to 95% relative humidity, non-condensing
Dimensions	170 x 170 mm
Board Thickness	1.6 mm
Certifications	CE
