MANO522 - LGA1151 8th Gen Intel® Core™ i7/i5/i3 Processor
Brand: Axiomtek

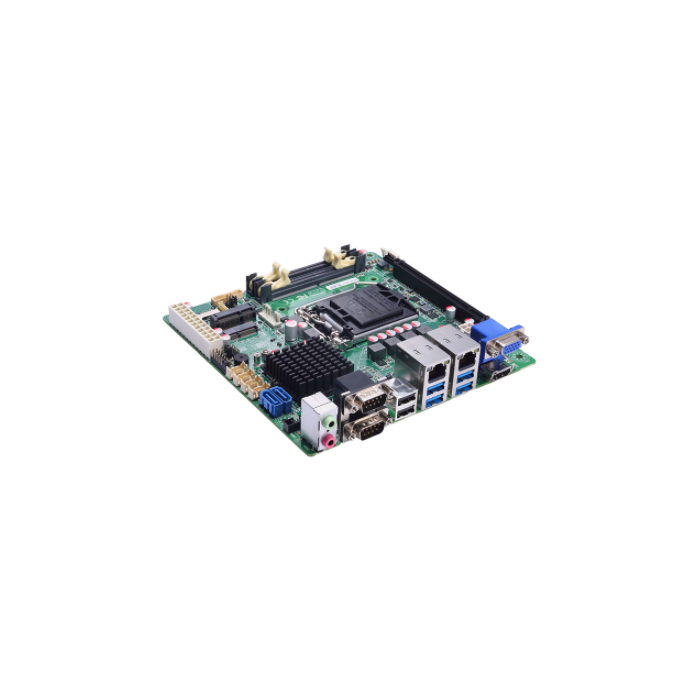

Mini-ITX SBC with LGA1151 8th Gen Intel® Core™ i7/i5/i3 Processor, HDMI, VGA, LVDS, USB 3.2 Gen 1, mSATA, M.2 and Dual GbE LAN

Enquire Now

Please fill in your details below, we will get back to you as soon as possible

MANO522 is powered by the LGA1151 socket 9th/8th generation Intel® Core™ i7/i5/i3 CPU with the Intel® H310 chipset. Contained in a small form factor of 17 x 17 cm, this industrial motherboard is an excellent choice for space-constrained environments. Its high computing power, 4K-ready and high expandability make it well-suited for intelligent transportation, factory automation, self-service kiosks, infotainment, and digital signage. This industrial Mini ITX motherboard is integrated with Intel® integrated Gfx graphics engine with UHD 4K resolution and provides rapid video acceleration and dual-view capability through the VGA, HDMI and LVDS. To guarantee reliable operation, the MANO522 has a wide operating temperature range of 0°C to 60°C. It also supports watchdog timer and hardware monitoring, and offers Trusted Platform Module 2.0 (TPM 2.0) for optimum security.

 LGA1151 8th gen Intel® Core™ i7/i5/i3 processor

Intel® H310 chipset

2 DDR4 SO-DIMM for up to 64GB of memory

4 USB 3.2 Gen 1 and 2 USB 2.0

6 COM ports

2 SATA-600 and 1 mSATA

PCIe x16 and M.2 Key E

Single board computers, Industrial computers

CPU
  • LGA1151 8th gen Intel® Core™ i7/i5/i3 processor (up to 65W)
Chipset
  • Intel® H310
System Memory
  • 2 x 260-pin DDR4-2666/2400 SO-DIMM up to 64GB
BIOS
  • AMI
COM
  • 1 x RS-232/422/485 (with +5V/+12V power)
  • 5 x RS-232
USB
  • 4 x USB 3.2 Gen 1
  • 2 x USB 2.0
Ethernet
  • 1 x 10/100/1000 Mbps Ethernet with Intel® i211-AT; supports Wake-on-LAN, PXE Boot ROM
  • 1 x 10/100/1000 Mbps Ethernet with Intel® i219-LM; supports Wake-on-LAN, PXE Boot ROM
Display
  • 1 x VGA
  • 1 x HDMI
  • 1 x LVDS; 18/24-bit single/dual-channel
Digital I/O
  • 8-channel in/out programmable
Audio
  • MIC-in/Line-in/Line-out
Storage
  • 1 x mSATA
  • 2 x SATA-600
Expansion
  • 1 x PCIe x16
  • 1 x M.2 Key E 22 x 30
Others
  • 24+4 pin ATX connector
  • AT Mode Auto Power Function supported
Battery
  • Lithium 3V/220mAH
Power Input
  • 24+4 pin ATX connector
  • AT Mode Auto Power Function supported
Watchdog Timer
  • 255 levels, 1 to 255 sec.
Hardware Monitoring
  • Detect CPU/system temperature, voltage and fan speed
Operating Temperature
  • 0°C to +60°C (+32°F to +140°F)
Relative Humidity
  • 10% to 95% relative humidity, non-condensing
Dimensions
  • 170 x 170 mm
Board Thickness
  • 1.6 mm
Certifications
  • CE
