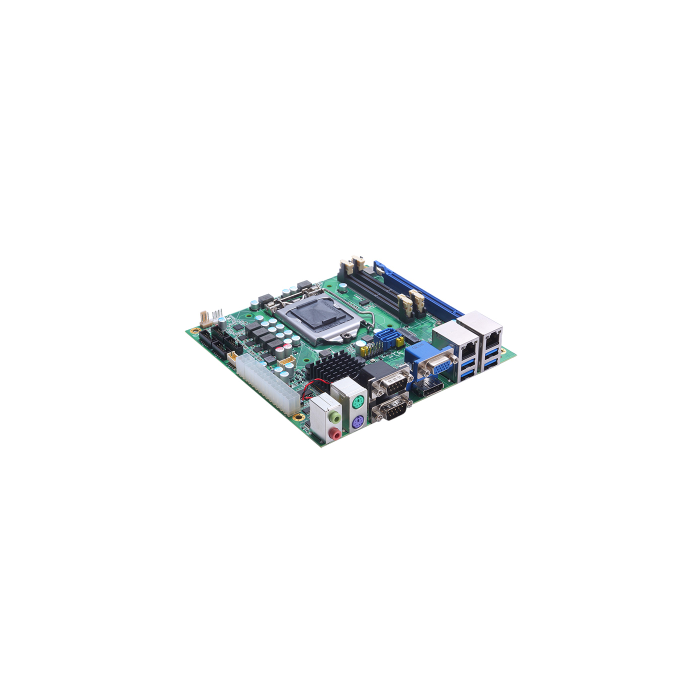

Shop MANO523 i7/i5/i3 Mini-ITX Motherboard

End of Life

SKU: MANO523

Mini-ITX SBC with LGA1151 9th/8th gen Intel® Core™ processor, Intel® Q370, VGA, DisplayPort++, eDP, 2 GbE LAN and HD Audio

Datasheet

Description

LGA1151 9th/8th gen Intel® Core™ i7/i5/i3 processor

Intel® Q370 chipset

2 DDR4 SO-DIMM for up to 32GB of memory

4 USB 3.0 and 4 USB 2.0

6 COM ports

2 SATA-600 and 1 M.2 Key M

PCIe x16 and M.2 Key E

Data sheet

Brand

Axiomtek

Specifications

CPU	LGA1151 9th/8th gen Intel® Core™ i7/i5/i3, Intel® Pentium® processors Gold/Celeron® processors (up to 65W)
Chipset	Intel® Q370
System Memory	2 x 260-pin DDR4-2666/2400 SO-DIMM, up to 32GB
BIOS	AMI
COM	1 x RS-232/422/485 (with +5V/+12V power) 5 x RS-232
USB	4 x USB 3.0 4 x USB 2.0
Ethernet	2 x 10/100/1000 Mbps (Intel® i211-AT & Intel® i219-LM)
Display	1 x DisplayPort++ 1 x eDP 1 x VGA
Digital I/O	8-channel in/out programmed
Audio	MIC-in/Line-in/Line-out
Storage	2 x SATA-600 1 x M.2 Key M (2242/2260/2280); supports NVMe
Expansion	1 x PCIe x16 1 x M.2 Key E (22 x 30)
Others	Onboard TPM 2.0
Battery	Lithium 3V/220mAH
Power Input	STD 12V ATX power 24+4 pin ATX connector AT Mode Auto Power Function supported
Watchdog Timer	255 levels, 1 to 255 sec.
Hardware Monitoring	Yes
Operating Temperature	0°C to +60°C (+32°F to +140°F)
Relative Humidity	10% to 95% relative humidity, non-condensing
Dimensions	170 x 170 mm
Board Thickness	1.6 mm
Certifications	CE
