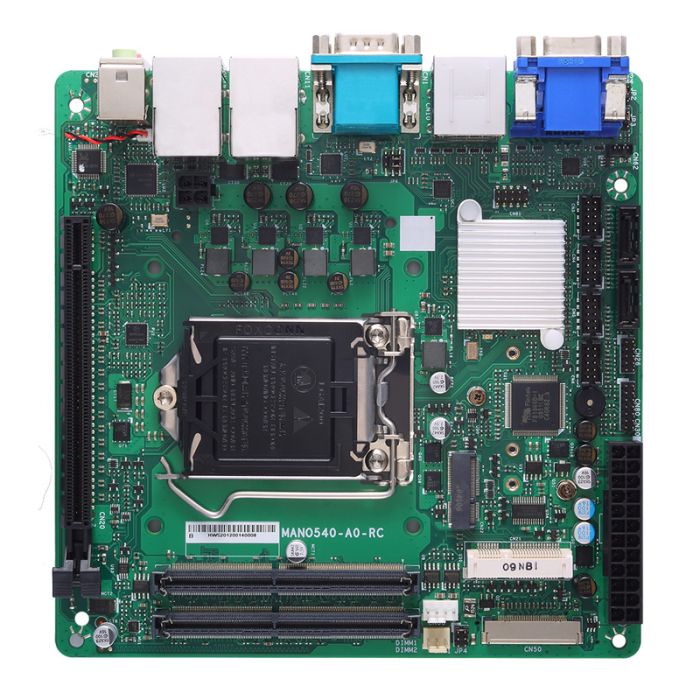

MANO540 - Mini-ITX SBC 10th Gen Core™ i9/i7/i5/i3

In stock
SKU:
MANO540VHDGGA-H410
Brand: Axiomtek

10th Gen Core™ i9/i7/i5/i3 DisplayPort++, HDMI, VGA, eDP, USB 3.2, M.2 and Dual GbE LAN

Enquire Now

Please fill in your details below, we will get back to you as soon as possible

Advanced 10th Generation mini ITX motherboard with latest H410 chipset. Single PCIe x16 and 2 x USB 3.2 makes it a high performance solution for emebded applications.

  • FCLGA1200 10th gen Intel® Core™ i9/i7/i5/i3 processor
  • Intel® H410 chipset
  • 2 DDR4 SO-DIMM for up to 64GB memory
  • 2 USB 3.2 Gen1 and 5 USB 2.0
  • 6 COM port
  • 1 PCIe x16 and 1 M.2 Key E slot
  • 1 Full-size mini-PCIe slot
  • 2 SATA-600
  • 1 M.2 Key B for USB 3.2 interface 5G module
  • Single board computers, Industrial computers

Axiomtek's MANO540 with 10th Gen Intel® Core™ Processor Accelerates Edge Computing Applications. A mini-ITX motherboard powered by the FCLGA1200 10th Gen Intel® Core™ i9/i7/i5/i3 processor (codename: Comet Lake) with the Intel® H410 chipset. It also supports two 260-pin DDR4-2933/2666/2400 SO-DIMM sockets for up to 64GB of memory. With a small form factor of 17 x 17 cm, this industrial motherboard is an excellent choice for space-constrained environments. The advanced MANO540 is specifically designed for performance-demanding applications with its excellent reliability as well as communication and edge computing capabilities.

CPU
  • FCLGA1200 10th gen Intel® Core™ i9/i7/i5/i3, Intel® Pentium® processors Gold/Celeron® processors (up to 65W)
Chipset
  • Intel® H410
System Memory
  • 2 x 260-pin DDR4-2933/2666/2400 SO-DIMM, up to 64GB
BIOS
  • AMI
COM
  • 1 x RS-232/422/485 (with +5V/+12V power)
  • 1 x RS-232
USB
  • 2 x USB 3.2 Gen1
  • 5 x USB 2.0
Ethernet
  • 1 x 10/100/1000 Mbps Ethernet (Intel® i211-AT & Intel® i219-LM)
Display
  • 1 x DisplayPort++
  • 1 x HDMI 2.0
  • 1 x eDP
  • 1 x VGA
Digital I/O
  • 8-channel in/out programmed
Audio
  • MIC-in/Line-in/Line-out
Storage
  • 1 x M.2 Key B 2242/2280/3042/3052 (optional)
  • 2 x SATA-600
Expansion
  • 1 x PCIe x16
  • 1 x M.2 Key B
  • 1 x M.2 Key E 2230
  • 1 x mini-PCIe
Others
  • Onboard TPM 2.0 (optional)
Battery
  • Lithium 3V/220mAH
Power Input
  • Standard 12V ATX power
  • 24+4 pin ATX connector
  • AT Mode Auto Power Function supported
Watchdog Timer
  • 255 levels, 1 to 255 sec.
Hardware Monitoring
  • Yes
Operating Temperature
  • 0°C to +60°C (+32°F to +140°F)
Relative Humidity
  • 10% - 95% relative humidity, non-condensing
Dimensions
  • 170 x 170 mm
Board Thickness
  • 1.6 mm
Certifications
  • CE
We build to order
