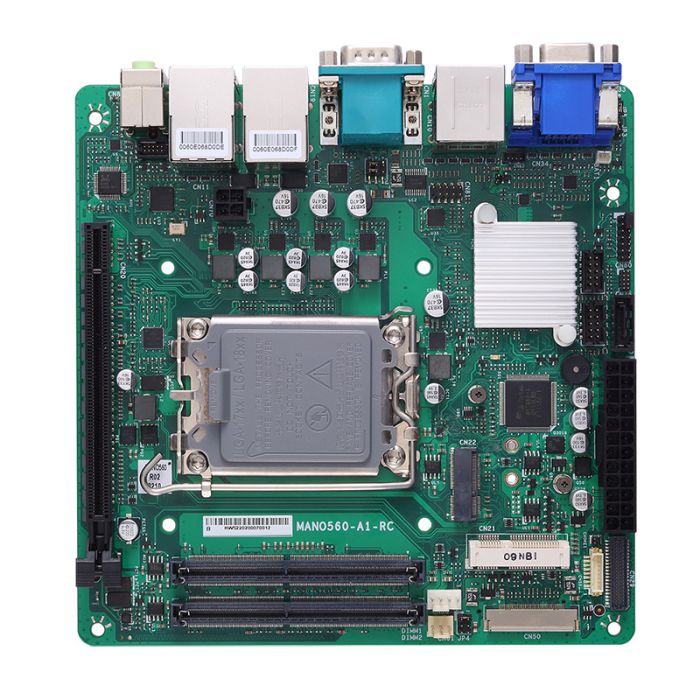

MANO560 Mini-ITX Motherboard with 14/13th Gen
Mini-ITX SBC with LGA1700 14th/13th/12th Gen Intel Core i9/i7/i5/i3 Pentium or Celeron Processor, DisplayPort, HDMI, VGA, LVDS, USB 3.2, M.2, and Dual GbE LAN
Key Features:
- LGA1700 14th/13th/12th gen Intel® Core™ i9/i7/i5/i3, Pentium® or Celeron® processor
- Intel® H610 chipset
- 2 DDR4 SO-DIMM for up to 64GB memory
- 2 USB 3.2 Gen1 and 5 USB 2.0
- 4 COM ports
- 1 PCIe x16 and 1 M.2 Key E slot
- 1 full-size PCI Express Mini Card slot
- 1 SATA-600
- 1 M.2 Key B for USB 3.2 interface 5G module
Description
The Axiomtek MANO560 is a high-performance Mini-ITX motherboard designed to support 12th Gen Intel® Core™ processors. Engineered for reliability and efficiency, the MANO560 offers a robust solution for embedded systems and industrial applications. With a range of advanced features, this motherboard ensures superior performance and flexibility.
Key Features:
- 12th Gen Intel® Core™ Processor Support: Compatible with the latest Intel® Core™ i9/i7/i5/i3, Pentium® and Celeron® processors, delivering outstanding computing power and performance.
- Dual-Channel DDR4 Memory: Supports up to 64GB of DDR4-3200 memory for high-speed data processing and multitasking.
- Rich I/O Options: Includes six USB 3.2 Gen2 ports, two USB 2.0 ports, four COM ports, dual Gigabit Ethernet ports, and HDMI, DisplayPort, and LVDS interfaces for versatile connectivity and display options.
- Expansion Capabilities: Features one PCIe x16 slot and one M.2 Key M slot for SSD storage and additional expansions, providing flexibility for various application needs.
- Advanced Graphics: Integrated Intel® UHD Graphics supports up to three independent displays, ensuring high-quality visuals and smooth performance for multimedia applications.
- Industrial-Grade Reliability: Designed to operate in harsh environments, the MANO560 offers extended temperature support from 0°C to 60°C and comes with a 12V DC power input.
- Compact Form Factor: The Mini-ITX form factor (170 x 170 mm) makes it ideal for space-constrained applications, ensuring easy integration into a variety of systems.
Applications:
The Axiomtek MANO560 is perfect for a wide range of applications, including:
- Digital Signage: Enhance advertising and information display systems with powerful graphics and reliable performance.
- Medical Imaging: Deliver precise and detailed medical images for better diagnostics and patient care.
- Industrial Automation: Improve efficiency and control in industrial processes with robust computing capabilities.
- Retail Solutions: Power advanced point-of-sale systems and enhance customer experiences.
Experience enhanced performance and superior reliability with the Axiomtek MANO560, a versatile and powerful solution for modern embedded and industrial applications.
Download
More Information
| Brand | Axiomtek | ||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specifications |
|
