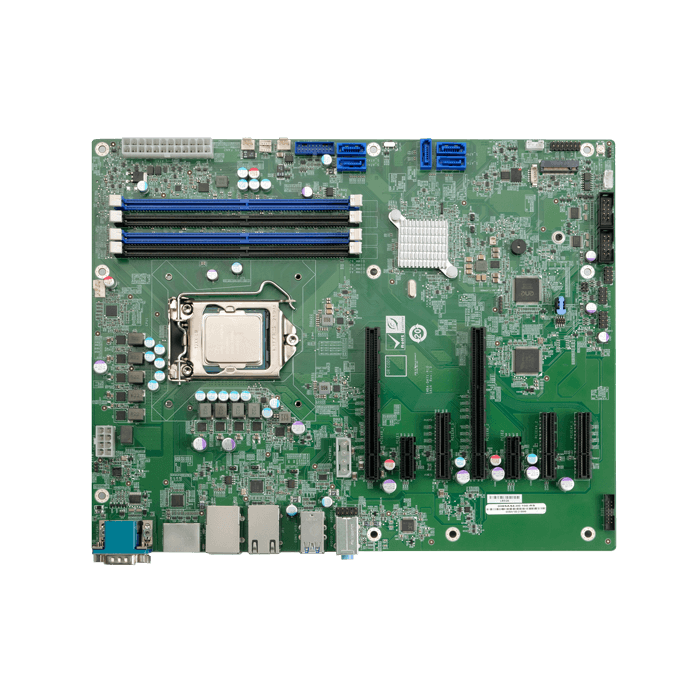

ATX industrial motherboard supporting 10th/11th Intel Core i9/i7/i5/i3, Celeron, Pentium processors
Description
ATX MB supports LGA1200 Intel 10th/11th Generation Core i9/i7/i5/i3, Celeron and Pentium processor, DDR4, triple independent displays, triple 2.5GbE LAN, pure PCIe slots M.2, USB 3.2, SATA 6Gb/s, HD Audio and RoHS
Key Features:
- Support HDMI, DP, VGA triple independent display output
- Support triple Intel i225V 2.5GbE controller
- Support 2 x PCIe x16, 3 x PCIe x4, 2 x PCIe x1 and 1 x M.2 M key expansion slots
- Support 2 x USB 3.2 Gen2, 4 x USB 3.2 Gen1, 8 x USB 2.0, transfer rate up to 10Gb/s
- Support 3 x RS-232, 1 x RS-232/422/485, 5 x SATA 6Gb/s connector
More Information
|
Brand |
IEI Integration Corp. |
|
Specifications |
| System |
| CPU |
10th/11th Generation LGA1200 Intel Core i9/i7/i5/i3, Celeron and Pentium processors |
| Chipset |
Intel® Q470/Q470E |
| Memory |
Four 288-pin 2933 MHz dual-channel unbuffered DDR4 SDRAM DIMM slots, supporting up to 128 GB of memory |
| Memory Max. |
up to 128 GB memory |
| Cooling method / System Fan |
1 x CPU fan connector (1x4 pin)
2 x System fan connector (1x3 pin) |
| Storage |
| Storage |
1 x M.2(NGFF): M-key 2242/2280 (PCIe Gen3 x2, SATA) |
| |
5 x SATA: 6Gb/s (RAID 0/1/5/10 supported) |
| I/O Interface |
| Display Output |
1 x Display Port: up to 4096 x 2304 @ 60 Hz |
| |
1 x HDMI: up to 4096 x 2304 @ 30 Hz |
| |
1 x VGA: up to 1920 x 1080 @ 60 Hz |
| Ethernet |
3 x LAN-
LAN1: Intel® I225V 2.5GbE controller
LAN2: Intel® I225V 2.5GbE controller
LAN3: Intel® I225V 2.5GbE controller |
| Audio |
1 x Front Audio: 2x5 pin, p=2.54 |
| |
1 x HD Audio: Realtek ALC888S HD Audio codec supports 7.1-channel |
| |
1 x Line-in(CD/DVD or other audio source input port) |
| |
1 x Line-out(connect this port to headphone or speaker) |
| |
1 x Mic(connect this port to microphone) |
| I/O Interface |
1 x DIO: 12-bit digital I/O (2x7 pin, p=2.0) |
| |
1 x External RS-232: DB-9 |
| |
2 x External USB 2.0: Type-A |
| |
2 x External USB 3.2 Gen1x1: 5Gb/s (Type-A) |
| |
2 x External USB 3.2 Gen2x1: 10Gb/s (Type-A) |
| |
2 x Internal RS-232: 2x5 pin, p=2.54 |
| |
1 x Internal RS-422/485: 1x4 pin, p=2.0 |
| |
6 x Internal USB 2.0: 2x4 pin, p=2.54 |
| |
2 x Internal USB 3.2 Gen1x1: 2x10 pin, p=2.0 |
| Expansion |
1 x M.2(NGFF): M-key 2242/2280 (PCIe x2, SATA) |
| |
2 x PCIe x1 |
| |
2 x PCIe x16(x8 signal) |
| |
3 x PCIe x4 |
| Other Features |
| TPM |
Intel® PTT(TPM 2.0) |
| Power |
| Power Consumption |
[email protected], [email protected], [email protected], [email protected]
(Intel® Core™ i5-10500TE CPU with four 8 GB 2933 MHz DDR4
DIMMs) |
| Power Supply |
ATX/AT power supply
Support AT/ATX mode
ErP/EuP compliant |
| Environment |
| Operating Temperature |
0°C ~ 60°C |
| Storage Temperature |
-30°C ~ 70°C |
| IMBA-Q471-R10 |
ATX motherboard supports LGA1200 Intel® 10th/11th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor, DDR4, triple independent displays, triple 2.5GbE LAN, pure PCIe slots，M.2, USB 3.2, SATA 6Gb/s, HD Audio and RoHS |
|
