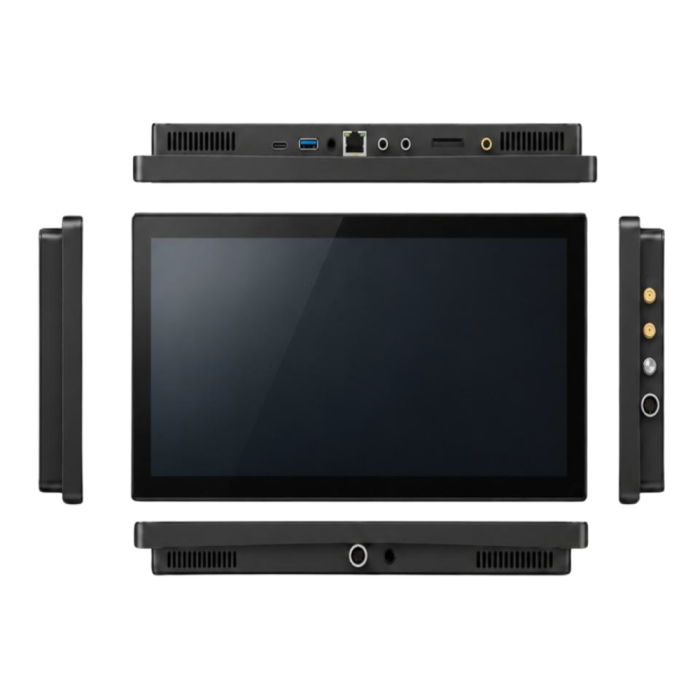

MFC-2152D 21.5" Android Vehicle Display
21.5-inch Full HD Android vehicle display with integrated LTE, Wi-Fi 6, Bluetooth 5.4 and GNSS connectivity.
Key Features:
- 21.5-inch Full HD a-Si TFT-LCD
- RK3576 octa-core processor with 4GB memory and 64GB eMMC
- Android 14 operating system
- Integrated LTE Cat 4, Wi-Fi 6, Bluetooth 5.4 and GNSS
- -20°C to +70°C operation with 9-36V DC input
Description
Product Overview
The Tekdis MFC-2152D is a 21.5-inch Full HD Android display for rail, bus and vehicle installations. Its integrated RK3576 platform combines an octa-core processor, 4GB memory, 64GB eMMC storage and Android 14 with LTE Cat 4, Wi-Fi 6, Bluetooth 5.4 and multi-constellation GNSS connectivity. A 9-36V DC input, -20°C to +70°C operating range and VESA 200 x 200mm mounting support deployment in transport and other demanding mobile environments.
Key Features
21.5-inch Full HD Display
- 1920 x 1080 native resolution and 16:9 aspect ratio
- 450-nit brightness with 1000:1 contrast ratio
- 178° horizontal and vertical viewing angles
- 4mm tempered cover glass with anti-glare coating
Integrated Android Computing
- Rockchip RK3576 with four Cortex-A72 and four Cortex-A53 CPU cores
- 4GB system memory and 64GB eMMC storage
- Android 14 operating system
- Display signal rotation through 180°
Wireless and GNSS Connectivity
- Quectel EG25-G LTE Cat 4 module
- Wi-Fi 6 (802.11ax) and Bluetooth 5.4
- GPS, GLONASS, BDS and Galileo support
- Three SMA antenna connectors for 4G and GNSS
Vehicle-ready Power and Mounting
- 9-36V DC input through an M12 connector
- Power consumption of 32W or less
- VESA 200 x 200mm mounting pattern
- -20°C to +70°C operating temperature
I/O and Audio
- USB 3.0, USB 2.0 and Gigabit Ethernet
- LOOP OUT and PA OUT audio connections
- Two integrated 5W speakers
- SIM slot and dual DC jacks
Download
More Information
| Brand | Tekdis | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specifications |
|
Ordering Information
MFC-2152D
21.5-inch Full HD Android display with RK3576 processor, 4GB memory, 64GB eMMC, LTE Cat 4, Wi-Fi 6, Bluetooth 5.4 and GNSS
