microSD Cards
- Manufactured with industrial SuperMLC technology
- Excellent endurance
Description

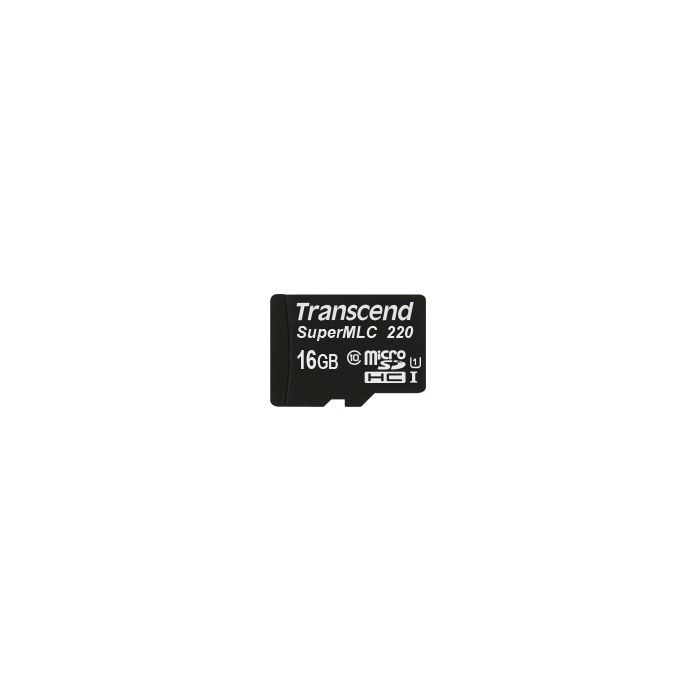

microSD Card
· Suitable for wide-temperature application
· SuperMLC technology allows MLC NAND to act as SLC NAND
· Built-in ECC and Wear-levelling algorithm ensure reliable data transfer
· Mechanical write-protect switch
· Voltage detect function protects saved data
Download
More Information
| Specifications |
Dimensions (Max.) 11 mm x 15 mm x 1 mm (0.43" x 0.59" x 0.04") Form Factor microSD flash card
Flash Type SuperMLC Capacity 4 GB/ 8 GB/ 16 GB
Operating Voltage 2.7V ~ 3.6V Drop Test 1.5m free fall Operating Temperature -40°C (-40°F) ~ 85°C (185°F) Storage Temperature -40°C (-40°F) ~ 85°C (185°F) Humidity 0% ~ 95% Shock Acceleration: 490 m/s² (standard holding time: 11 ms, semi-sine wave, velocity change: 3.44 m/s) Vibration (Operating) 20 G (peak-to-peak), 20 Hz ~ 2,000 Hz (frequency)
Power Consumption (Max.) 0.72 watt(s)
Read Speed (Max.) 85 MB/s Write Speed (Max.) 65 MB/s Terabytes Written (Max.) 600 TB Note Speed may vary due to host hardware, software, usage, and storage capacity. |
|---|
