MioWORK L1000 Series 10.1" IP67 Industrial Android Tablet

SKU: L10xx

MioWORK F740s series, handheld rugged tablet

Key Features:

  • 7-inch capacitive touch panel with anti-glare coating
  • IP54 water & dust proof, up to 1.8m drop & 20G shock resistant
  • 4 types of active in-vehicle cradles
  • 4G LTE, WIFI connected
  • Android™ 9.0 (GMS)
  • Dual-satellite system – GPS & GLONASS
  • NFC, HF RFID data capture
  • Integrated camera
  • 10 hrs+ battery life

Description

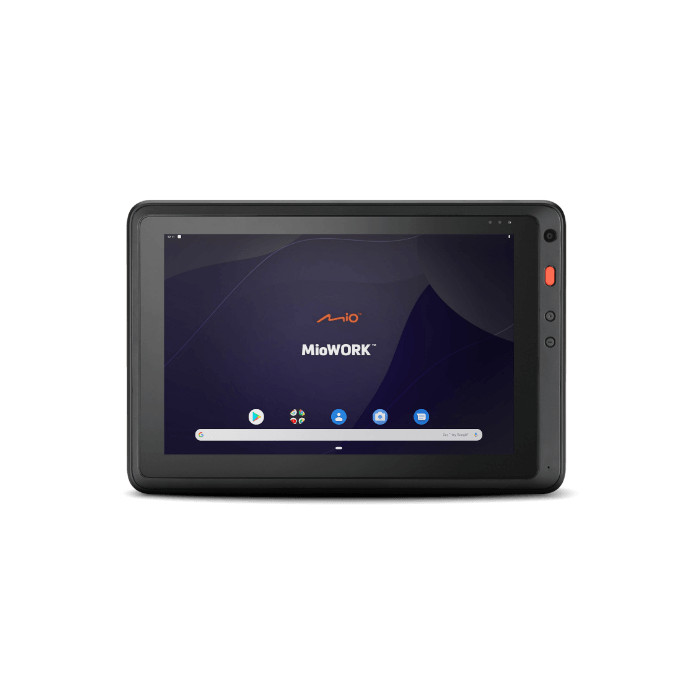

The all-new MioWORK L1000 series, with an IP67 design and 1.2m drop resistance, is an ideal solution for field workforces in outdoor environments. The large and clear 10-inch touch display can be used with wet fingers and gloves*, making it suitable for a wide range of applications. The L1000 series also includes an ultra-fast 1D/2D BCR imager and enhanced front/rear auto-focus cameras with 8 megapixels to help you work efficiently and without missing a beat. The flexible configuration slot, designed for field service, hospitality, mobile POS, and warehousing scenarios, includes I/O port options such as RS232, HD video output, and LAN to accommodate a variety of usage scenarios.

*Depending on glove type and material thickness.

Key Features:

  • 10.1-inch capacitive touch panel with anti-fingerprint
  • Android Enterprise Recommended (AER)
  • IP67 water & dust resistant, 1.2m drop-proof
  • 1D/2D barcode scanner*
  • 4G LTE*, WiFi connected
  • Android™ 9.0 (GMS)
  • GPS*
  • NFC, HF RFID data capture
  • Integrated camera
  • 8 hrs+ battery life, hot-swappable
    * Optional

Download

* You have to Login or Register to download this file

More Information

Brand Mio
Specifications
Display 10.1" 1280x800 IPS (600 nits)
Touch Panel Capacitive multi-touch with optical bonding, glove support & water resistance, anti-fingerprint coating
Platform Qualcomm® Snapdragon™ SDM450 Octa-core, 1.8GHz
OS Android™ 9.0 (GMS)
Memory
  • L1000 / L1005: 2GB RAM / 16GB ROM
  • L1040 / L1045: 2GB RAM / 32GB ROM
Expansion MicroSD slot (up to 128GB)
Wireless Interface
  • IEEE 802.11 a/b/g/n/ac/d/h/i/k/r/v/w (2.4GHz & 5GHz) ; WEP, WPA/WPA2 PSK, 802.11x EAP security standard, WIFI Direct®
  • Bluetooth® 4.2 BLE
  • L1040 / L1045: GPS (including AGPS) + GLONASS, simultaneously tracking
  • L1040 / L1045: LTE Cat.6 (3G/2G fallback*)
    EMEA & Australia: LTE FDD Band 1/2/3/4/5/7/8/20/28; WCDMA Band 1/2/4/5/8; GSM 850/900/1800/1900MHz
    North America: LTE FDD Band 2/4/5/7/12/13/14/17/25/26/66/71; WCDMA Band 2/4/5
NFC
  • NFC: MiFare®, FeliCa
  • RFID (HF): ISO14443A&B, ISO15693
Sensor L1000 / L1005:
  • Accelerometer (G sensor) - auto rotation
  • Gyro
  • Ambient light sensor
  • Vibration motor

L1040 / L1045:
  • Accelerometer (G sensor) - auto rotation
  • Gyro
  • Ambient light sensor
  • Vibration motor
  • eCompass
  • Barometer
  • Thermal sensor
BCR L1005 / L1045: 1D/2D Laser (Honeywell N6603 ER)
Camera Rear: 8 megapixels, autofocus with flash LED
Front: 8 megapixels, autofocus
Physical Interface
  • MicroSD slot (up to 128GB capacity)
  • L1040 / L1045: MicroSIM slot (SIM 1) and eSIM** (SIM 2)
  • USB Type-C 2.0 (host); USB Type A 2.0 (host)
  • 10-pin pogo pin connector (charging & data transmission)
  • Built-in mic x2 (supports noise cancellation)
  • Built-in speaker x1
  • Power DC jack (12V/2A)
  • Expansion I/O adapter**: HD video output + Power DC jack or RJ45 LAN + RS232
Buttons
  • Top: power
  • Front: BCR, programmable button x2 (default: volume +/-)
  • Soft buttons: on-screen Android™ navigation keys
Battery
  • 5,500mAh Li-ion rechargeable battery (hot-swappable, 250mAh backup battery)
  • Battery life 8 hours + depending on usage (charging status on screen)
Mechanical Design 100 x 200mm VESA mount compatible
Environment
  • Antimicrobial chassis
  • IP67 and MIL-STD-810G 1.2m/3.9ft drop resistant
  • -20° to +50°C (-4° to +122°F) operating temperature
  • -30° to +70°C (-22° to +158°F) storage temperature
  • Humidity: 0 ˜ 95%, non-condensing
  • Altitude: Operating: 0 ˜ 4,572m (15,000ft)
Certification CE/CB, FCC/IC, RCM, EAC, UL, NBTC, BQB, ROHS, WEEE
Software MiTAC Mobile Device Management (MiDM), MiLock (Kiosk Launcher) ready; SOTI MobiControl compatible
Warranty 12 months (extended warranty available)
Weight 840g (29.7oz)
Dimensions 272.9 x 182.3 x 7.9/18.7mm (10.74 x 7.18 x 0.31/0.74")
Remarks * Region dependent
** Optional

Note: no guaranteed Android version updates after Oct-21; no guaranteed security updates after Sep-25; no guaranteed telephone or online support after Sep-25.
