MPC102-845

SKU: MPC102-845

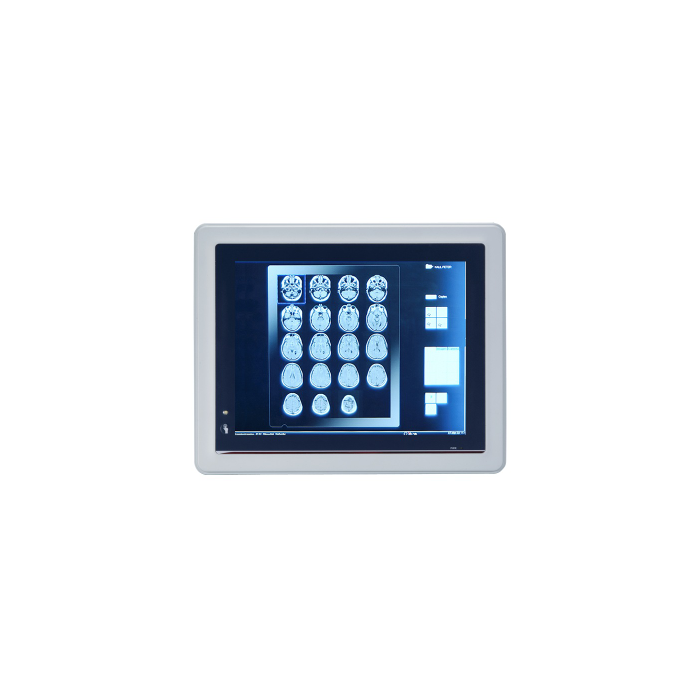

10.4" XGA TFT Fanless Medical Grade Touch Panel Computer with Intel® Celeron® Processor N3060

Datasheet

Description

10.4" XGA TFT Fanless Medical Grade Touch Panel Computer with Intel® Celeron® Processor N3060

· 10.4" XGA TFT LCD display with LED backlight

· Fanless design with Intel® Celeron® processor N3060

· 2 GbE LANs, 4 USB and 2 COM

· Plastic and IP65-rated front bezel

· Supports RFID (optional)

· External AT/ATX mode selection switch

· Easy access storage design

· Supports panel mount, wall mount, VESA arm and desktop stand

· 4th EN 60601-1 (ESD contact 8KV, air 15KV), CE and FCC certified

Data Sheet

Specifications

LCD Panel	10.4" XGA TFT 350 nits 1024 x 768 pixels
CPU	Intel® Celeron® processor N3060 up to 2.48 GHz
Chipset	SoC integrated
System Memory	1 x 204-pin SO-DIMM DDR3L-1600, up to 8GB
BIOS	AMI
COM	1 x RS-232 1 x RS-232/422/485 (default RS-232)
USB	2 x USB 2.0 2 x USB 3.0
Ethernet	2 x 10/100/1000 Mbps (Intel® i211-AT)
Display	N/A
Audio	1 x Audio (Line-out)
Camera	N/A
Optical Drive	N/A
Storage	1 x 2.5" SATA HDD (9.5 mm height) 1 x mSATA
Expansion	1 x Full-size PCI Express Mini Card slot with mSATA 1 x Full-size PCI Express Mini Card slot with SIM
Others	1 x Switch for power on/off 1 x AT/ATX mode selection switch
Touchscreen	Resistive type
Front Bezel	IP65, NEMA 4 rugged protection, plastic front bezel
Power Consumption	32W
Power Supply	AC version: 100 to 240 V AC-DC, 65W power adapter DC version: 9 to 36 VDC with over current protection fuse
Watchdog Timer	255 levels, 0 to 255 sec.
Operating Temperature	0°C to +40°C (+32°F to +122°F)
Relative Humidity	20% to 90% @ +40°C; non-condensing
Vibration	2G, 5 - 500Hz, random for SSD
Dimensions (W x D x H)	292.5 x 45.8 x 235.8 mm (11.52" x 1.80" x 9.28")
Weight (net/gross)	1.8 kg (3.96 lb)/3 kg (6.61 lb)
Certifications	4th EN 60601-1 (ESD contact 8KV, air 15KV), CE and FCC
EOS	Windows® 10, Windows® 8.1, WE8S, Windows® 7, WES7
Mounting	VESA arm Panel mount Desktop stand Wall mount
