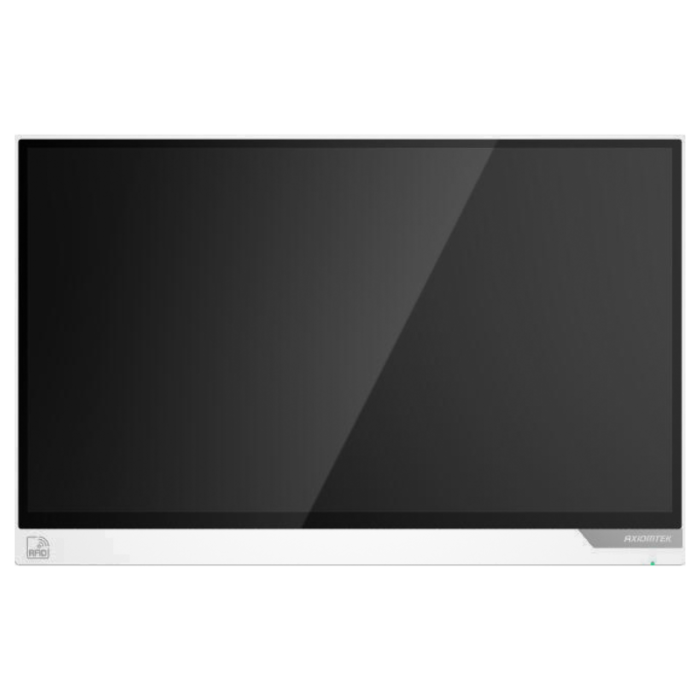

MPC241 24” Medical Grade Fanless Panel PC
Axiomtek
MPC241 24” Medical Grade Fanless Panel PC
Intel® Core Ultra 5 or Ultra 7, full HD display with projected capacitive (PCAP) multi-touch
Key Features:
- AI acceleration with Intel® Core Ultra 5 or Ultra 7 processor
- 24” full HD display with projected capacitive (PCAP) multi-touch screen
- IP65 front bezel and IPX1 full enclosure design
- High-speed DDR5 5600 SODIMM, up to 96GB
- 1 PCIe Gen 4 Slot for integrating add-on modules
- Streamlined cable management for a cleaner and more organised set-up
- RFID reader and COM port integration (optional)
More Information
|
Brand |
Axiomtek |
|
Specifications |
|
Category
|
Specification
|
|
Processor (CPU)
|
Intel® Core Ultra 7 / Ultra 5 (Series 1)
|
|
Memory
|
2 × DDR5-5600 SO-DIMM, up to 96 GB
|
|
Display
|
24” Full HD LCD with 10-point projected capacitive (PCAP) multi-touch
|
|
Resolution
|
1920 × 1080
|
|
Brightness
|
350 nits
|
|
Graphics Output
|
1 × HDMI 2.1
|
|
USB Ports
|
4 × USB 3.2 Type-A1 × USB 3.2 Type-C (DP Alt Mode, PD 15W)
|
|
Networking
|
2 × 100/1000/2500 Mbps Ethernet, 1.5KV isolation
|
|
Audio
|
2W speakers, HD codec (Realtek ALC888s), Mic-in/Line-out
|
|
Serial Ports
|
2 × RS232 COM ports (optional, 1.5kV isolation)
|
|
Storage
|
2 × M.2 Key M 2280 slots (NVMe support)
|
|
Expansion Slot
|
1 × PCIe Gen 4
|
|
Security
|
TPM 2.0 onboard
|
|
Optional Features
|
RFID card reader, COM ports
|
|
Power Input
|
24V DC
|
|
Power Consumption
|
150W
|
|
Dimensions (W×D×H)
|
552 mm × 353.5 mm × 62 mm
|
|
Operating Temp.
|
0 ~ 40 °C (Operating)
|
|
Storage Temp.
|
0 ~ 50 °C
|
|
Humidity
|
10%–95% @+40°C (Operating), 95% @+40°C (Storage)
|
|
Certifications
|
EN 60601, FCC Part 18, Class B
|
|
Operating System
|
Windows 10 IoT Enterprise / Windows 11 IoT Enterprise
|
|
Enclosure Protection
|
IP65 front bezel, IPX1 full enclosure
|
|
