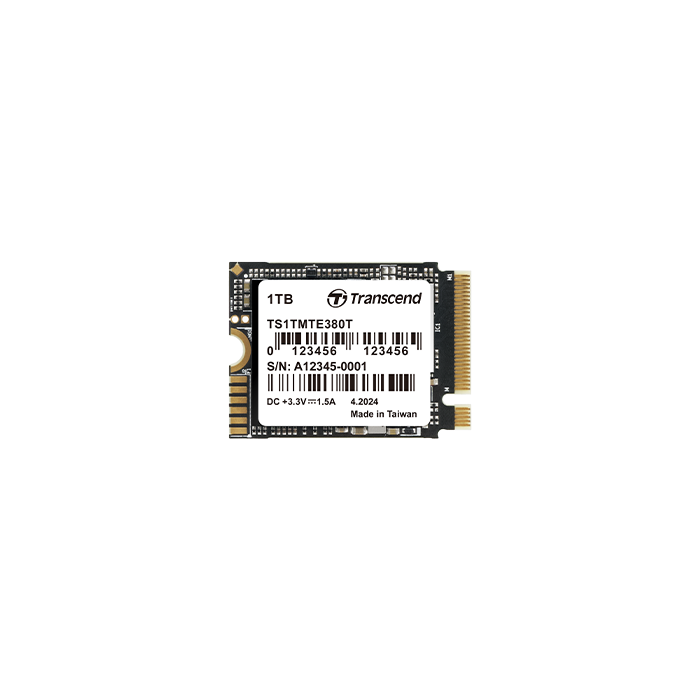

MTE380T & MTE380T-I PCIe M.2 SSDs
Transcend's M.2 SSD MTE380T is a self-encrypting drive (SED) that complies with the TCG Opal 2.0 standards.
Key Features:
- NVMe 1.4 and PCIe Gen 4 x4 compliant for high-speed performance
- Advanced LDPC ECC, wear-levelling, garbage collection, and thermal throttling
- Supports TRIM, NCQ, S.M.A.R.T., and NVM commands for reliability and monitoring
- TCG Opal and IEEE 1667 compliant with optional DevSleep power saving
- Compact M.2 30mm form factor ideal for space-constrained systems
- High endurance rated at 3K P/E cycles
- Power Shield protection with corner bond, gold fingers, and anti-sulphur design
- Extended and wide temperature options from -40°C to 85°C
Description
Product Overview
The Transcend MTE380T and MTE380T-I are industrial-grade embedded M.2 SATA solid-state drives designed for reliable storage in harsh environments, embedded systems, industrial automation, edge computing, surveillance recorders, and other demanding applications. Built with high-quality 3D NAND flash, these SSDs deliver solid performance and endurance while maintaining low power consumption. Available in extended and wide temperature variants, they are suited for applications where consistent performance, data integrity and long service life are essential under extreme temperature, vibration or shock conditions.
Key Features
Industrial-Grade Performance
-
M.2 2280 SATA III interface for broad compatibility with embedded and industrial platforms
-
High sequential read and write performance for a responsive system and data access
-
Balanced performance and endurance ideal for industrial control, data logging and embedded edge systems
-
Multiple capacity options to suit application demands
Reliability and Durability
-
3D NAND flash with advanced error correction, wear-levelling and bad block management to extend service life
-
Low power consumption suitable for energy-sensitive designs and mobile or embedded applications
-
Enhanced firmware to support stable operation across long duty cycles
-
Strong endurance suitable for write-intensive workloads such as continuous recording or logging
Rugged Operating Specifications
-
The extended temperature variant supports operation from –20 °C to 75 °C
-
Wide temperature variant supports operation from –40 °C to 85 °C, making it suitable for extreme conditions
-
Shock and vibration resistance designed for industrial machinery, transportation and mobile systems
-
M.2 2280 form factor enables compact integration in small form factor designs
Data Protection and Firmware Features
-
Error correction and data integrity features to protect against bit errors in heavy workloads
-
Dynamic thermal throttling to manage performance under elevated temperature conditions
-
Drive health monitoring to support predictive maintenance
-
Support for standard SMART commands and status reporting
Dimensions Drawings
Download
More Information
| Brand | Transcend | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specifications |
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||
Ordering Information
256GB
- TS256GMTE380T
- TS256GMTE380T-I
512GB
- TS512GMTE380T
- TS512GMTE380T-I
1TB
- TS1TMTE380T
- TS1TMTE380T-I
