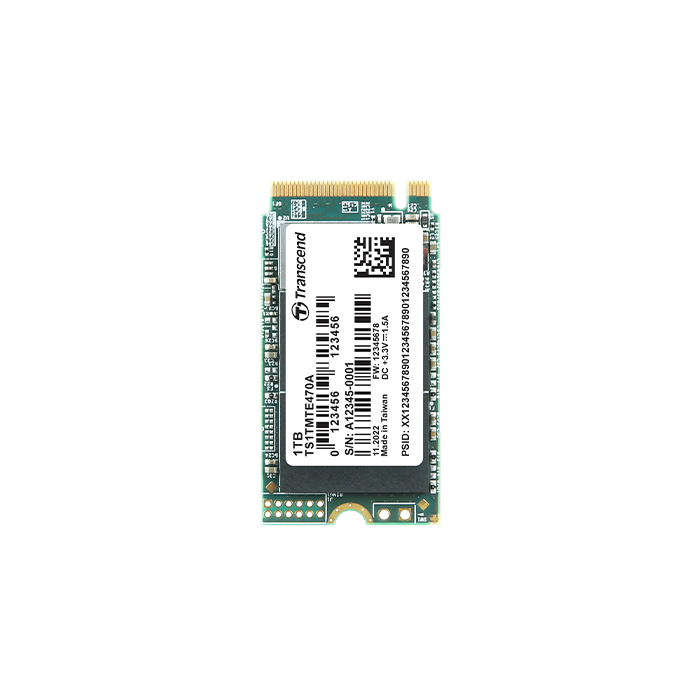

MTE470A PCIe M.2 SSD

Transcend's M.2 SSD MTE470A is a self-encrypting drive (SED) that meets TCG Opal 2.0 specifications. Data is safeguarded by hardware-based AES 256-bit encryption and sector-specific LBA (Logical Block Address) permissions.

Transcend's M.2 SSD MTE470A is made up of 112 layers of 3D NAND flash and a PCI Express (PCIe) Gen 3 x4 interface, resulting in unprecedented transfer speeds. The MTE470A is fortified to withstand demanding industrial applications thanks to its 30" gold finger PCB, Corner Bond technology, and anti-sulfur resistor. The MTE470A has been thoroughly tested in-house and can operate in temperatures ranging from -20°C to 75°C. Its M.2 2242 form factor is small and lightweight, making it ideal for mobile computing applications.

Key Features:

Firmware:

• Supports NVM command
• Dynamic thermal throttling
• Built-in LDPC ECC (Error Correction Code) functionality
• Advanced Global Wear-Leveling and Block management for reliability
• Advanced Garbage Collection
• Early Move
• Supports S.M.A.R.T. function to conduct health monitoring, analysis, and reporting for storage devices
• TRIM command for better performance
• Full drive encryption with Advanced Encryption Standard (AES)
• Compliant with TCG Opal specifications and IEEE 1667 standards

Hardware:

• Compliant with RoHS 2.0 standards
• Compliant with NVM Express specification 1.3
• Compliant with PCI Express specification 3.1
• Space-saving M.2 form factor (42mm) – ideal for mobile computing devices
• PCIe Gen 3 x4 interface
• Endurance: 3K P/E cycles (Program/Erase cycles) guaranteed
• Key components fortified by default with Corner Bond technology
• 30µ" PCB gold finger
• Anti-sulfur technology implemented to prevent sulfurization in the environment
• Power Shield (PS) to ensure data transfer integrity and minimize data corruption in the drive during an abnormal power outage
• Promised operational reliability in an extended temperature range (from -20°C to 75°C)
• Supports Transcend Scope Pro software
