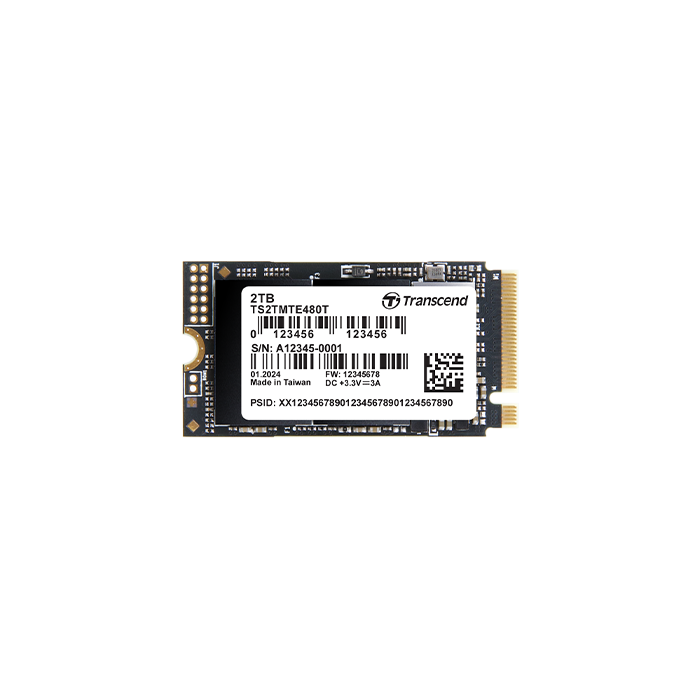

MTE480T & MTE480T-I NVMe PCIe Gen4x4 M.2 SSD
Transcend's M.2 SSD MTE480T is a self-encrypting drive (SED) that complies with the TCG Opal 2.0 standards.
Key Features:
- NVMe support with commands like NVM, TRIM, NCQ, S.M.A.R.T. health monitoring
- Dynamic thermal throttling and advanced LDPC error correction
- Global wear levelling, block management and garbage collection for long-term reliability
- Full drive encryption with AES and compliance with TCG Opal and IEEE 1667
- Optional low-power DevSleep mode
- NVMe 1.4 and PCIe 4.0 compliant in a compact M.2 42 mm design
- 3K P/E cycle endurance with reinforced components
- Power Shield protection during outages with extended and wide temperature options
Description
Product Overview
The Transcend MTE480T / MTE480T-I is an industrial-grade embedded M.2 NVMe SSD designed for high-performance, high-reliability storage in edge computing, industrial computing, in-vehicle systems, and embedded platforms. It uses 112-layer 3D NAND flash memory and connects over a PCIe Gen4 x4 interface to deliver top-tier performance. Available in capacities from 256 GB up to 2 TB, it supports extended and wide temperature variants for use in demanding environments — from standard industrial systems to rugged mobile or transportation applications.
The drive combines cutting-edge speed, robust endurance, and features designed for reliability and security, making it well-suited for applications that require high data throughput, long-term stability, and secure data handling.
Key Features
High Performance Storage
-
PCIe Gen4 x4 NVMe interface for high-speed data transfer
-
Sequential read speeds up to 5,000 MB/s and write speeds up to 4,100 MB/s
-
Up to 500,000 IOPS random read and 415,000 IOPS random write
-
Capacities ranging from 256 GB to 2 TB
Industrial-Grade Reliability and Durability
-
112-layer 3D NAND flash for higher endurance and longer service life
-
Global wear-levelling, bad block management and LDPC ECC for data integrity
-
Power-shield protection against unexpected power loss
-
MTBF rated at 3,000,000 hours
-
High endurance with TBW ratings up to 2,640 TB (for 2 TB model)
Advanced Security Features
-
AES-256 hardware encryption
-
Self-encrypting drive capability
-
Support for TCG Opal 2.0 and IEEE 1667 security standards
Rugged Operating Specifications
-
M.2 2242 form factor (42 mm length) for compact embedded designs
-
Operating temperature options:
-
Standard version: –20 °C to 75 °C
-
MTE480T-I wide-temperature version: –40 °C to 85 °C
-
-
Shock resistance up to 1500 G and vibration resistance up to 20 G
-
Low power consumption suitable for compact and in-vehicle platforms
Firmware and Feature Support
-
DRAM-less architecture with optimised firmware
-
Advanced garbage collection
-
Dynamic thermal throttling
-
S.M.A.R.T. monitoring
-
Support for NVMe and NVM command sets
Dimensions Drawings
Download
More Information
| Brand | Transcend | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specifications |
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Ordering Information
256GB
- TS256GMTE480T
- TS256GMTE480T-I
512GB
- TS512GMTE480T
- TS512GMTE480T-I
1TB
- TS1TMTE480T
- TS1TMTE480T-I
2TB
- TS2TMTE480T
- TS2TMTE480T-I
