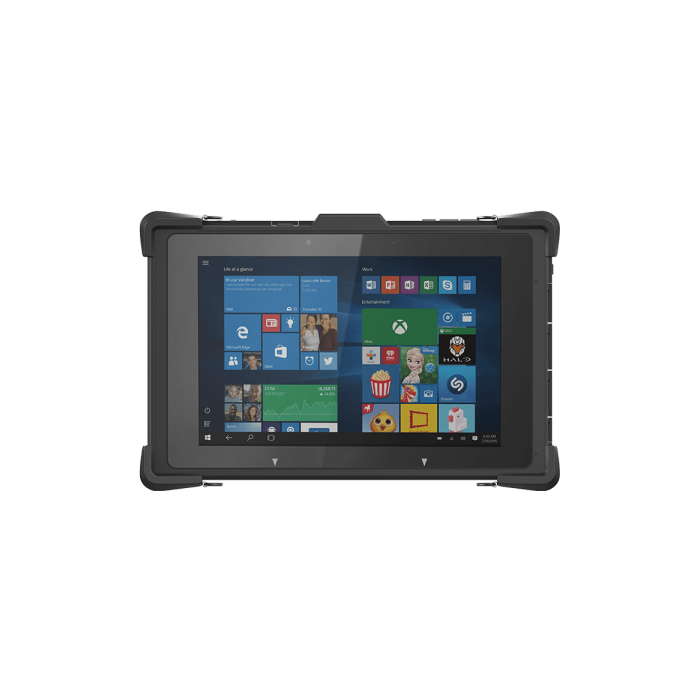

NB31 8" Rugged Tablet

End of Life
MSi (Micro-Star INT'L CO., LTD)
SKU: NB31

8-inch Fully Rugged Tablet with High-Speed Connectivity

Key Features:

  • MlL-STD 81OG tested, 5 ft. / 1.5m drop proof.
  • IP65, one-meter tumble test.
  • Hot swap battery, 11850mAh/3.7V battery pack.
  • Windows® 10 loT Enterprise.
  • Firmware TPM 2.0.
  • Optional finger print authentication support for biometric security system.
  • Optional vehicle dock, office dock, and battery charger.
  • Optional briefcase handle, stylus, hand strap.
  • Optional 4G LTE multi-carrier mobile broadband.
  • Optional RFID/NFC/2D Honeywell barcode readers for data acquisition.
Datasheet

Description

NB31 8" Rugged Tablet



  • MlL-STD 81OG tested, 5 ft. / 1.5m drop proof.
  • IP65, one-meter tumble test.
  • Hot swap battery, 11850mAh/3.7V battery pack.
  • Windows® 10 loT Enterprise.
  • Firmware TPM 2.0.
  • Optional fingerprint authentication support for biometric security system.
  • Optional vehicle dock, office dock, and battery charger.
  • Optional briefcase handle, stylus, hand strap.
  • Optional 4G LTE multi-carrier mobile broadband.
  • Optional RFID/NFC/2D Honeywell barcode readers for data acquisition.

Download

Datasheet

More Information

Brand MSi (Micro-Star INT'L CO., LTD)
Specifications
  • Software
  •  Windows®10 loT Enterprise
  • Durability
  •  MIL-STD-810G (Multiple 5'/1.5m Drops) 26 times all corners and sides with single tablet while operating
     IP65
     1000 times x 1 m tumble test
     Steel ball drop test, 25 mm diameter rounded end steel weight of 250 gm from 50cm. w/ screen protector
     Glass screen protector
     Operating Temperature: -10°C ~ 50°C
  • CPU
  •  Intel® Atom TM X5-Z8550 Processor
  • Storage & Memory
  •  LPDDR3 4GB on board, MAX support 8G
     64GB or 128GB eMMC
  • Display
  •  8" WUXGA 800x1280 IPS 370 nits /470 nits (option)
  • Audio
  •  1 Digital microphone
     2 integrated speaker
  • Input
  •  10-point multi-touch and capacitive stylus, support glove mode and wet-touch mode
     4 Physical buttons (power, vol+, vol-, barcode scanner key)
  • Cameras
  •  2MP front camera
     8MP rear camera, Auto Focus, Flash
  • Wireless
  •  Optional Sierra EM7455 (North America/EMEA]
     GPS (onboard)
     Wi-Fi 802.11 a/b/g/n/AC
     Bluetooth® 4.1
  • Interface
  •  Docking connector
     Full size USB 3.0 x1
     Full size USB 2.0 x1
     Replaceable DC jack
     Micro HDMI
     3.5mm Audio jack
     SIM Card Reader
     Micro SDXC Card Reader
     Reset hole
  • Power Supply
  •  Backup Battery / Hot swappable external battery
     Battery: 3.7V, 11850 mAh / 43.8Wh
     Battery operation: up to 10 hours
  • Security
  •  Optional Integrated Fingerprint reader
     Trusted Platform Module [ TPM 2.0 ]
     Optional NFC/ RFID
  • Dimensions & Weight
  • - 9.16" x 5.9" x 0.87" [232.6mm x 150mm x 22mm]
    - 1.87 lbs [850g]
  • Collaboration
  •  Optional 1D/2D Barcode Reader
     9 Axis MEMS sensor (Accelerometer, eCompass, Gyroscope)
     Ambient Light Sensor
     Proximity Sensor
  • Accessories
  •  AC Adapter 65W (19V / 3.42A)
     Hand strap with stylus holder
     Optional Capacitive stylus pen
     Optional Vehicle Dock
     Optional Office Dock
     Optional Battery Chargers
