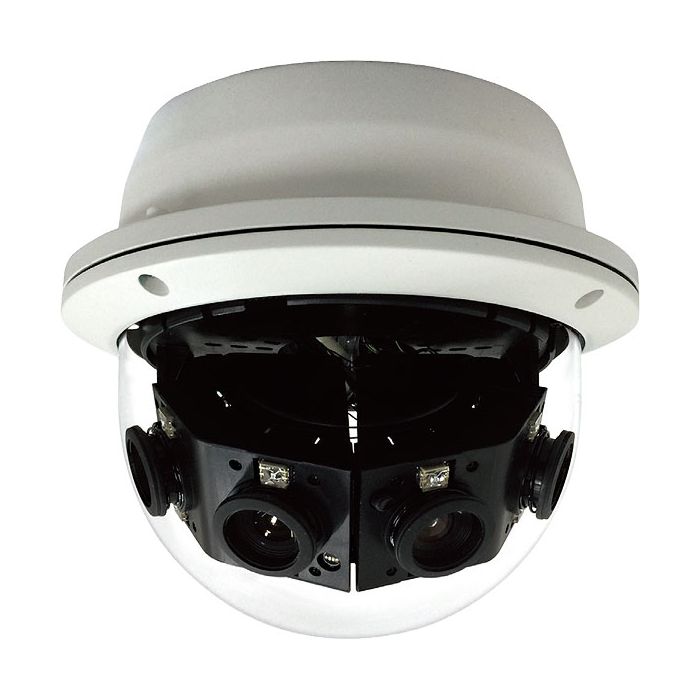

NCp-501

In stock
SKU:
NCp-501

Model Code: NCp-501

- High Resolution 180°Coverage
- Smart IR distance effective up to 30M
- Single IP Address Output for ease of integration with VMS

Enquire Now

Please fill in your details below, we will get back to you as soon as possible


Camera General Information

Image Sensor: 20MP, 4pcs 1/1.8" 5MP CMOS progressive sensor

Coverage: 180° Lens: 4 Fixed Lens 5.5mm F1.8 FOV: TBD Pan/Tilt Pan: 0° ~ 355° / Tilt 0° ~ 180°

Smart IR: Effective distance is up to 30M (98ft) IR

Wavelength: 850nm (8pcs SR LEDs) Day and Night: Yes

WDR: Support Minimum: Illumination B/W 0 lux / Color 0.1 lux @F1.8 1/15 sec Electronic Shutter Speed: Auto/Manual 1/3.75~1/10000 Gain Control: Auto/Manual Backlight Compensation: Yes White Balance Mode: Auto/Manual Image Setting: Brightness, Contrast, Staturation, Sharpness, Mirror, Flip

Video

Video Comprssion: H.265/H.264

Video Streaming: Triple Streaming

Video Quality: VBR/CBR

Frame Rate: 20MP @30fps

Network

Interface: 10/100 Mbps Ethernet, RJ45 Support Protocols: TCP/IP, UDP, ICMP, IPv4, IPv6, SNMP v2c/v3, QoS , HT TP, HT TPS , LDAP (client), SSH, SSL, SMTP, FTP, RTSP, UPnP, DNS, NTP, RTP, RTCP, DynDNS , Zero Configure ONVIF: Profile S, Q, G Users: Live Viewing/Administrator for up to 10 clients Browsers: Internet Explorer, Google chrome, Mozilla Firefox

Event Management

Event Trigger: Motion detection 5x5 areas Tampering detection Notifications: Send message via e-mail or FTP

Power

DC/AC: DC12V/AC24C terminal block PoE: Yes / IEEE 802.3at (PoE+)

General



Weight: 1600g

Dimension: Ø 196 mm x 188.4 mm (H)

Operating Temp.: -40°C ~ 60°C ( -40°F ~ 140°F )

Storage Temp.: -40°C ~ 60°C ( -40°F ~ 140°F )

Humidity: 90%RH (no condensation)

Certification: CE/FCC Vandal Resistance: IK10

Waterproof: IP66

Application: SDK available for application development

Packaging Information

NWT: 1600g GWT: 1750g

Dimension: 230 x 230 x 234mm

We build to order
