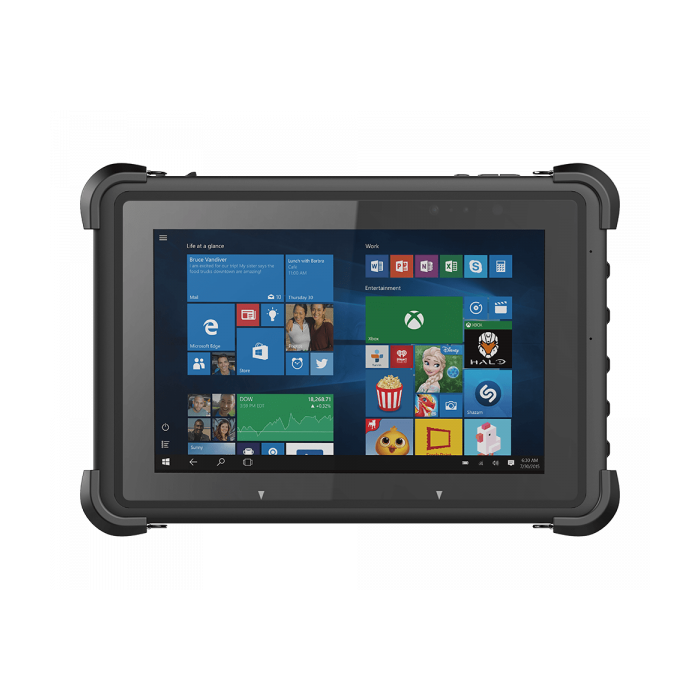

ND53 10.1" Intel Core CPU Rugged Tablet

In stock

ND53 10.1" Rugged Tablet with Intel Core PCU


Enquire Now
Enquire about this product

MlL-STD 81OG tested, 5 ft. / 1.5m drop proof.

IP65, one-meter tumble test.

Hot swap battery, integrated 9447mAh / 7.2V battery pack.

Windows® 10 loT Enterprise.

Firmware TPM 2.0.

10/100/1000 Ethernet port.

Optional finger print authentication support for biometric security system.

Optional vehicle dock, office dock, battery charger.

Optional briefcase handle, stylus, hand strap.

Optional 4G LTE multi carrier mobile broadband.

Optional RFID/2D Honeywell barcode readers for data acquisition.

Optional Intel® RealSense 3D camera to create smart service of Industrial 4.0.

This product is listed in Industrial Automation, Mining, Transport, Mobile Computing, Industrial Tablets

Software             Windows®10 loT Enterprise

Durability             MIL-STD-810G (Multiple 5'/1.5m Drops) 26 times all corners and sides with single tablet while operating


 100 times x 1 m tumble test

  Steel ball drop test, 25 mm diameter rounded end steel weight of 250 gm from 50cm. w/ screen protector

 Glass screen protector

 Operating Temperature: -10°C ~ 50°C

CPU       Intel® Core i7-8500Y Processor

 Intel® Core i5-8200Y Processor

 Intel® Core m3-8100Y Processor

Storage & Memory         LPDDR3 8GB on board, MAX support 16GB

 128GB, 256GB, 512GB or 1TB SSD

 Optional 64GB or 128GB eMMC

Display  10.1" 1200X1920 IPS 550 nits (Typ)

Audio    2 Digital microphone

 2 integrated speaker

Input     10-point multi-touch and capacitive stylus, support glove mode and wet-touch mode

 4 Physical buttons (power, vol+, vol-, barcode scanner key)

Cameras              2MP front camera

 8MP rear camera, Auto Focus, Flash

 Optional RealSense D415 3D Camera

Wireless               GPS Ublox NEO-M8N on board

 Optional Sierra EM7565 or Quectel EM06(North America/EMEA)

 Wi-Fi 802.11a/b/g/n/AC (Intel AC 9260 M.2 2X2)

 Bluetooth® 5.0 (Intel AC 9260 M.2 2X2)

Interface             Docking connector

 2 x Full size USB 3.0

 RJ45 Gigabit Ethernet Port

 Replaceable DC jack

 Micro HDMI

 3.5mm Audio jack

 Micro SIM card reader

 Micro SDXC Card Reader

 Reset hole

Power Supply    AC adaptor 65W (19V/3.42A)

 Backup Battery / Hot swappable external battery

 Battery: 9447mAh (68Wh) or 7.2V 6298mAH (45.3Wh) optional

 Battery operation: up to 13hrs (base on 6 cells)

Security                Fingerprint reader TCEPC1/ D1 or FCU115-1 (Optional)

 Trusted Platform Module [ TPM 2.0 ]

Dimensions & Weight    13.72" x 7.56" x 0.86" [283.4mm x 192.0mm x 21.9mm]

 3.2 lbs (1470g)

Collaboration     Optional Barcode scanner Honeywell N3680/N6683/N6783

 9 Axis MEMS sensor (Accelerometer, eCompass, Gyroscope)

 Ambient Light Sensor

 Proximity Sensor

Accessories        AC Adapter 65W (19V / 3.42A)

 Optional Hand strap with stylus holder

 Optional shoulder strap

 Optional Vehicle Dock

 Optional Office Dock

LED         1 LED With 2 Colors

 Green: Power status LED

 Orange: Battery status LED
