Shop NDiS-B328 i5-7300U 4K Media Player

JavaScript seems to be disabled in your browser. For the best experience on our site, be sure to turn on Javascript in your browser.

End of Life

SKU: NDiS-B328-KI5

Fanless Embedded Computer Powered by Intel® Core™ i5-7300U, SoC Processor

Datasheet

Description

Fanless Embedded Computer Powered by Intel® Core™ i5-7300U, SoC Processor

· Intel® Core™ i5-7300U

· HDMI 4K resolution

· USB 3.0 support

· WLAN support

· Compact and fanless design

Data Sheet

Brand

Nexcom

Specifications

CPU Support	Intel® Core™ i5-7300U SoC processor Dual Core 2.6GHz
Graphic	Intel® integrated HD 620 graphics
Main Memory	2 x 204-pin SO-DIMM sockets, supports DDR4 2133MHz non- ECC,un-buffered memory up to 32G (single socket max. 16GB)
I/O Interface-Front	4 x USB 3.01 x DB9 for RS232 (cable)1 x Storage active LED1 x Power switch with LED

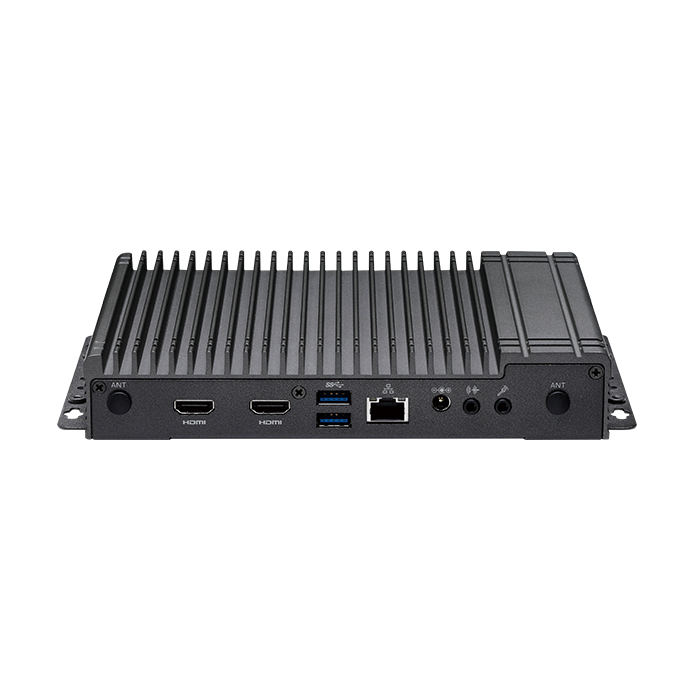

I/O Interface-Rear	1 x DC-in jack, 2.5mm (19V DC)2 x HDMI 1.4 (4K resolution)2 x Antenna hole2 x USB 3.01 x RJ45 with LEDs for Gigabit LAN1 x Line-out1 x Mic-in
Storage Device	1 x 2.5” SATA3 HDD/SSD1 x M.2 2280 SSD, PCIe by 4+ SATA signal
Expansion	1 x M.2 E key 2230 slot, support Wi-Fi
Dimensions	224.34mm (W) x 147.4mm (D) x 35mm (H)
Power Supply	DC power input +19V
Environment	Operating temperature: @ 100% CPU loading and component thermal profile from 0°C ~50°C (with HDD), -20°C~50°C (with SSD)Storage temperature: -20°C~70°CHumidity: 95% (non-condensing)
Certification	CE approvalFCC Class A
Operating System	Win10 64-bit
