NDiS-B336R Fanless Embedded PC Atom x7-E3950

JavaScript seems to be disabled in your browser. For the best experience on our site, be sure to turn on Javascript in your browser.

End of Life

SKU: NDiS-B336R

Fanless Embedded Computer Powered by Quad Core Intel® Atom x7-E3950 Processor, 2.0GHz

Datasheet

Description

Fanless Embedded Computer Powered by Quad Core Intel® Atom x7-E3950 Processor, 2.0GHz

· 6th generation Intel® Atom x7-E3950 processor

· Tripe video output (HDMI/DP support 4K2K resolution)

· Compact and slim design (H: 21.5mm)

· Wide temperature support

· Supports W-Fi, GPS, and 3G module

· Fanless design

Datasheet

Product Data Sheet

User Manual

Brand

Nexcom

Specifications

CPU Support	Quad core Intel® Atom™ x7-E3950 processor, 2.0GHz
Chipset	SoC (codenamed Apollo Lake-I)
Graphics	Intel® HD Graphics 500 series
Main Memory	2 x 204-pin SO-DIMM socket, supports DDR3L 1600MHz non-ECC, Un-buffered memory up to 16GB

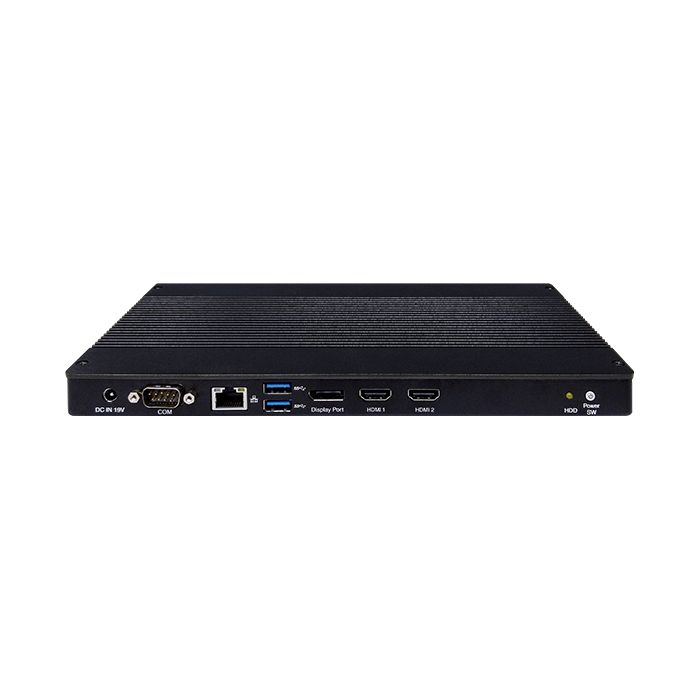

I/O Interface-Front	1 x 19V DC in1 x DB9 for RS-2321 x RJ45 with LEDs 10/100/1000Mbps Ethernet2 x USB3.01 x Display Port2 x HDMI Port1 x HDD LED1 x Power Switch1 x Audio-out1 x MIC-in
I/O Interface-Rear	2 x Antenna Hole for Wi-Fi or TV Tuner3 x USB3.0
Storage	1 x SATA 2.5”
Expansion	1 x mini-PCIe slot (full size)1 x NGFF (M.2) 2230 for optional WLAN1 x SIM Slot
Power Supply	1 x external 65W AC/DC power adapterInput: 100VAC to 240VACOutput: DC+19VDC
Environment	Operating temperature: -10°C to 60°C (SSD) ; 0°C to 40°C (HDD)Storage temperature: -25°C to 80°CHumidity: 10 to 90% (non-condensing)
Certification	CE approvalFCC Class A
Dimensions	259mm (W) x 147mm (D) x 21mm (H)
Operating System	Win10/ Linux
