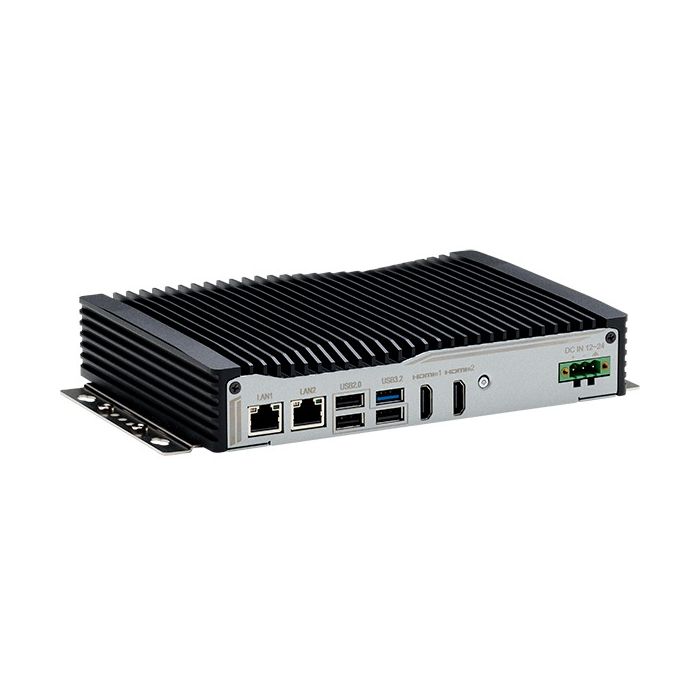

NDiS-B361 Fanless Duro Edge Computer

SKU: NDiS-B361-i3/5/7


Duro Edge Computer Powered by Intel® Core™ i Processor

Key Features:

  • 13th Gen Intel® Core™ i processor
  • 2 x DDR5 SO-DIMM, up to 96GB
  • 2 x HDMI® 1.4 output, up to 4096x2160@30Hz
  • 2 x Intel® LAN port
  • 1 x USB 3.2 Gen 1, 3 x USB 2.0
  • TPM 2.0 for security
  • 1 x M.2 Key B 2242/3052 (PCIe 3.0 x1, USB 3.0, USB 2.0) connector for LTE/5G module
  • 1 x M.2 Key E 2230 (PCIe 3.0 x1/USB 2.0) connector for Wi-Fi module
  • 1 x M.2 Key M 2280, supports NVME,
  • PCIe Gen 3 x4 & SATA signal
  • Support 12V to 24V DC power input
Datasheet

Description

As businesses and public spaces embrace digital transformation, the demand for robust yet efficient technology continues to grow. Organisations require solutions that deliver accurate information, support remote management, and ensure dependable connectivity to maintain a competitive edge in today’s evolving landscape. With advancements in edge computing and its commitment to “AI everywhere”, NEXCOM’s NDiS series is redefining how businesses communicate and interact with their audiences.

Businesses in need of a high-efficiency, AI-capable, fanless edge computer will find the NDiS B361 an excellent solution. Its 13th Gen Intel® Core™ i processors provide exceptional multi-core performance and processing power for AI inference tasks. Selected models also feature Active Management Technology (AMT), enabling remote diagnosis, troubleshooting, and system recovery – even when the unit is powered off or unresponsive. These advanced capabilities make the NDiS B361 ideal for any modern smart parking system.



Download

Datasheet

More Information

Brand Nexcom
Specifications

System
  • Intel® Core™ i7-1365UE processor (embedded), 15W (AMT)
  • Intel® Core™ i5-1345UE processor (embedded), 15W (AMT)
  • Intel® Core™ i5-1335UE processor (embedded), 15W
  • Intel® Core™ i3-1315UE processor (embedded), 15W

Main Memory
  • 2 x DDR5 5200 SO-DIMM, non-ECC, unbuffered, up to 96GB

Graphic & Display
  • Intel® Iris® Xe Graphics and Intel® UHD Graphics
  • 2 x HDMI® 1.4, up to 4096x2160@30Hz
  • EDID support: Emulation capability across 2 discrete HDMI® 1.4 outputs
  • CEC support: Control HDMI® devices with a single remote via HDMI® port 1

Storage device
  • 1 x M.2 Key M 2280 SSD (PCIe 3.0 x4, SATA 3.0)

Expansion
  • 1 x M.2 Key B 2242/3052 (PCIe 3.0 x1, USB 3.0, USB 2.0)
    - Support 5G/LTE module
  • 1 x M.2 Key E 2230 (PCIe 3.0 x1, USB 2.0)
    - Support Wi-Fi module

I/O Interface-Front
  • 1 x Line out
  • 2 x COM Port, supports RS-232/422/485
  • 3 x Antenna hole
  • 1 x EDID button and LED light

I/O Interface-Rear
  • 1 x Power button with LED
  • 2 x HDMI® 1.4, up to 4096x2160@30Hz
  • 1 x 2.5GbE RJ45 port, Intel® I226
  • 1 x GbE RJ45 port, Intel® I219
  • 1 x USB 3.2 Gen 1, Type-A
  • 3 x USB 2.0
  • 12V to 24V DC in

I/O Interface-Internal
  • 2 x 6-pin header for 4 x USB 2.0 port
  • 2 x 9-pin header for COM port RS-232 (Reserved)
  • 1 x 10-pin header for GPIO, 4 x DI, 4 x DO
  • 1 x 4-pin header for 2W/4Ω speaker out
  • 1 x 9-pin header supports Mic in and Line out
  • 1 x 2-pin header for reset

Dimension & Weight
  • System unit
    - Dimensions: 200mm (W) x 140mm (D) x 37mm (H) w/o bracket
    - Net weight: 1.49kg per unit
  • Package information
    - Dimensions: 300mm (W) x 270mm (D) x 205mm (H)
    - Gross weight: 2.75kg (1 unit per carton)

Power Supply
  • DC 12V to 24V input

Environment
  • Operating temperature
    - Ambient with air flow: -20°C~60°C
    - Storage temperature: -20°C~80°C
  • Relative humidity: 0%~90% (non-condensing)
  • Shock protection: 50G peak acceleration, 11ms according to IEC 60068-2-27
  • Vibration protection
    - Random: 2Grms@5Hz~500Hz, IEC 60068-2-64
    - Sinusoidal: 2G@5Hz~500Hz, IEC 60068-2-6

Operating System
  • Windows 11
  • Windows 10, 64bit
  • Linux

Certifications
  • CE Approval (EN 50035 + EN 50032)
  • FCC Class A (Part 15B)
  • LVD (EN 62368-1)

Ordering Information

NDiS B361-i7 (P/N:10W00B36101X0)
Duro Edge Computer, 13th Gen Intel® Core™ i7-1365UE Processor

NDiS B361-i5 (P/N:10W00B36102X0)
Duro Edge Computer, 13th Gen Intel® Core™ i5-1345UE Processor

NDiS B361 (P/N:10W00B36103X0)
Duro Edge Computer

NDiS B361-i3 (P/N:10W00B36100X0)
Duro Edge Computer, 13th Gen Intel® Core™ i3-1315UE Processor
